Transport and storage
HBS 05 should be transported and stored vertically in a
dry place.
NOTE
Ensure that the heat pump cannot fall over
during transport.
Assembly
■
It is recommended that HBS 05 is installed in a room
with existing floor drainage, most suitably in a utility
room or boiler room.
■
The brackets for HBS 05 are screwed to the wall using
the enclosed screws. Mounting template enclosed.
■
Route pipes so they are not fixed to an internal wall
that backs on to a bedroom or living room.
■
Ensure that there is approx. 800 mm free space in front
of and 400 mm above the product for any future ser-
vice. Ensure that there is sufficient space above the
machine for pipework and valves.
Caution
HBS 05 will end up approx. 10 mm out from
the wall when it has been mounted on the
brackets.
NOTE
Condensation hose (WP3) must be connected
to holes in the underside of HBS 05.

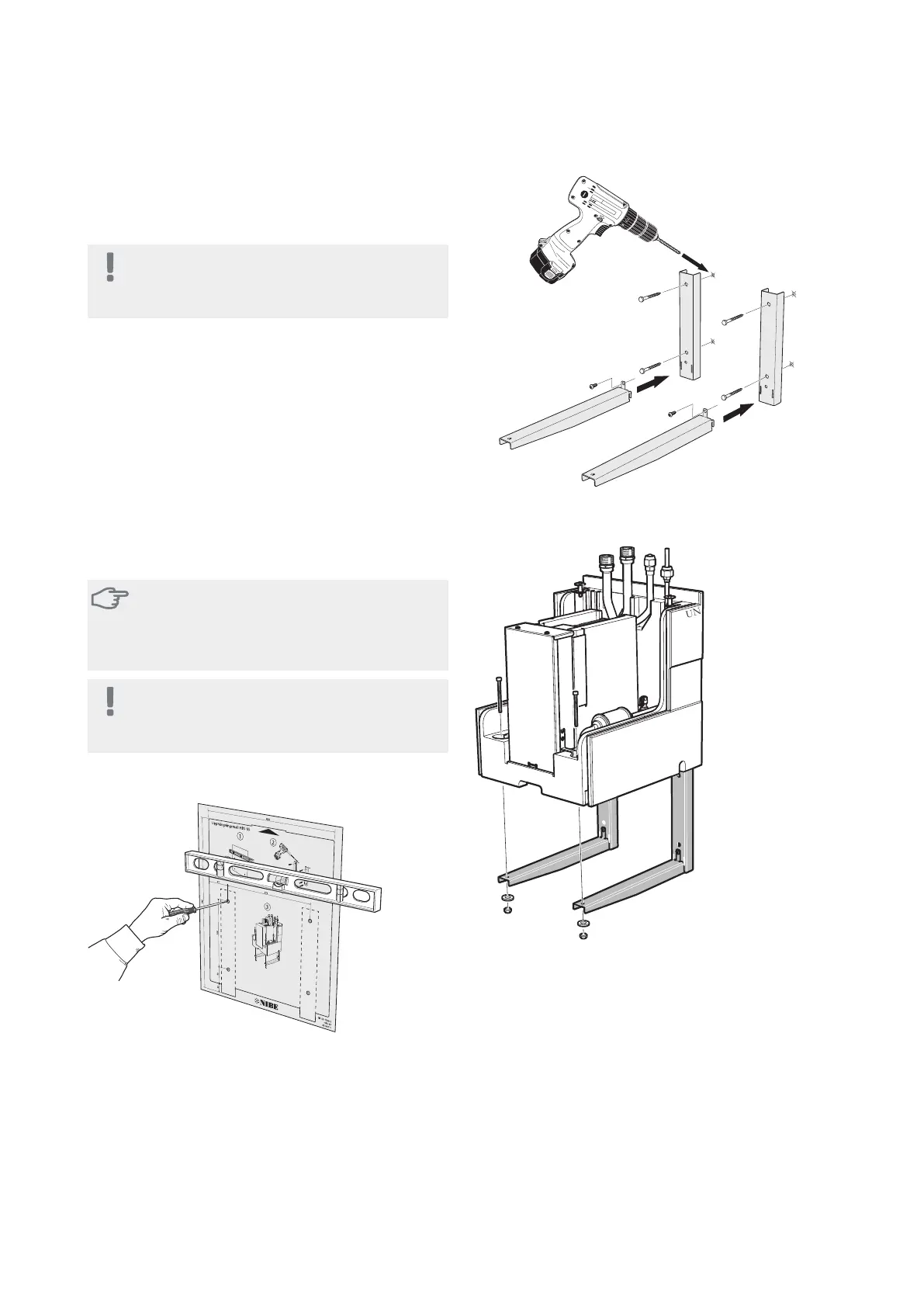

Mounting the SPLIT box HBS 05
1. Position the enclosed mounting template horizontally
against the wall. (See the dimensions on the mounting
template.) Mark for drilling holes.
2. Screw the brackets to the wall using the enclosed
screws.
3. Install HBS 05 on the brackets. Finally, install the cover.
