Nibe VVM 500 Manual

Tillgängligt tryck
(Pa)
Vattenflöde (l/s)
0 0,1 0,2 0,3 0,4 0,5 0,6 0,7 0,8
0
10
20
30
40
50
60
70
100%
25%
T
illgängligt tryck
(Pa)
Vattenflöde (l/s)
0
10
20
30
40
50
60
70
0 0,1 0,2 0,3 0,4 0,5 0,6 0,7 0,8
100%
25%
10
12
14
16
18
20
22
24
26
28
30
100 150 200 250 300 350 400
Tappflöde
(l/min)
Tappvolym (l) 40 °C
Ekonomi Normal Lyx
The diagram above displays what hot water capacity VVM 500
can supply at the different selectable comfort modes.
The difference between the selectable modes is the temperature
of the hot tap water. Higher temperature means hot water lasts
longer.
economy: This position gives less hot water, but is more eco-
nomical. This mode can be used in smaller households with a
small hot water requirement.
Water capacity
Hot water capacity NIBE VVM 500 with NIBE F2026/F2300
Tap flow
(l/min)
Economy Normal Lux
Tap volume (l) 40 ﾘC
normal: Normal mode gives a larger amount of hot water and is
suitable for most households.
luxury: Lux mode gives the greatest possible amount of hot wa-
ter. In this mode, the immersion heater, as well as the compressor,
is used to heat hot water, which may increase operating costs.
F2026 requires additional heat (internal or external) to reach Lux-
ury.
In most cases, F2300 reaches all three settings (including Lux),
with just a compressor.
NIBE VVM 500 11

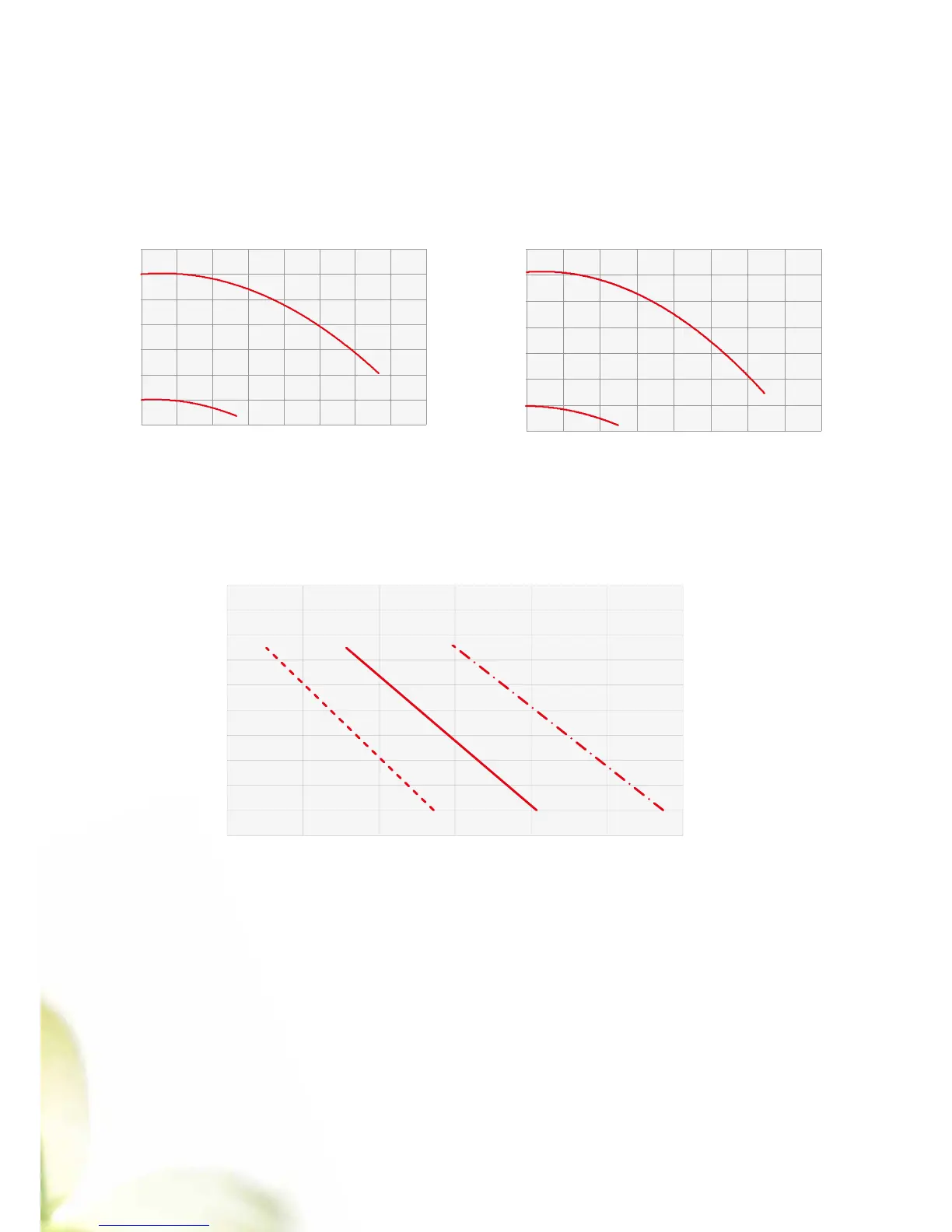

Pump capacity diagram
Available pressure, circulation pump for heating systems, GP1
Available pressure, charge circulation pump, GP12
Available pressure
(Pa)
Available pressure
(Pa)
Water flow (l/s)
Water flow (l/s)
INSTALLATION

Nibe VVM 500 Specifications

General

Type	Indoor module
Volume	500 liters
Integrated immersion heater	Yes
Energy efficiency class, DHW preparation	A
Compatible with	NIBE air/water heat pumps
Refrigerant	Not applicable
Cooling Capacity	Matches the heat pump it is connected to.
