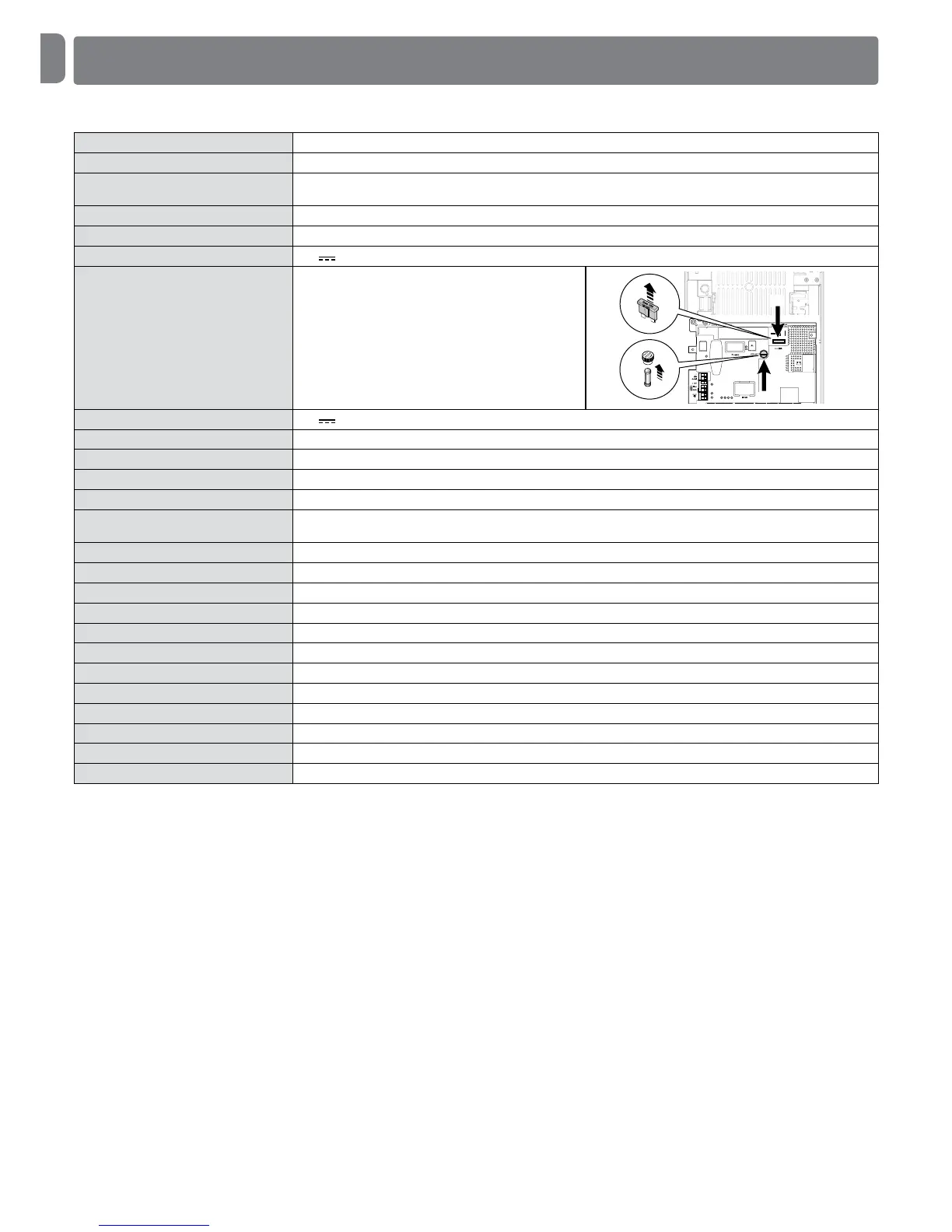

TECHNICAL SPECIFICATIONS OF THE PRODUCT
WARNINGS: • All technical specications stated herein refer to an ambient temperature of 20° C (± 5° C). • Nice S.p.A. reserves the right to apply modications
to products at any time when deemed necessary, maintaining the same intended use and functionality.
DPRO924 supply 230V~50/60Hz
DPRO924/V1 supply 120V~50/60Hz
Maximum power absorbed by the
network
500W
Class of insulation 1 (a safety grounding system is required)
Emergency supply With accessory PS224
Service output 24V
-30/+50%, 200mA
Board fuses F2: 2A type T
F1: 20A type auto
FUSE
FUSE
F1
Phototest outlet 24V , maximum current 200mA
OUT1 output For 1 asher ELDC, programmable with Oview
OUT2 output With clean contact (relay), programmable with Oview
OUT3 output With clean contact (relay), programmable with Oview
Aerial input 52ohm for RG58-type cable or similar - for OXI New Generetion use the aerial connector on the receiver
STOP input For contacts with 8.2 Ω constant resistance or OSE optical type; in self-learning (a variation from the stored status
triggers the “STOP” command)
ALT input For Normally Closed (NC) contacts in the safety circuit
SbS input For Normally Open (NO) contacts, Programmable with Oview
Open input For Normally Open (NO) contacts, Programmable with Oview
Close input For Normally Open (NO) contacts, Programmable with Oview
Photo input For Normally Closed (NC) contacts
Photo2 input For Normally Closed (NC) contacts
Radio coupling SM connector for SMXI, OXI, OXI New Generetion, OXIBD receivers
IBT4N coupling For IBT4N accessory for Oview connection or IT4WiFi
Operating temperature -20°C ... +55°C
Protection class IP55 with container undamaged
Dimensions 310 x 210 x 125 mm
Weight About 4 kg
