Mighty Mule gate operators utilize Dual Sense Technology™
entrapment protection. Dual Sense Technology
™ is built
into every Mighty Mule and provides redundant methods of
entrapment protection for open and close gate directions.
In addition to Dual Sense Technology, every Mighty Mule
gate controller has provisions for the connection of
additional obstruction detection devices such as sensing
edges and photo beams.
These devices may be located where there is an increased

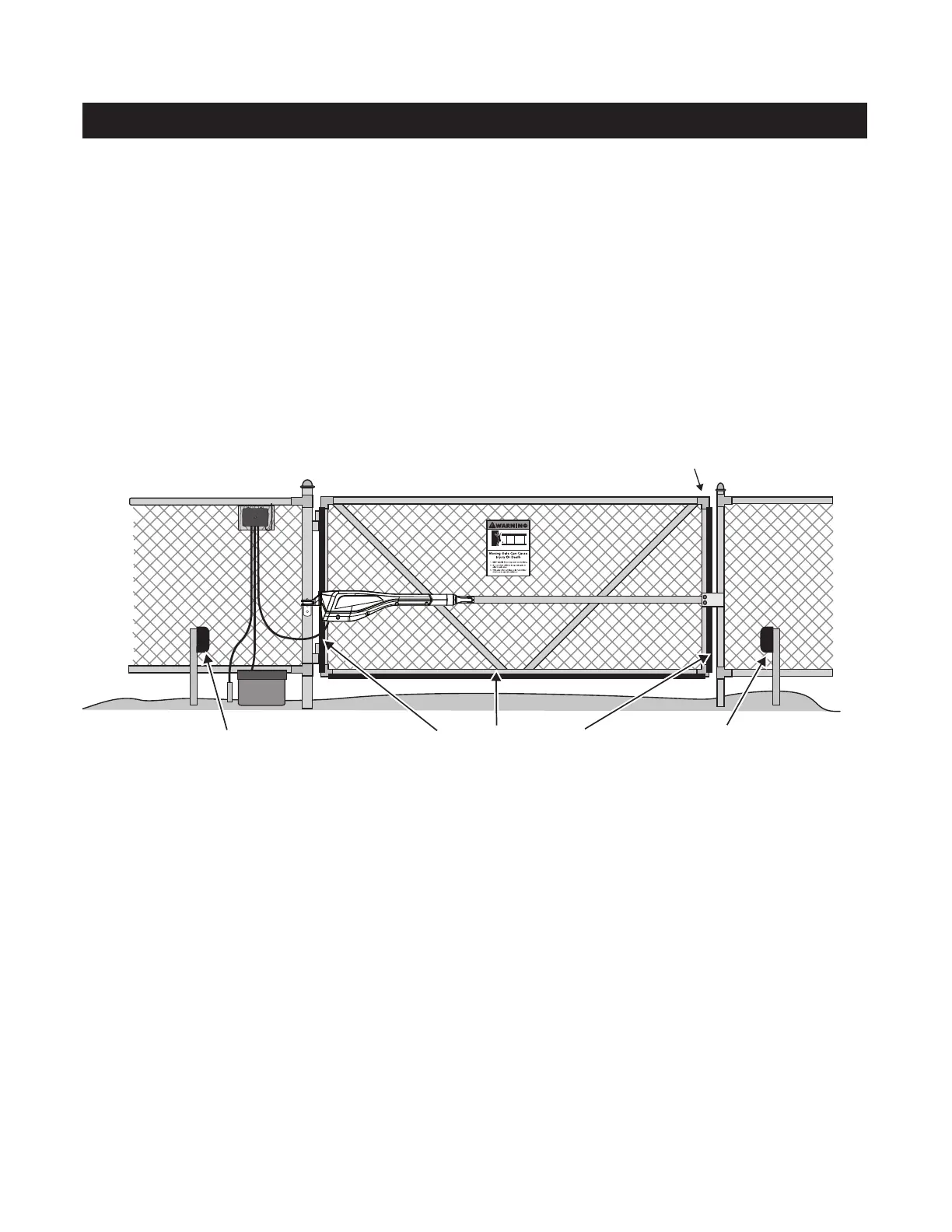

risk of obstruction. Refer to the diagram below.
One or more edge sensors may be located at the leading
edge, bottom edge, and post edge, both inside and outside
of a vehicular swing gate system.
Wiring to sensors must be located and arranged so the
wiring between the sensor and the gate operator is not
subjected to mechanical damage.
A wireless sensor such as one that transmits radio frequency
(RF) signals that promote safety shall be located where the
transmission of the signals is not obstructed or impeded by
building structures, natural landscaping or similar objects.
of the gate
Photo Beams
(recommended, not included)
Photo Beams
(recommended, not included)
Sensing Edges
(recommended, not included)
Vehicular Gate
Entrapment and Obstruction Protection
Mighty Mules’s Dual Sense Technology™ provides entrapment protection, when properly adjusted. Since all installations are
different, you may need to add photo beams or sensing edges to help prevent damage to vehicle or other items that could be hit by a
moving gate.
Entrapment Alarm
The Mighty Mule Automatic Gate Operator is designed to stop and reverse the gate when the gate comes in contact with an
obstruction. Additionally, these operators are equipped with an audio entrapment alarm which will activate if the unit obstructs twice
while opening or closing. This alarm will sound for a period of 5 minutes, or until the operator receives an intended signal from a
hard wired entry/exit source (e.g. push button control or keypad). Turning the power switch on the control box OFF and back ON will
also deactivate the alarm. Wireless controls such as transmitters and wireless keypads will not deactivate the alarm.
Important Safety Information
NOTE: Photo beams should always be located on the non-travel side of the gate.
