Nice Mighty Mule MM271 - Closed Position Stop Plate Installation

16
1
2
3
5
612
T
L
L
V
P
2
1
1
13
2
14
15
4
H
1
5
1
2
2
1

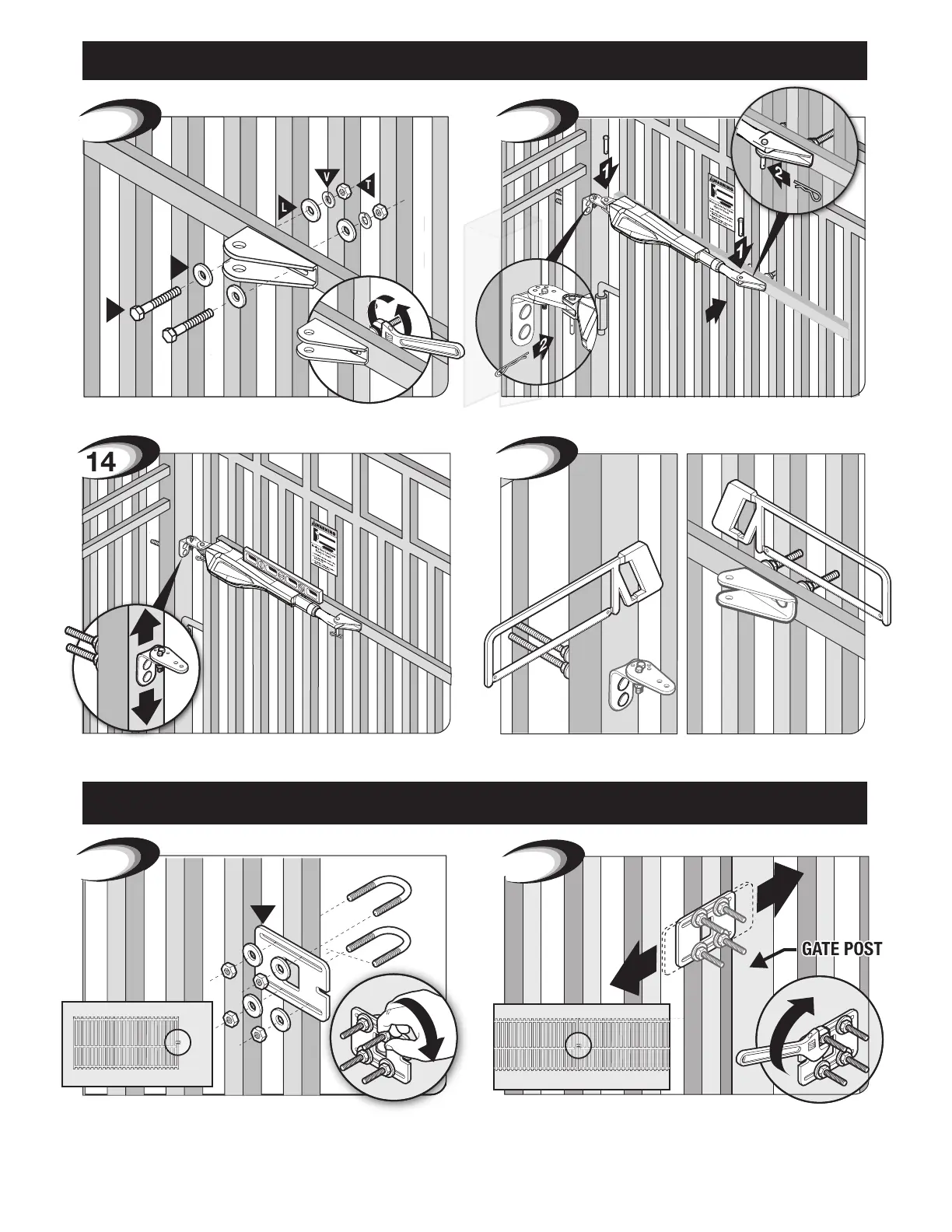

Attach and secure operator assembly to brackets.Attach gate bracket assembly to gate cross support.
Check for level. Adjust post bracket if necessary. Tighten all bolts and remove excess length on post and gate
bracket bolts with hacksaw.
Remove the arm from the front bracket then attach closed position stop
plate to the leading edge of the gate with one of the following:
• U-bolts—tube and chain link gates (Not included)
• Wood/lag screws—at aluminum/wood supports (Not included).
Position gate stop with gate CLOSED to fence post. Tighten
fasteners. Cut off excess bolt length.
Gate Operator Installation
Closed Position Stop Plate Installation
