Locate power outlet and identify wire path to control box.
NOTE: If OUTLET is OUTSIDE use weatherproof cover. Inspect
the wire to insure the prevention of damage.

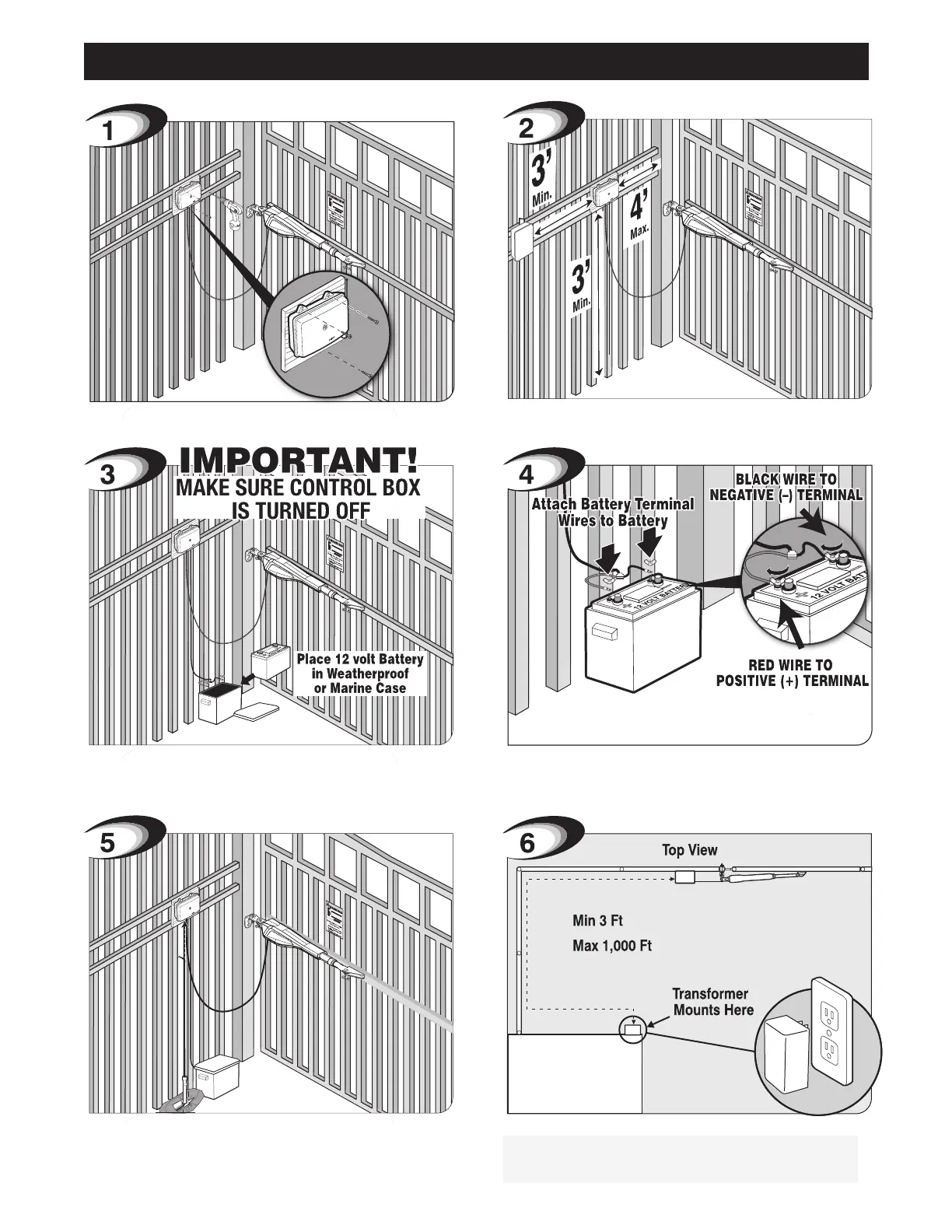

Control Box & Battery Installation
Mount control box on piece of treated plywood then attach it to
post or fence using screws.
Locate control box mounting area. IMPORTANT: Be sure to mount
box at least 3 feet from AC power and 3 feet off the ground.
Make sure control box is turned OFF. Place 12 Volt battery and
weatherproof battery box within 6 feet of the control box Attach the
battery harness wires from the control box to the battery terminals.
Tighten the bolts, washers, and nuts and place the cover on the
weatherproof box. IMPORTANT: Do not connect the transformer
or solar panel directly to the battery.
Use PVC conduit from ground up to control box.
