22
1
POWER
ON OFF
SG1
ED1
K1
06
AVR-ISP
D1
C2
C7
C15
LED3
D15
R20
IC4
D16
D13
D14
K2
BATT- BATT+
STATUS
ANT SHLD
S9.8874
EDGE
COM
LOCK+
LOCK -
PGOK200 Rev. XC
M_BLK
M_RED
VAR2
GRN
VAR3
VAR3
VAR1
VAR4
VAR5
PF1
VAR6
WHT
GTO Inc. Tal l a h a s s e e, FL
CYCLE
EXIT
SAFETY
COM
CHGR
CHGR
OFF
120
AUTO CLOSE
TIME
MIN
MAX
STALL
FORCE
2
3
ON/OFF
SWITCH
4

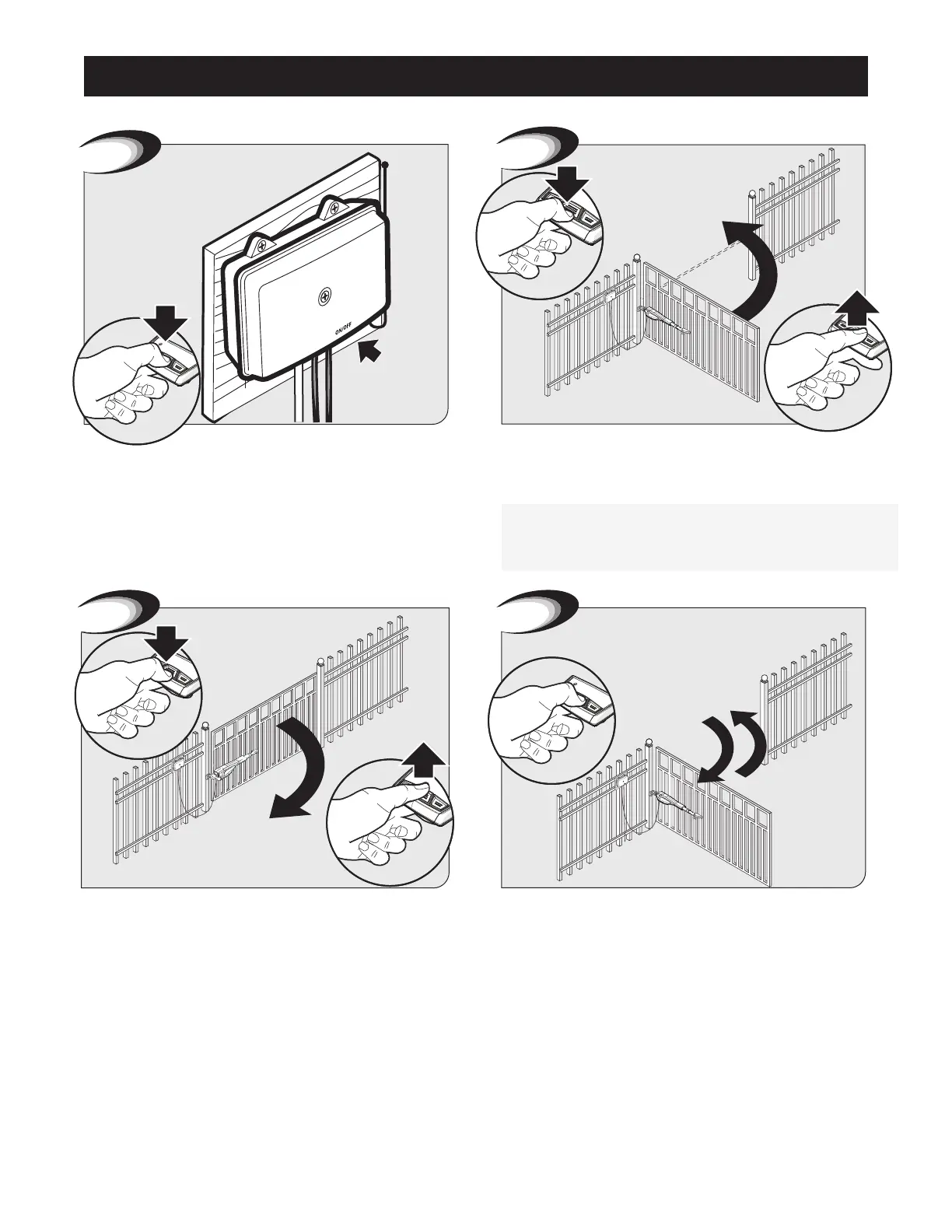

Setting Closed Limit Position
With gate in the open position, (arm retracted) turn the
control box ON/OFF switch to the off position. Press and
hold the transmitter while sliding the ON/OFF switch to the
ON position and you will hear a single or a series of beeps
followed by a pause then a single beep. At that point release
the transmitter button. This process may take 8 - 10 seconds.
Press and release the learned transmitter button; gate should start
closing. When the gate reaches the desired CLOSED position, press
and release the transmitter button again.
NOTE: If your gate stops and reverses before it fully closes, you
may need to increase the stall force (see page 23). If you make
changes to stall force, you’ll need to Step 1 and repeat the process.
Press and release the transmitter button again; gate should
start opening. Once the gate reaches the OPEN position, a
single audible alarm will sound to indicate the limit is set.
Once CLOSED and OPEN limits are set, operate the gate
through four complete open and close cycles. This will
automatically measure and congure the gate’s force set up.
Gate operator’s closed position is now set. Press and release
transmitter to close gate for normal operation.
