Nice TTD0110 - Page 5

EN
English – 3
2
1
12
ACN
LAMP
V
V
+
-
+
-
DIM
DIM
ACL
L
P
N
2
3
4
5
6
7
3

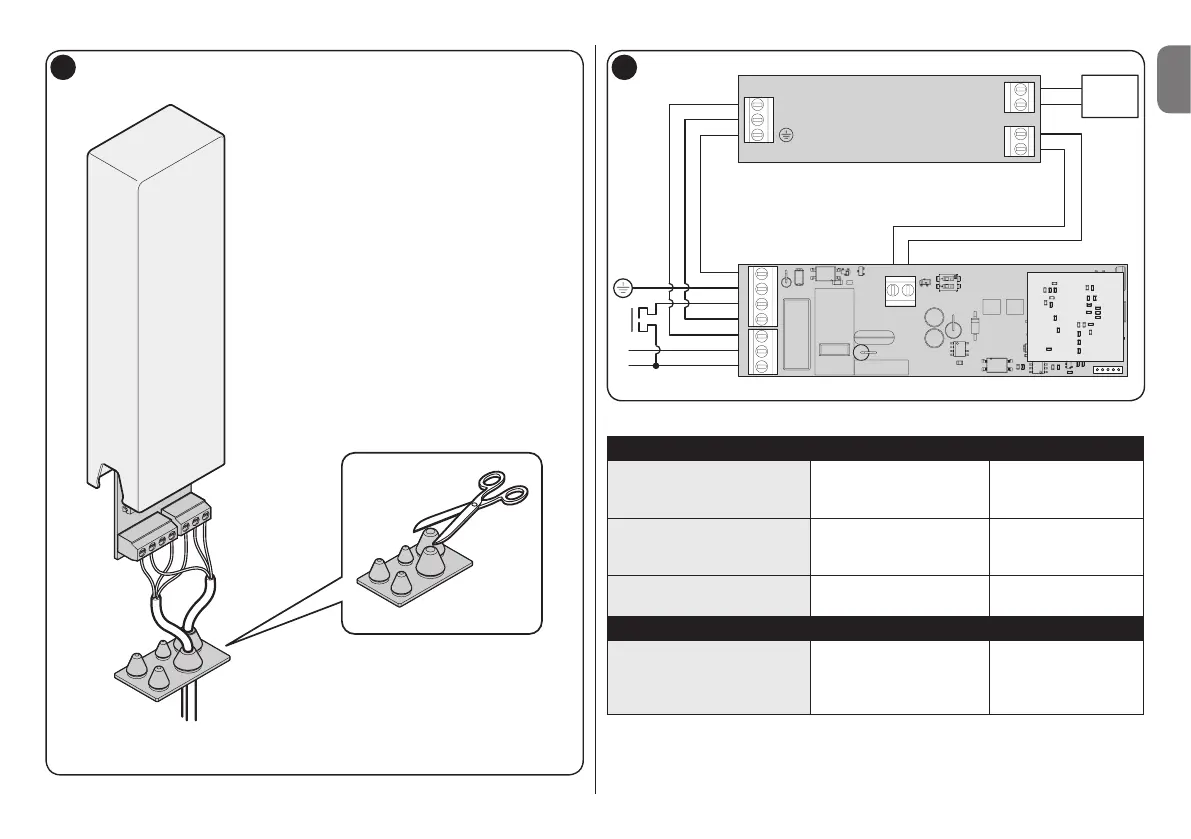

supply voltage terminals
TTD0110 Input/Power
supply
220 - 240 Vac
7 - neutral N
6 - phase L
2 - earth T
External driver output/
power supply
5 - neutral N
4 - phase L
1 - earth T
Output/External button
3 - button P
7 - neutral N
low voltage terminals
Output/External driver:
adjustment 1-10 V or
0-10 V or 2-10 V or
PWM
dimmer connected to
power supply/driver
1 (-)
2 (+)
The product has two dip-switches (Fig. 4) that allow you to select the
type of load that will be connected to the output:
