DIGITAL AIR MICROMETER USERS MANUAL (Second Edition)
16
CHAPTER 6 DETAILS OF EACH PROCEDURE
6.1 Installation
Please place the main body and measurement tool on a location that can withstand heavy weight and
that is stable.
6.2 Preparation
(1) Air piping
Pipe layout for the air to be used in measurement.
Please supply pure air with dirt, moisture, and oil removed.
Please prepare air environment friendly high performance filter.
Note: Please make sure to connect in such a way that air does not leak when connecting the hose to the
joint.

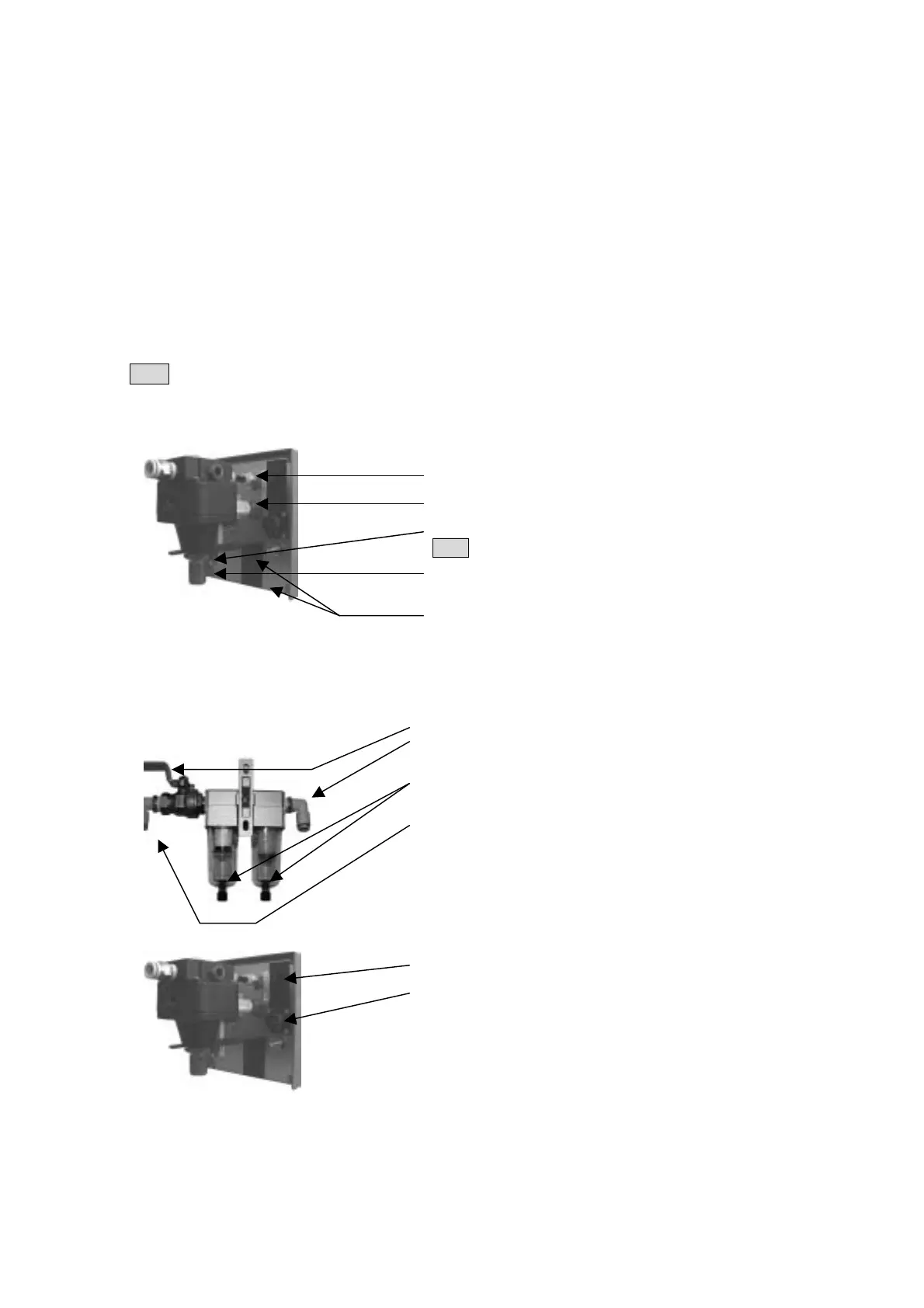

a) Connection of main body and regulator (optional)
b) Connection of filter (optional)
(2) Connection of power cable
Rear view of main body
① Please connect hose (outer diameter 6, inner diameter 4, lengt
50) to the regulator joint (OUT).
② Please connect the silencer.
③ Please fit the regulator bracket to the regulator.
Note: Please do not touch the regulator pressure adjustment part
since regulator pressure has already been adjusted to
0.196±0.005Mpa.
④ Please fix the regulator bracket to the regulator bracket hole
(M3).
① Please turn the COCK off.
② Please connect the hose (outer diameter 8, inner diameter 6) i
between the filter and regulator.
③ Please fix the screw for draining so that it faces downwards.
Turn counterclockwise and please drain 1 or more times per day.
④ Please supply compressed air (0.3 ~ 0.7Mpa)
① Please set the power switch to OFF ( will come out).
② Please connect the power cable to the power connector (input).
For the power cable included, please use within AC85 ~ 125V.
