4 Getting started
4.1 Quick start commissioning / start-up using Unidrive M
Connect (V02.00.00.00 onwards)
Unidrive M Connect is a Windows™ based software commissioning / start-up tool for Unidrive M/HS.
Unidrive M Connect can be used for commissioning / start-up and monitoring, drive parameters can
be uploaded, downloaded and compared and simple or custom menu listings can be created. Drive
menus can be displayed in standard list format or as live block diagrams. Unidrive M Connect is able
to communicate with a single drive or a network. Unidrive M Connect can be downloaded from
www.controltechniques.com (file size approximately 100 MB).
Unidrive M Connect system requirements
• Windows 8, Windows 7 SP1, Windows Vista SP2, Windows XP SP3
• Minimum of 1280 x 1024 screen resolution with 256 colours
• Microsoft.Net Frameworks 4.0 (this is provided in the downloaded file)
• Note that you must have administrator rights to install Unidrive M Connect
Any previous copy of Unidrive M Connect should be uninstalled before proceeding with the
installation (existing projects will not be lost). Included within Unidrive M Connect is the Parameter
Reference Guide for Unidrive M702/HS72.
4.1.1 Power-up the drive

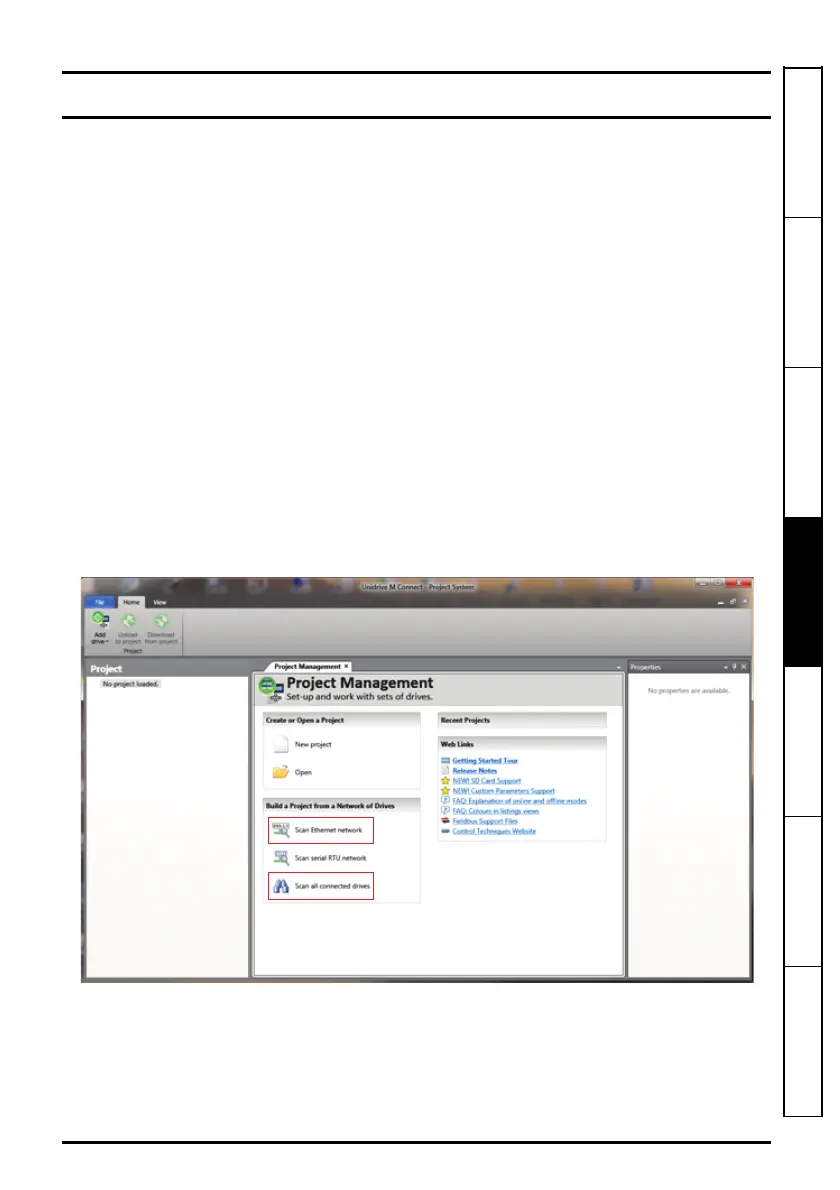

1. Start Unidrive M Connect, and on the ‘Project Management’ screen select ‘Scan Ethernet
network’ or ‘Scan all connected drives’.
