Nikon D5300 - Page 20

2
2
1
7
8 9
10
13
2021
15
16
14
12
11
19
22
18
17
3
5
6
4

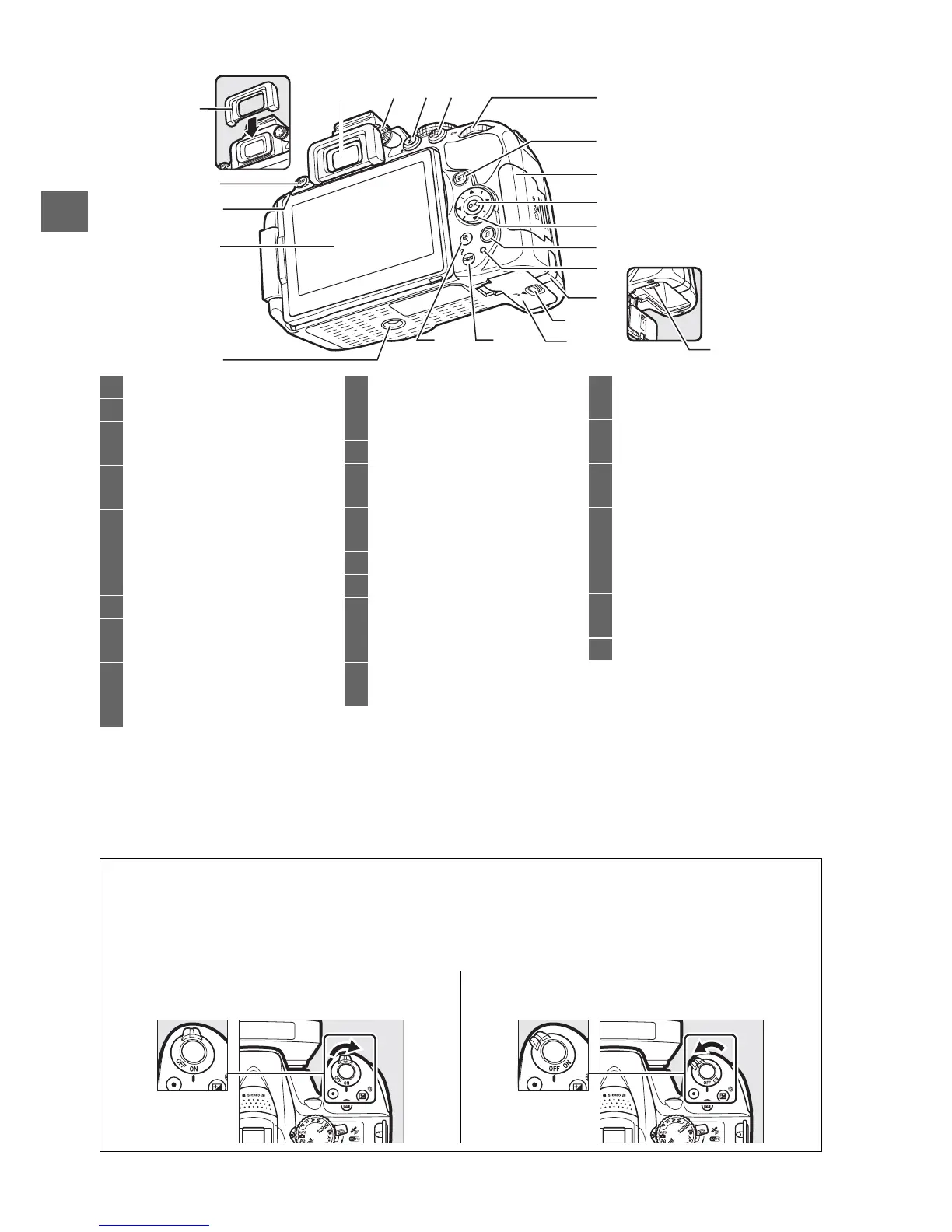

1 Viewfinder eyepiece......... 5, 13
2 Rubber eyecup
3 G button
Menus.................................. 54
4 Infrared receiver for ML-L3
remote control (rear) ........ 65
5 Monitor
Viewing settings...................7
Live view ............................. 22
Full-frame playback.......... 20
6 Tripod socket
7 Diopter adjustment
control .................................. 13
8 P button
Changing settings in the
information display..........8
9 A/L button ........................55
Protecting photographs
from deletion
10 Command dial
11 K button
Playback...............................20
12 Memory card slot
cover............................... 10, 15
13 J (OK) button .......................57
14 Multi selector..........................57
15 O button
Deleting pictures during
playback ...........................21
16 Memory card access
lamp ......................................19
17 Power connector cover for
optional power connector
18 Battery-chamber cover
latch ................................10, 15
19 Battery-chamber cover
..........................................10, 15
20 W/Q button
Thumbnails......................... 20
Playback zoom out
Help...................................... 54
21 X button ................................. 20
Playback zoom in
22 Battery latch.....................10, 15
D The Speaker
Do not place the speaker in close proximity to magnetic devices. Failure to observe this
precaution could affect the data recorded on the magnetic devices.
A The Power Switch
Rotate the power switch as shown to turn
the camera on.
Rotate the power switch as shown to turn
the camera off.
