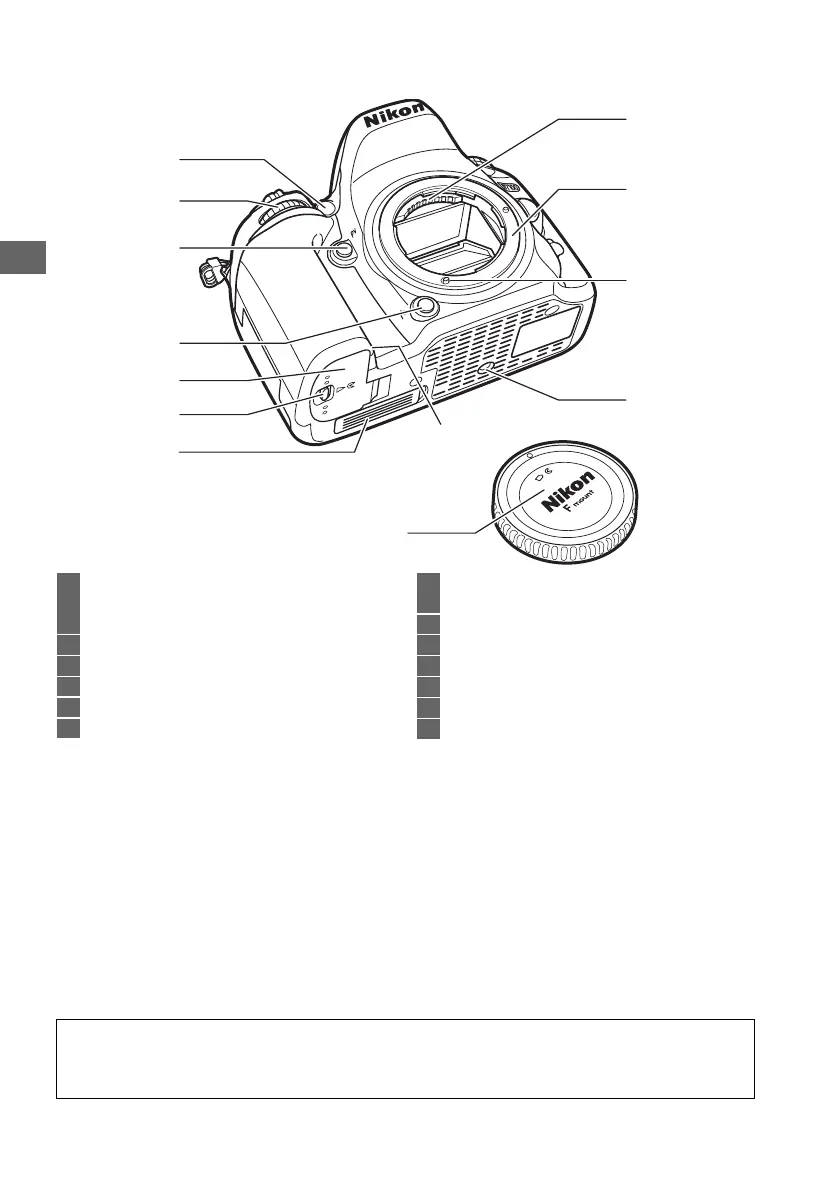

The Camera Body (Continued)
1
2
3
4
5
6
7
8
9
10
11
12
13
1 AF-assist illuminator............................................233
Self-timer lamp....................................................... 59
Red-eye reduction lamp ....................................121
2 Sub-command dial....................................... 13, 257
3 Depth-of-field preview button.........50, 255, 260
4 Fn (function) button..........65, 125, 151, 253, 259
5 Battery-chamber cover.........................................24
6 Battery-chamber cover latch ..............................24
7 Contact cover for optional MB-D15 battery pack
.............................................................................. 308
8 Power connector cover ......................................311
9 CPU contacts
10 Lens mount.......................................................27, 78
11 AF coupling
12 Tripod socket
13 Body cap ......................................................... 26, 309
D The Microphone and Speaker
Do not place the microphone or speaker in close proximity to magnetic devices. Failure to
observe this precaution could affect the data recorded on the magnetic devices.
