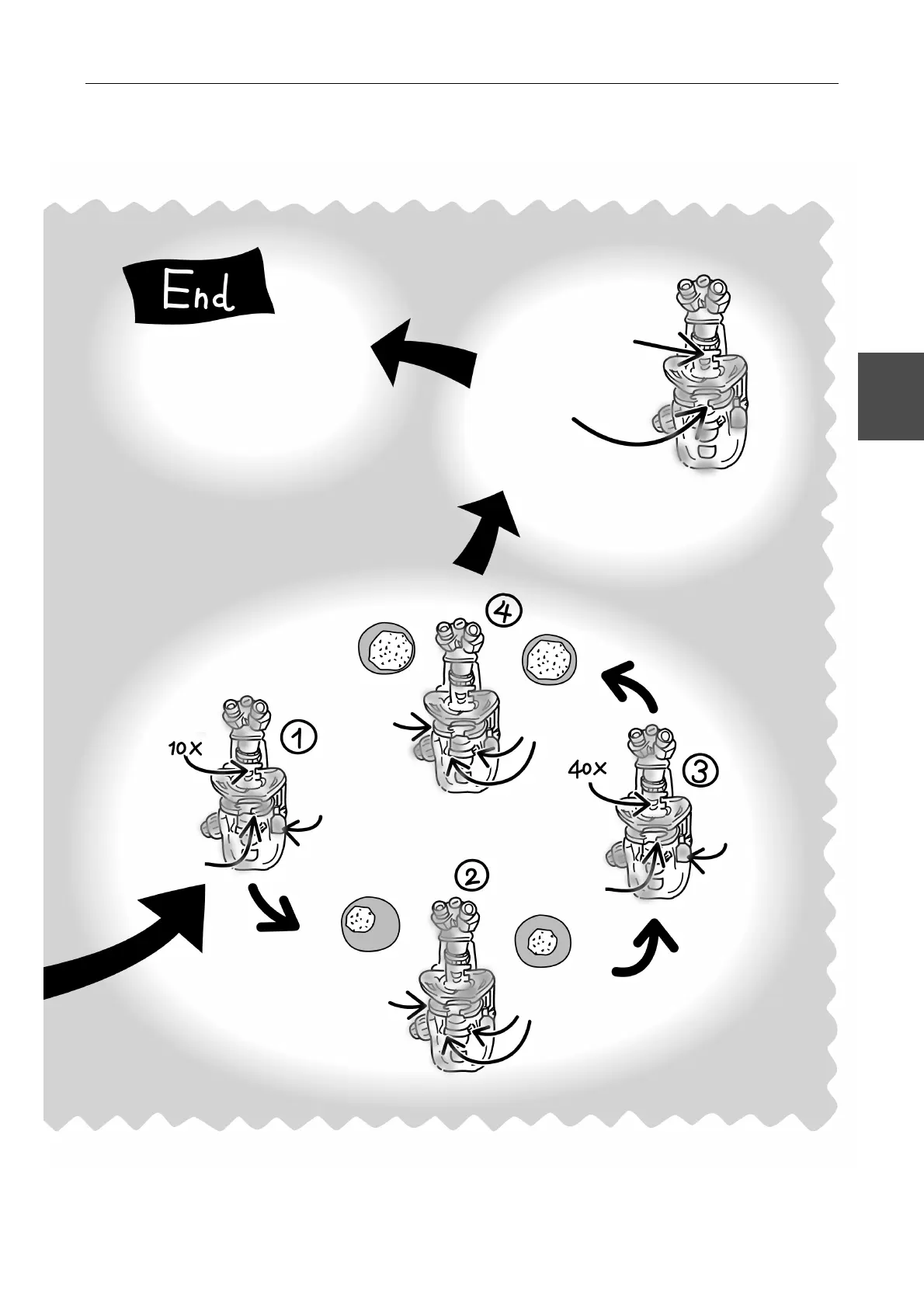

Chapter 3 A Quick Microscopic Procedure
53
3
Turn off the power.
Wait till the microscope cools
down before storing.
Check the ma
g
nif
y
in
g
power.
Move the lever
to the
magnifying
power of the
objective.
Magnify the image
and observe!
Field dia
p
hra
g
m
Focus on
the field
dia
p
hra
g
m
ima
g
e with
this knob.
Then,
center the
image.
Focus.
Close down the
field diaphragm.
Open the field
diaphragm till
the field
diaphragm
circumscribes
the viewfield.
Field dia
p
hra
g
m
Center the
field
diaphragm
Focus on
the field
dia
p
hra
g
m
ima
g
e with
this knob.
Then, center the
image.
Focus.

Nikon eclipse E200 Specifications

General

Type	Biological Microscope
Optical System	CFI60 Infinity Optical System
Objectives	4x, 10x, 40x, 100x (Oil)
Observation Method	Brightfield
Magnification	40x to 1000x
Focus	Coaxial coarse/fine focus knobs
Eyepieces	10x
Condenser	Abbe condenser
Power Supply	AC 100-240V
Eyepiece Tube	Binocular Tube, Inclination 30°
