Nikon Eclipse E400 User Manual

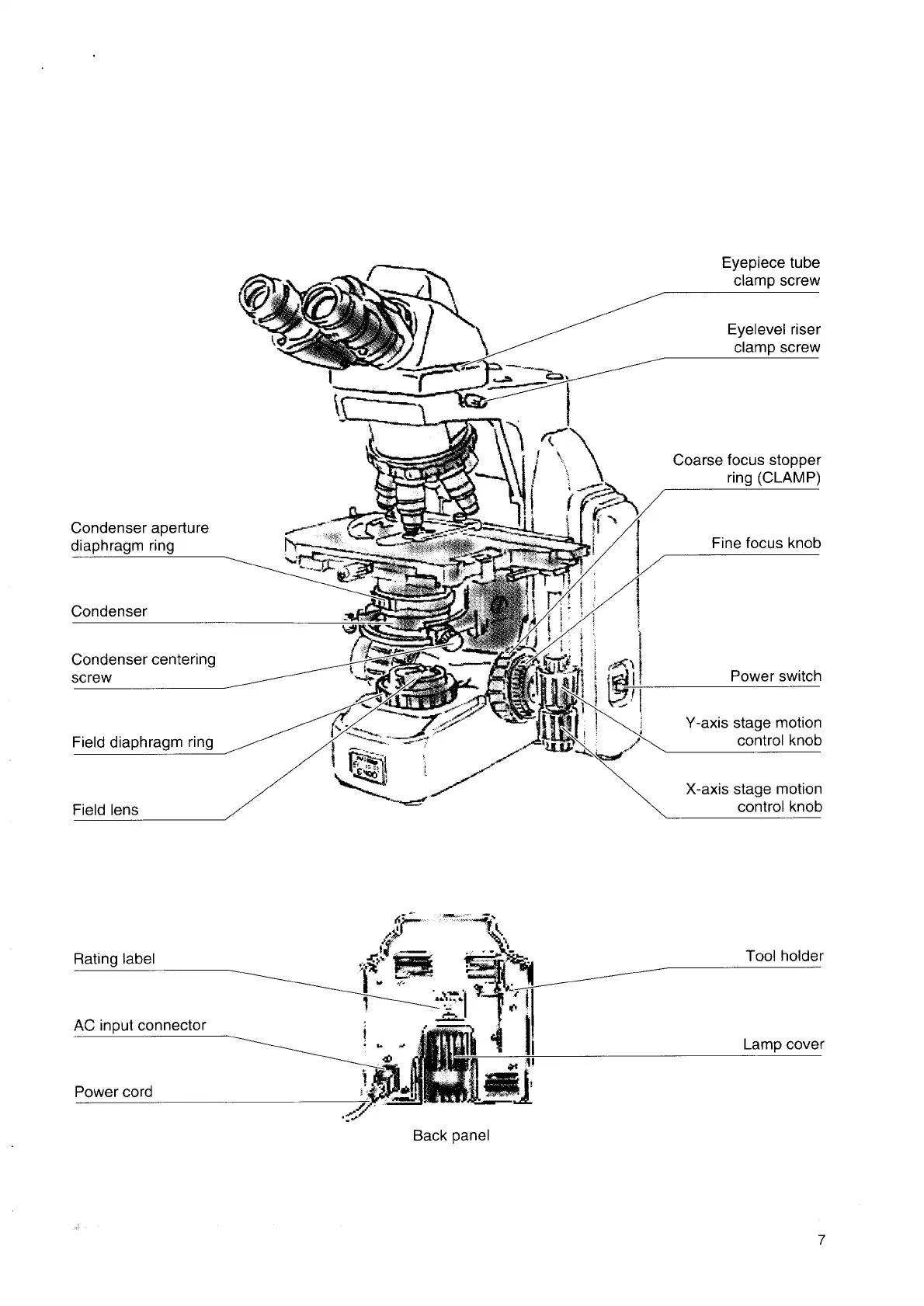

Eyepiece tube
clamp screw
Eyelevel riser
clamp screw
n \ Coarse focus stopper
1 ring (CLAMP)
Fine focus knob
Condenser aperture
diaphragm ring
Condenser
Condenser centering
screw Power switch
Y-axis stage motion
Field diaphragm ring control knob
X-axis stage motion
Field
lens
control
knob
Tool holder
Rating label
AC input connector = | |
TS HE | Lamp cover
2 = 4 7
Power cord
Back panel

Nikon Eclipse E400 Specifications

General

Type	Biological Microscope
Optical System	CFI60 Infinity Optical System
Nosepiece	Quadruple nosepiece
Magnification	40x to 1000x
Power Supply	AC 100-240V, 50/60Hz
Lamp Power	6V 30W
Eyepiece	10x
Objective Lenses	4x, 10x, 40x, 100x
Stage	Mechanical stage
Focus	Coaxial coarse and fine focusing
Condenser	Abbe condenser, N.A. 1.25
Observation Tube	Binocular
Stage Dimensions	134mm
Interpupillary Distance Adjustment	50-75mm
Diopter Adjustment	+/- 5 diopters
Illumination	Built-in Koehler illumination
