Nikon ECLIPSE TE2000-U

I. Parts of the microscope and their names
16

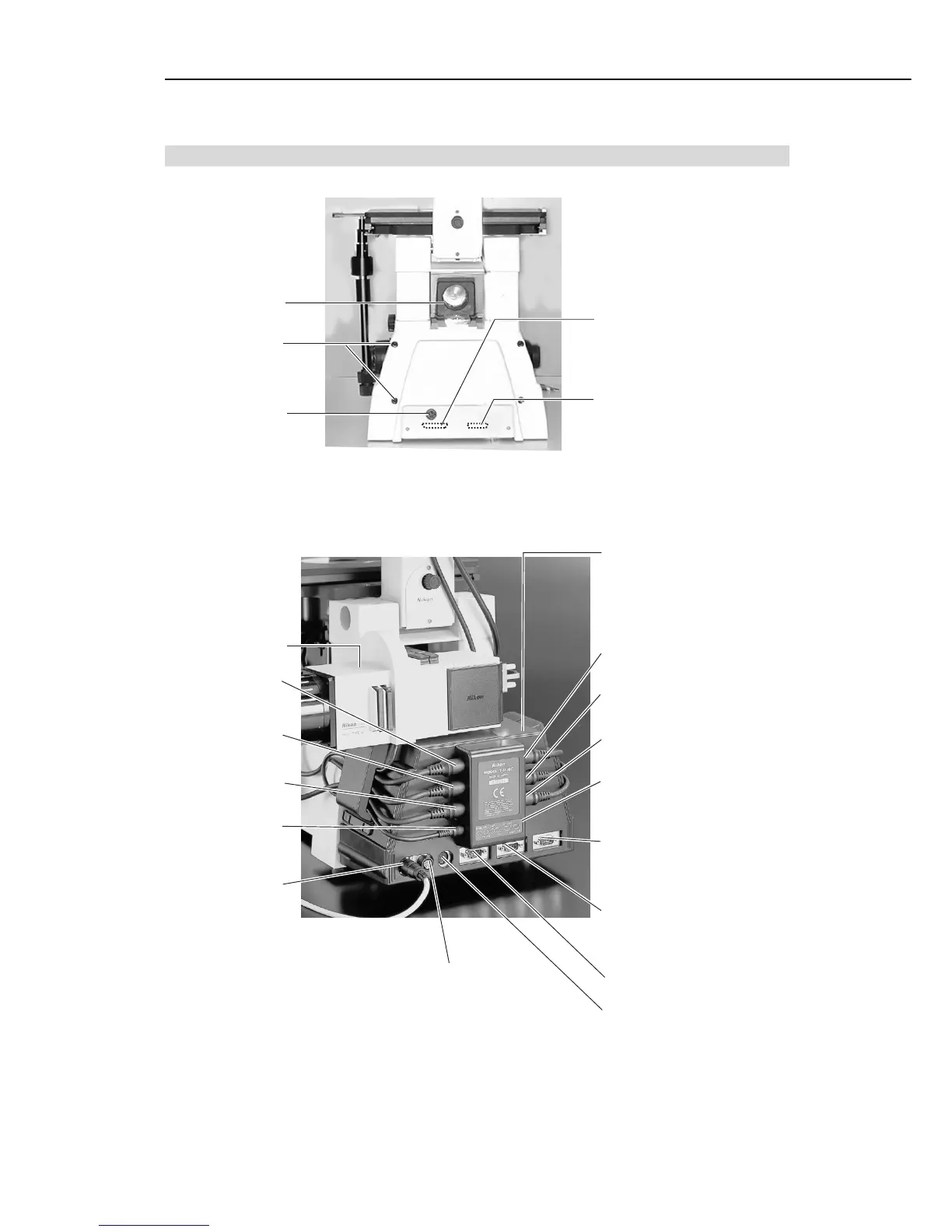

6. Microscope rear
NOSEPIECE
The photo shows the T-HUBC HUB controller
and epi-fl attachment installed to the rear side of the microscope.
(The HUB controller's connectors are attached with various motorized units.)
Connect the T-ND6-E
sextuple motorized
DIC nosepiece.
ANALYZER
Connect the T-A-E
motorized DIC analyzer
EX FILTER
Connect the T-FLEW-E
EX filter wheel.
FL SHUTER
Connect the T-FL-E
motorized epi-fl
attachment.
REMOTE
Connect the T-RCP
remote control pad.
CONDENSER
Connect the T-CT-E motorized
condenser turret.
FL BLOCK
Connect the T-FLC-E motorized
cassette holder.
BA FILTER
Connect the T-FLBW-E
BA filter wheel.
AUX
Connect the T-EFN focus knob here.
(The T-EFN focus knob is supplied
with the TE2000-E only.)
SHUTTER
Refer to "VI-21 Connection of
external equipment"
in the instruction manual supplied
with the HUB controller.
STAGE
Refer to "VI-21 Connection of
external equipment"
in the instruction manual supplied
with the HUB controller.
PC
Connect a PC.
EXP
Refer to "VI-22 Connection to the
EXP connector"
in the instruction manual supplied
with the HUB controller.
TE-PS
Connect the power supply.
Epi-fl attachment
T-HUBC HUB controller
This device controls
the attached motorized units.
It must be installed when the
TE2000-E is used.
Installation of this controller
is optional on the TE2000-U
and TE2000-S.
Mount for epi-fl
attachment
LAMP CTRL
connector Connect
the power supply
or HUB controller.
Mount for T-HUBC
HUB controller
MIC CTRL1 connector
Connect the HUB controller.
Not provided on TE2000-U
or TE2000-S
MIC CTRL2 connector
Connect the HUB controller.
Not provided on TE2000-U
or TE2000-S
