I. Parts of the microscope and their names
7
1. Eyepiece tubes and eyepieces

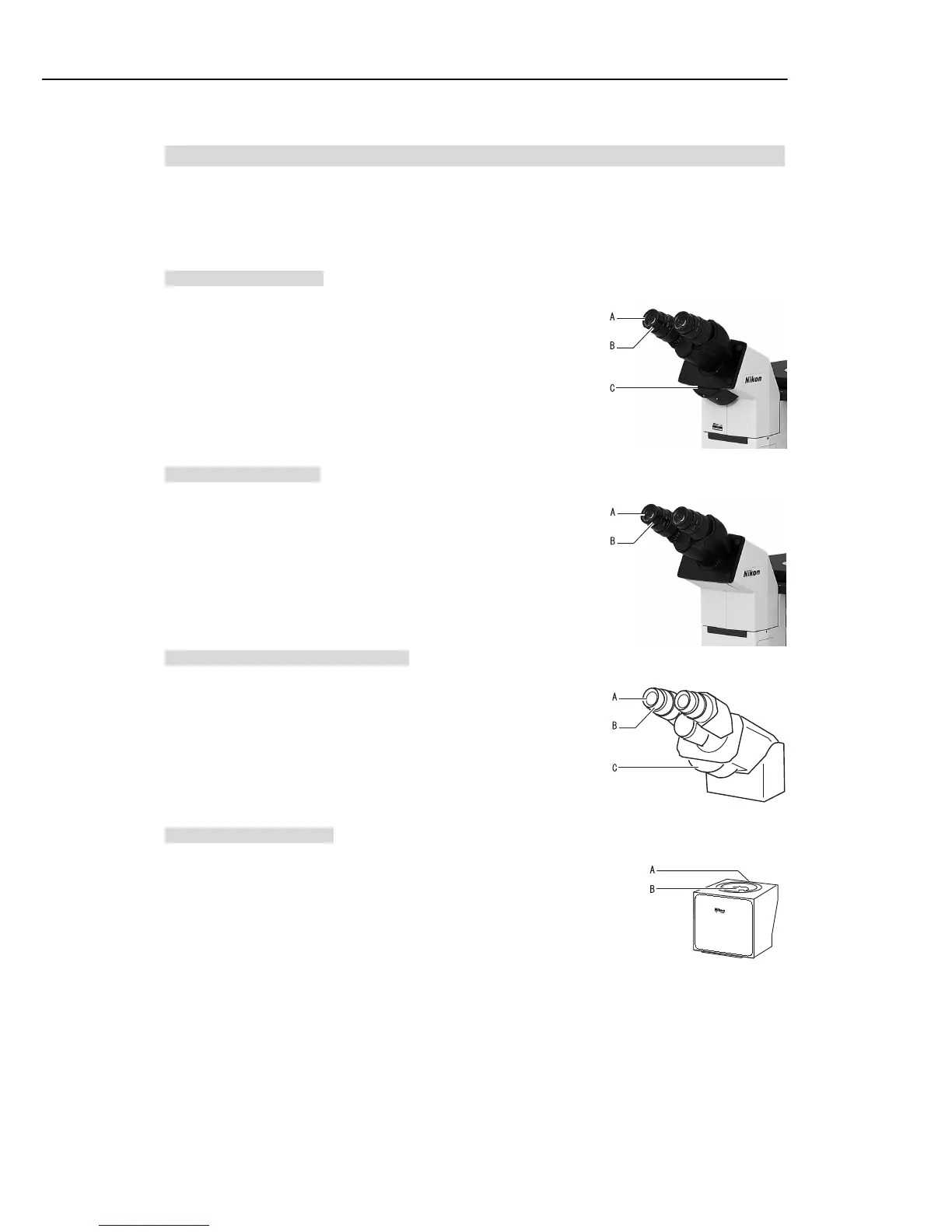

The following eyepiece tubes can be mounted on the observation port of the microscope.
T-TD eyepiece tube D
A: Diopter adjustment ring
B: Eyepiece
C: Eyepiece tube turret
O: Open
B: Bertrand lens (with focusing screw)
C: Close (Shutter)
M: 2.5X magnifier
T-TS eyepiece tube S
A: Diopter adjustment ring
B: Eyepiece
T-TERG ergonomic eyepiece tube
A: Diopter adjustment ring
B: Eyepiece
C: Eyepiece tube turret
O: Open
B: Bertrand lens (with focusing screw)
C: Close (Shutter)
T-TI intermediate tube
A: Clamp screw for holding various devices
B: Mount for various devices
such as
Trinocular eyepice tube for upright microscopes
Teaching head
