II. Microscopy
29

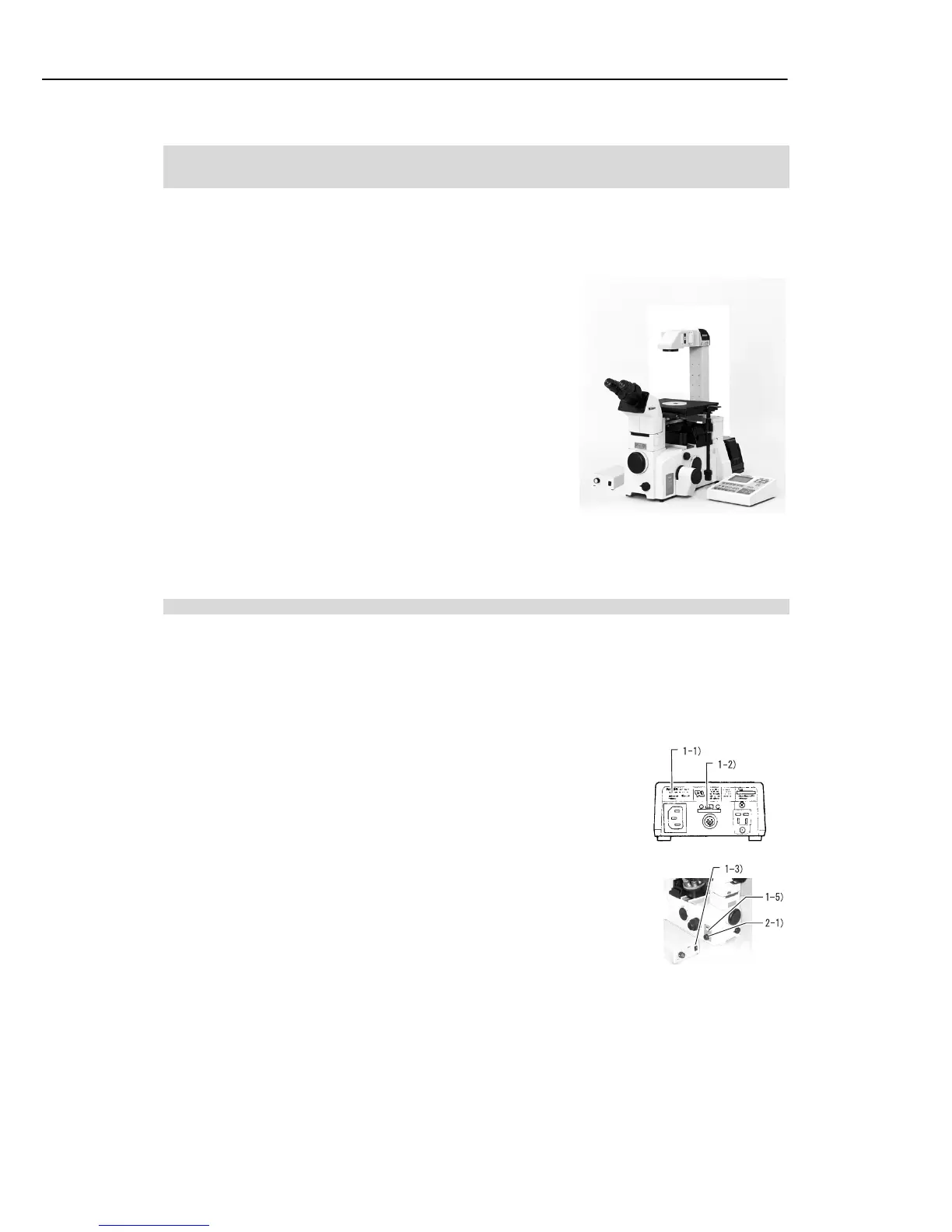

3. Microscope system consisting of TE2000-E, dia-illuminator
30W, SLWD condenser, and T-TS eyepiece tube S
The following instructions are based on a microscope equipped with the parts listed below.
TE2000-E microscope
T-HUBC HUB controller
AC adapter
Power cord for AC adapter
T-RCP remote control pad
T-TS eyepiece tube S
CFI 10X eyepiece
T-DS dia-illuminator 30W
6V30W halogen lamp
TE-PS30 power supply
SLWD condenser
T-SR rectangular stage
T-N6 sextuple nosepiece
Objectives for bright-field microscopy
Objectives for phase-contrast microscopy
Others
3-1. Bright-field (BF) microscopy
Key point: Detach all optical elements required for other types of observation from the optical path. The size of the field
diaphragm of the SLWD condenser is fixed. There is no aperture diaphragm. Since the 6V30W lamp ON/OFF
and lamp voltage adjustment cannot be controlled using the T-RCP remote control pad, use the switch and
control on the microscope main body.
1. Turn on the dia-illumination.
1) Make sure that the input voltage indication on the rear side
of the power supply corresponds with the voltage of the
commercial power source in the area. (-> If different, do
not turn on the switch. Contact your nearest Nikon
representative immediately.)
2) Turn on the “CTRL switch” on the rear side of the power
supply.
3) Turn on the “power switch” of the power supply. (Flip the
switch to .)
4) Turn on the “power switch
”
of the HUB controller. (Flip the
switch to .)
5) Press the dia-illumination ON/OFF switch on the left side of
the microscope to turn on the lamp.
