Nikon ECLIPSE TE2000-U User Manual

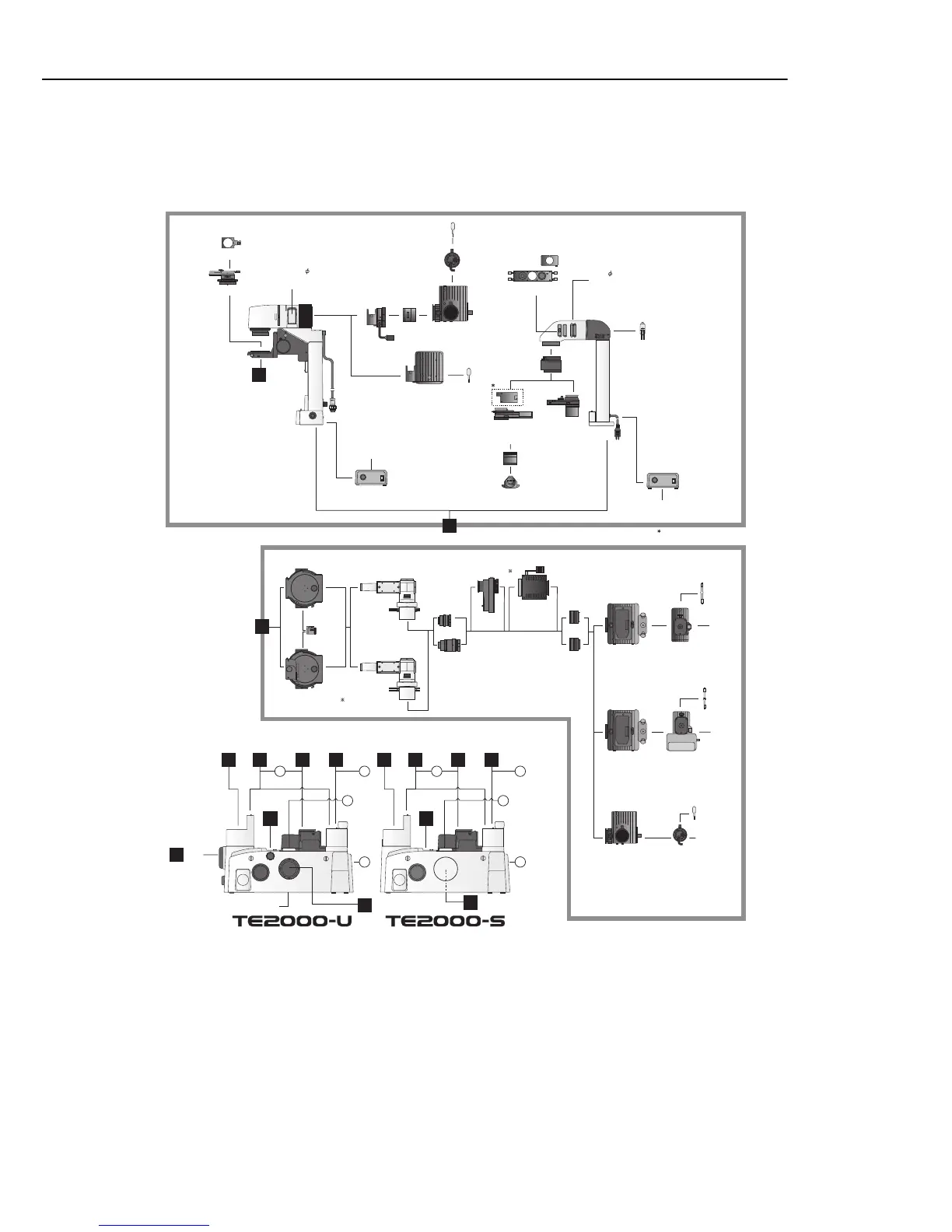

System diagram
71
Halogen Socket
100W
HMX
Lamphouse
Adapter
HMX
Lamphouse
LHS-H100P-1 Lamphouse
Halogen Lamp
12V-100W LL
Lambda Plate
T-P Polarizer
Filter 45mm;
GIF, NCB11, ND16, ND2
Heat Absorbing
TE2-PS 100W
12V Power Supply for
100W Illumination Pillars
7
5
Condensers
Illumination Pillars
Halogen Lamp
12V-100W
Collector
Lens
SLWD Condenser
Halogen Lamp
6V-30W
Filter 33mm;
GIF, Heat Absorbing,
NCB11, ND16, ND2
TE-PS 30/TE-PSE30
6V Power Supply
for 30W Illumination
Pillar
HMC MC1, MC2, MC3
Modules
HMC Lens
TE-C ELWD
Condenser
Marcuy
Lamp
HG-100W
Lamphouse
HMX-3B/HMX4B
w/Backmirror
Mercury Lamp
Socket S 100W
Starter
HG-100W
Xenon
Lamp
Xenon
Starter
Xenon
Lamphouse
Halogen
Lamp
12V-100W
Halogen Socket
100W
HMX
Lamphouse
Xenon
Lamp Socket
U Transformer
Epi-fl
Collector
Lens Q2
C-FC
Epi-fl
Collector Lens
T-FLC-E
Motorized Cassette Holder
System
Condenser
Turret
Provided with the HMC lens.
Remote
Cable
Remote
Cable
TE-AT
Double
Lamphouse
Adapter
T-DS
Dia-illuminator 30W
T-DH
Dia-illuminator 100W
T-FLC Cassette Holder
Epi-fl
Filter
Blocks
T-FL
Epi-fl
Attachment
T-FL-E Epi-fl
Attachment
with
Motorized
Shutter
T-FLA
FL Illumination
Adapter
T-FLZA
FL Zoom
Illumination
Adapter
T-FLEW-E
EX Filter Wheel
Adapter
2
Stages
1
Eyepiece
Tubes
6
Nosepieces
7
Illumination
Pillars
8
Epi-fl
Attachments
4
Side Port
A B
D
C
3
Front
Port
2
Stages
1
Eyepiece
Tubes
6
Nosepieces
7
Illumination
Pillars
8
Epi-fl
Attachments
A B
D
C
8
Epi-fl Attachments
4
Side Port
Model with bottom port also available
• Components not included in UL or GM approval are also shown.
• Components not described in this manual are also shown.
• This system diagram is subject to change without notice.
