Nikon Eclipse TS100 User Manual

E-12
Names of Parts
1

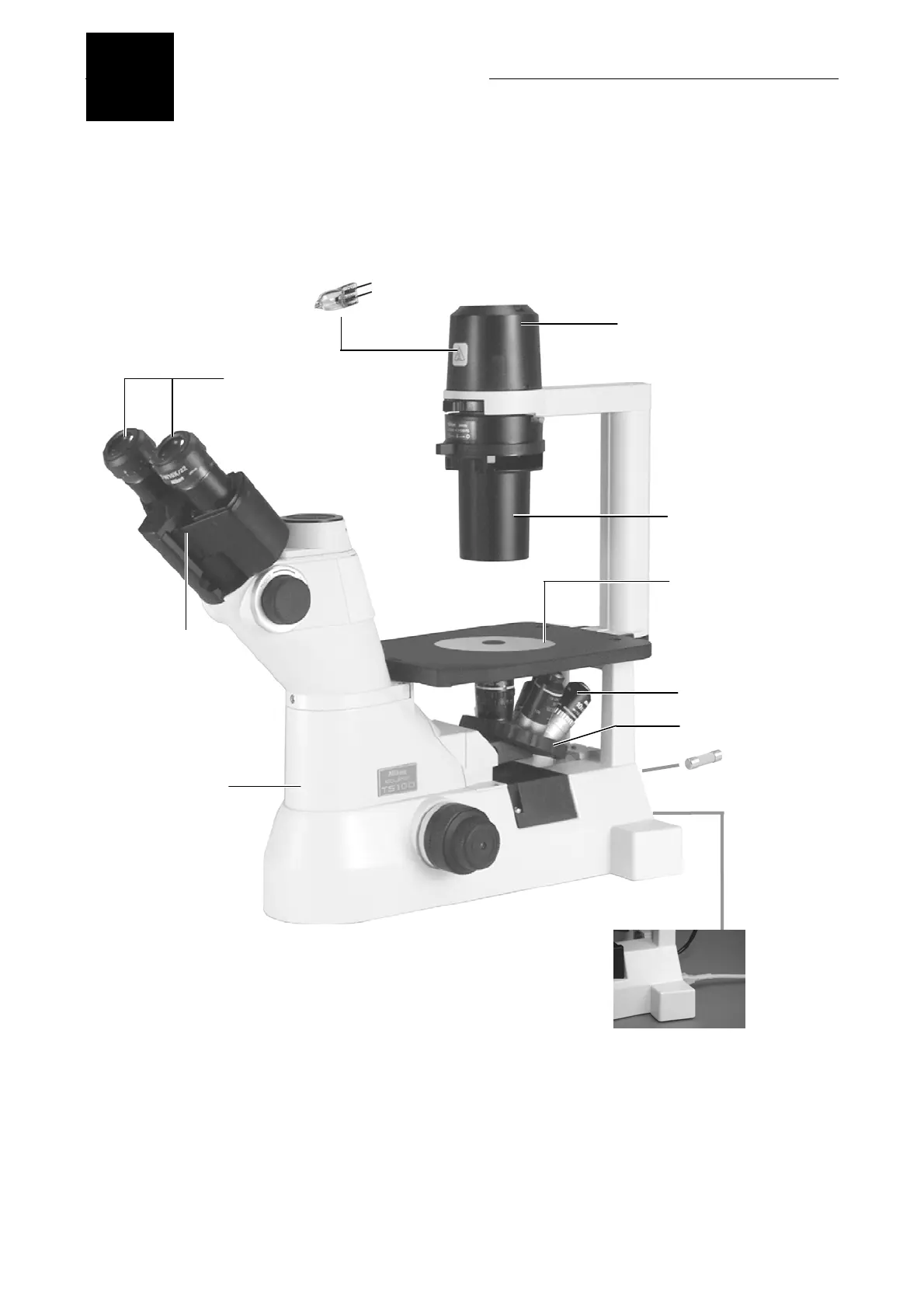

This microscope consists of the parts shown in the figure below.
*1 This photo shows an example of ECLIPSE TS100-F with ELWD condenser.
*2 The light source for ECLIPSE TS100/TS100-F is halogen lamp, and the light source for
ECLIPSE TS100LED MV/TS100LED-F MV is white LED.
*3 ECLIPSE TS100LED MV/TS100LED-F MV is designed for AC power of 100 to 240 V AC and
50/60 Hz, thus has no fuse.
Lamp
*2
Lamphouse
Stage
Condenser
Objective
Revolving nosepiece
Fuse
*3
Power cord
Main body
*1
Eyepiece tube
Eyepiece

Nikon Eclipse TS100 Specifications

General

Type	Inverted Microscope
Optical System	CFI60 infinity optical system
Power Supply	AC100-240V, 50/60Hz
Illumination	6V/30W halogen lamp
Eyepiece	10X
Objectives	4x, 10x, 20x, 40x
Observation Methods	Brightfield
Focusing	Coarse and fine focusing
Condenser	Condenser N.A. 0.3
Magnification	40x to 400x
