Nikon Eclipse TS100 User Manual

5 Assembly
2 Assembling Components Not Included in the Basic Set
E-37
3

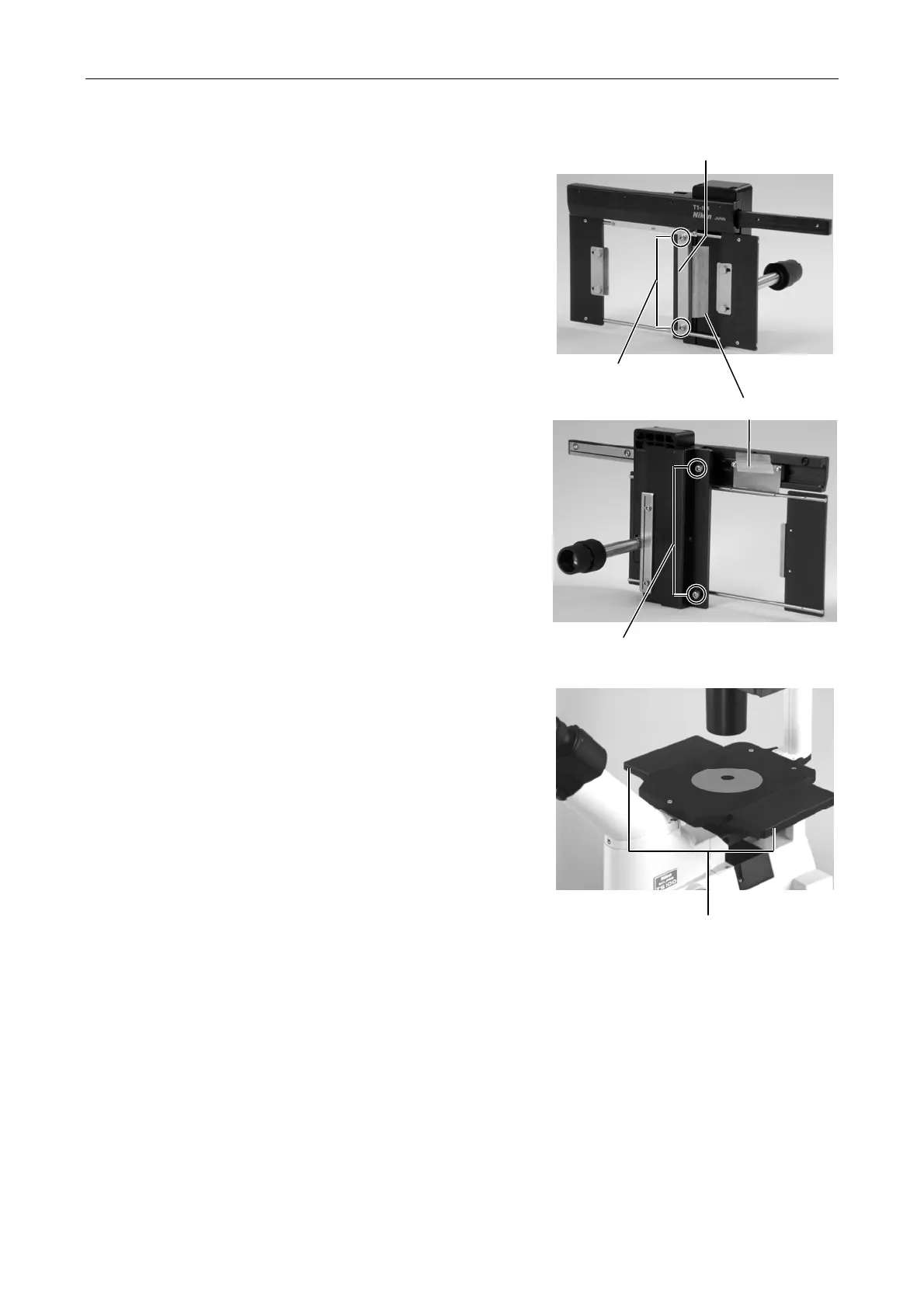

Mechanical stage
(1) Remove the round-holed or long-holed ring
from the stage if any is attached.
(2) Peal off the securing tapes for transportation
(at two locations).
(3) Loosen the bolts fixing the shipping clamp for
three turns.
(4) Place the mechanical stage on top of the
microscope stage and secure from the bottom
of the stage using two hexagonal socket head
bolts.
(5) Remove the shipping clamp from the
mechanical stage.
4
Sub-stages
Sub-stages are secured to the microscope's stage
using the screw holes for attaching a mechanical
stage.
Shipping clamp
Bolts fixing the
shipping clamp
Securing tapes
Use these bolts to secure the
stage from underside.
Sub-stages

Nikon Eclipse TS100 Specifications

General

Type	Inverted Microscope
Optical System	CFI60 infinity optical system
Power Supply	AC100-240V, 50/60Hz
Illumination	6V/30W halogen lamp
Eyepiece	10X
Objectives	4x, 10x, 20x, 40x
Observation Methods	Brightfield
Focusing	Coarse and fine focusing
Condenser	Condenser N.A. 0.3
Magnification	40x to 400x
