Nikon N Series/K Series Total Station Instruction Manual 115
Menu Key 5
7. Press [<] or [>] to display the second solution.
8. To record the point, press
[ENT] when the required
solution appears.
9. Enter a Z coordinate if necessary. Press
[ENT] to
move to the PT and CD fields.
Sample records
CO,Int DD P1:486 HD:330.6020
CO, P2:7 HD:100.0000
CC,505,,236.5817,50.0461,0.0000,

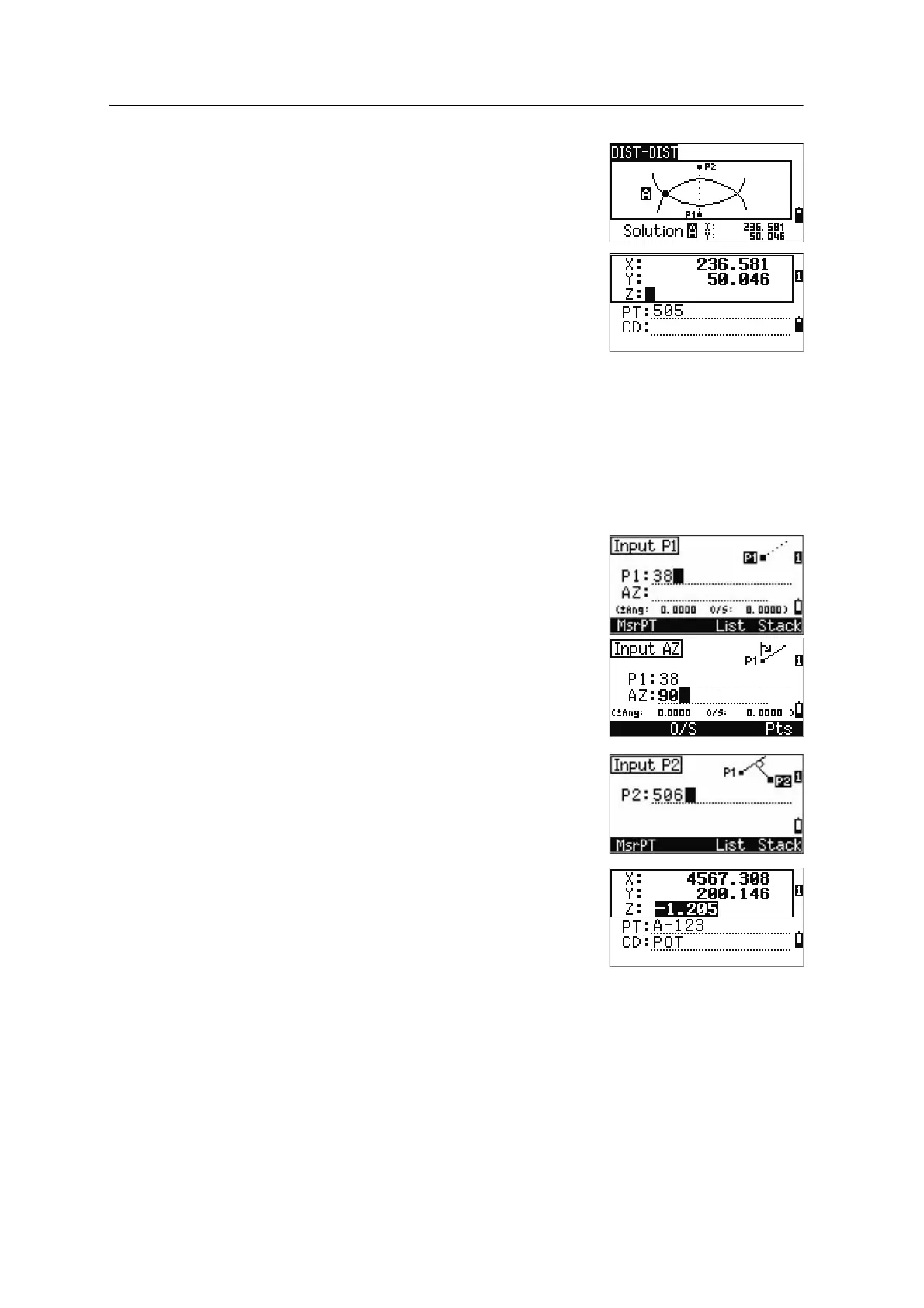

Calculating a point-line intersection
1. Press
[4] or select Pt-Line in the Intersection menu.
2. Enter the first point name and press
[ENT], or
press the
MsrPT softkey to measure directly to
the point.
3. Enter the azimuth, or press the
Pts softkey to
enter another point name on the line.
4. Enter the perpendicular point to the line, or press
the
MsrPT softkey to take a measurement to the
point.
5. To calculate the coordinates of the intersection
point, press
[ENT].
If P1 and P2 are 3D points, the Z coordinate of
the perpendicular point is calculated relative to
the P1-P2 slope.
6. Enter PT and CD then press
[ENT] to record the
point.
Sample records
CO,Int PtLine P1:38 AZ:90.00000+0.00000
CO, P2:506
CC,A-123,,4567.3080,200.1467,-1.2056,POT
