1
Int
roduction
4
Niko
n N Series/K Series T
otal Station Instruct
ion Manual

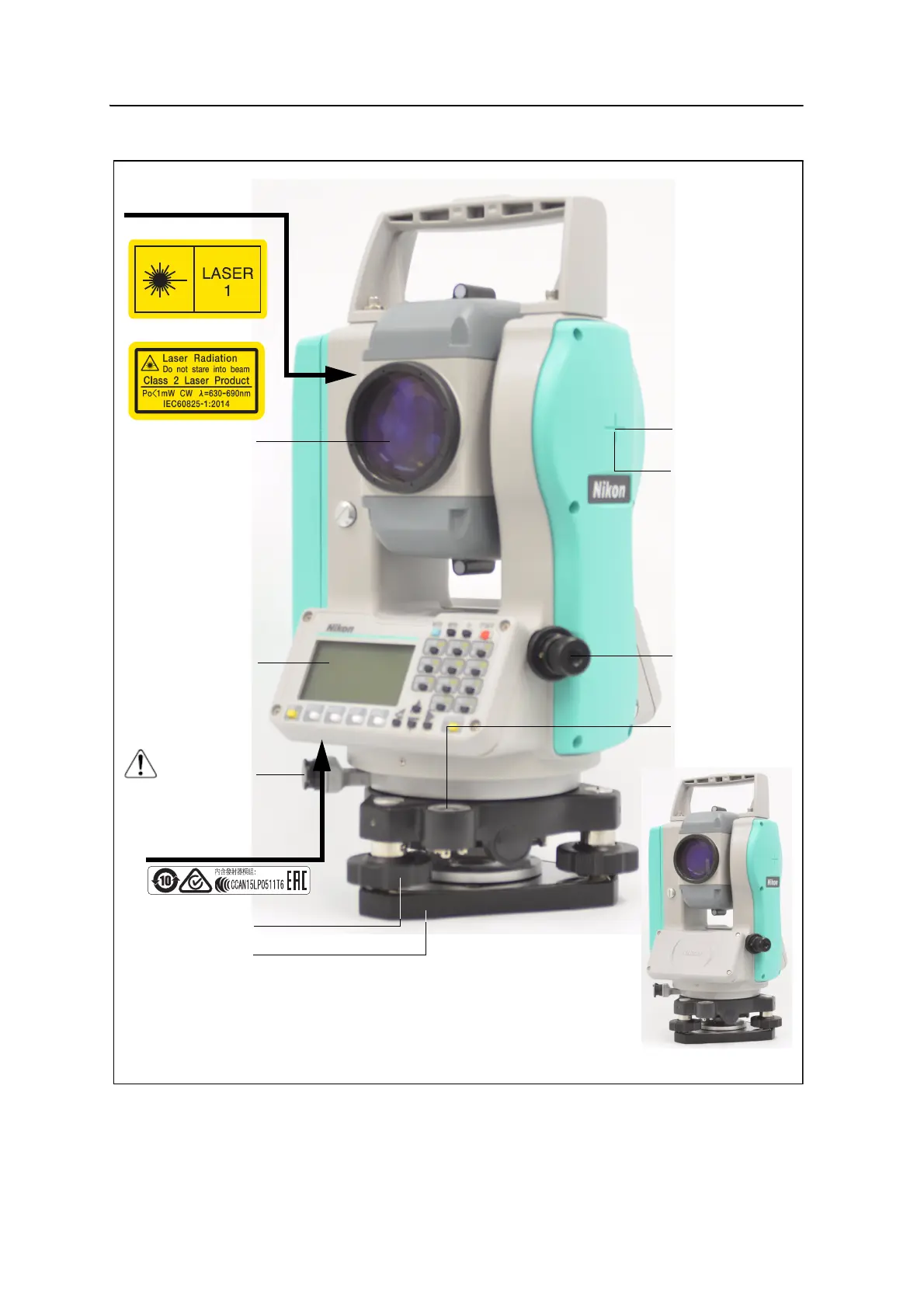

Figure 1.2
T
runnion axis
indication mark
Objective
The Laser Safety labe
l
is attach
ed here.
LASER LIGHT IS
EMITTED FROM
THIS P
ART
.
Circular level
Optical plummet
.
Leveling screw
Tr
i
b
r
a
c
h
Data output /
Input connector
(For K 2” and K 5”)
(For N 2” and N
5”)
Face-2 display /
Keyboard
(for N 2"/
K 2")
Nikon N 5"/K 5" --- Face-2
EAC label is attached here.
Nikon N 2"/K 2" --- Face-2
T
apping po
int
for NFC
21
23
Table of Contents
Default Chapter
5
Safety
5
Introduction
6
Warnings and Cautions
6
Warnings
6
Cautions
7
Laser Safety
9
Bluetooth
11
Environmental
11
Table of Contents
13
1 Introduction
19
Welcome
20
Standard Components
20
Parts of the Instrument
21
Maintenance
23
2 Preparation
25
Unpacking and Packing the Instrument
26
Unpacking
26
Packing
26
Charging the Battery Pack
26
Detaching and Re-Attaching the Battery Pack
30
Setting up the Tripod
31
Centering
31
Centering Using the Optical Plummet
31
Centering Using a Plumb Bob
32
Leveling
33
Sighting
34
Setting the Measurement Mode and Preparing the Target
35
Measurement with a Prism
35
Measurement in Reflectorless Mode (N 2" and N 5" Only)
36
Setting up the Prism Reflector
37
Adjusting the Height of the Tribrach Adapter
38
Changing the Direction of the Prism
38
Setting the Prism Constant
38
Setting the Position of the Target Plate
39
Face-1/Face-2 Measurement
39
External Device Connector
40
3 Getting Started
41
Turning the Instrument on and off
42
Turning on the Instrument
42
Turning off the Instrument
42
Selecting a Language
43
Changing Regional Configuration Pre-Sets
44
Display and Key Functions
46
Status Bar
48
Turn On/Off the Backlight and Sound
50
[DSP] Key
51
[MODE] Key
53
[COD] Key
54
[HOT] Key
55
Bubble Indicator
57
[USR] Keys
57
[DAT] Key
58
List Display
59
Inputting Data
60
Entering a Point Name or Number
60
Entering a Code
63
Advanced Feature: Searching for a Code by Using the First Character
64
Entering Values in Feet and Inches
65
Jobs
66
Creating a New Job
66
Measuring Distances
67
Sighting a Prism Reflector
67
Measuring Distances
68
Measurement Settings
69
4 Applications
71
HA Reset and Angle Operations
72
Setting the Horizontal Angle to 0
72
Entering the Horizontal Angle
72
Recording a Foresight Point after Repeat Angle Measurement
72
Face-1/Face-2 Measurement
73
Horizontal Angle Hold
74
Station Setup
74
Setting up a Station with Known Coordinates or Azimuth
74
Setting up a Station Using Multiple Point Resection
77
Advanced Feature: Viewing and Deleting a Measurement in Resection
80
Setting up the Station Quickly Without Coordinates
80
Determining Station Elevation
81
Checking and Resetting the Backsight Direction
82
Base XYZ Function
82
Two-Point Resection Along a Known Line
83
Setting up a Station for Traverse Measurement
85
Use Last
85
Stakeout
86
Specifying the Stakeout Point by Angle and Distance
87
Specifying the Stakeout Point by Coordinates
88
Advanced Feature: Specifying a Stakeout List by Range Input
90
Divline S-O
90
Refline S-O
91
Program Key
93
Measuring Distance and Offset Values Along a Specified Line
93
Measuring Distance and Offset Values on the Arc-Curve
95
Remote Distance Measurement
99
Measuring Remote Elevation
101
Measuring Distance and Offset Values on the Vertical Plane
102
Measuring Distance and Offset Values on the Slope
104
Recording Measurement Data
105
Recording Data from any Observation Screen
105
Outputting Data to the COM Port
106
Measuring Offsets
107
Measuring Taped Offsets
107
Measuring Angle Offsets
108
Two-Prism Pole
109
Extending a Line by Horizontal Angle Offset
110
Entering a Horizontal Distance after an Angle-Only Shot
111
Calculating a Corner Point
112
Measuring Circle Offsets
113
Extending the Slope Distance
114
5 Menu Key
115
Introduction
116
Job Manager
116
Opening an Existing Job
116
Creating a New Job
117
Deleting a Job
118
Setting the Control Job
118
Displaying Job Information
119
Cogo
120
Calculating Angle and Distance between Two Coordinates
120
Calculating and Manually Inputting Coordinates
122
Traverse Adjustment
124
Calculating Area and Perimeter
127
Advanced Feature: Entering a Range of Points
128
Calculating Coordinates from Line and Offset
129
Calculating Coordinates Using Intersection Functions
130
Advanced Feature: Entering Angle and Distance Offsets
134
Settings
135
Angle
135
Distance
136
Coordinate
137
Power Saving
137
Communications
138
Stakeout
138
Unit
138
Recording
139
Others Settings
139
Data
140
Viewing Records
140
Deleting Records
144
Editing Records
145
Searching Records
148
Entering Coordinates
150
Point Name List and Code List
150
Communication
154
Downloading Data
154
Uploading Coordinate Data
155
Advanced Feature: Editing the Data Order for Upload
156
Uploading a Point Name List or Code List
157
NFC (Near Field Communication)
158
1Sec-Keys
158
[MSR] Key Settings
158
[DSP] Key Settings
159
[USR] Key Settings
159
[S-O] Key Settings
160
[DAT] Key Settings
160
Calibration
160
Time
161
6 Checking and Adjustment
163
Checking and Adjusting the Circular Level
164
Adjusting the Electronic Level
164
Checking and Adjusting the Optical Plummet
164
Zero Point Errors of Vertical Scale and Horizontal Angle Corrections
165
Checking
165
Adjusting
166
Checking the Instrument Constant
167
7 System Diagrams
169
System Components
170
8 Communications
173
Uploading Coordinate Data
174
Settings
174
Record Format
174
Uploading Point Lists and Code Lists
176
Settings
176
File Format
176
Data Example
177
Downloading Data
178
Settings
178
Nikon Raw Record Formats
178
Sdr2X and SDR33 Record Formats
181
Data Examples
185
9 Error Messages
189
Cogo
190
Communications
190
Data
191
Job Manager
192
Programs
192
Recording Data
193
Searching
194
Settings
194
Stakeout
194
Station Setup
195
System Error
196
