Nikon N Series/K Series Total Station Instruction Manual 71
Applications 4

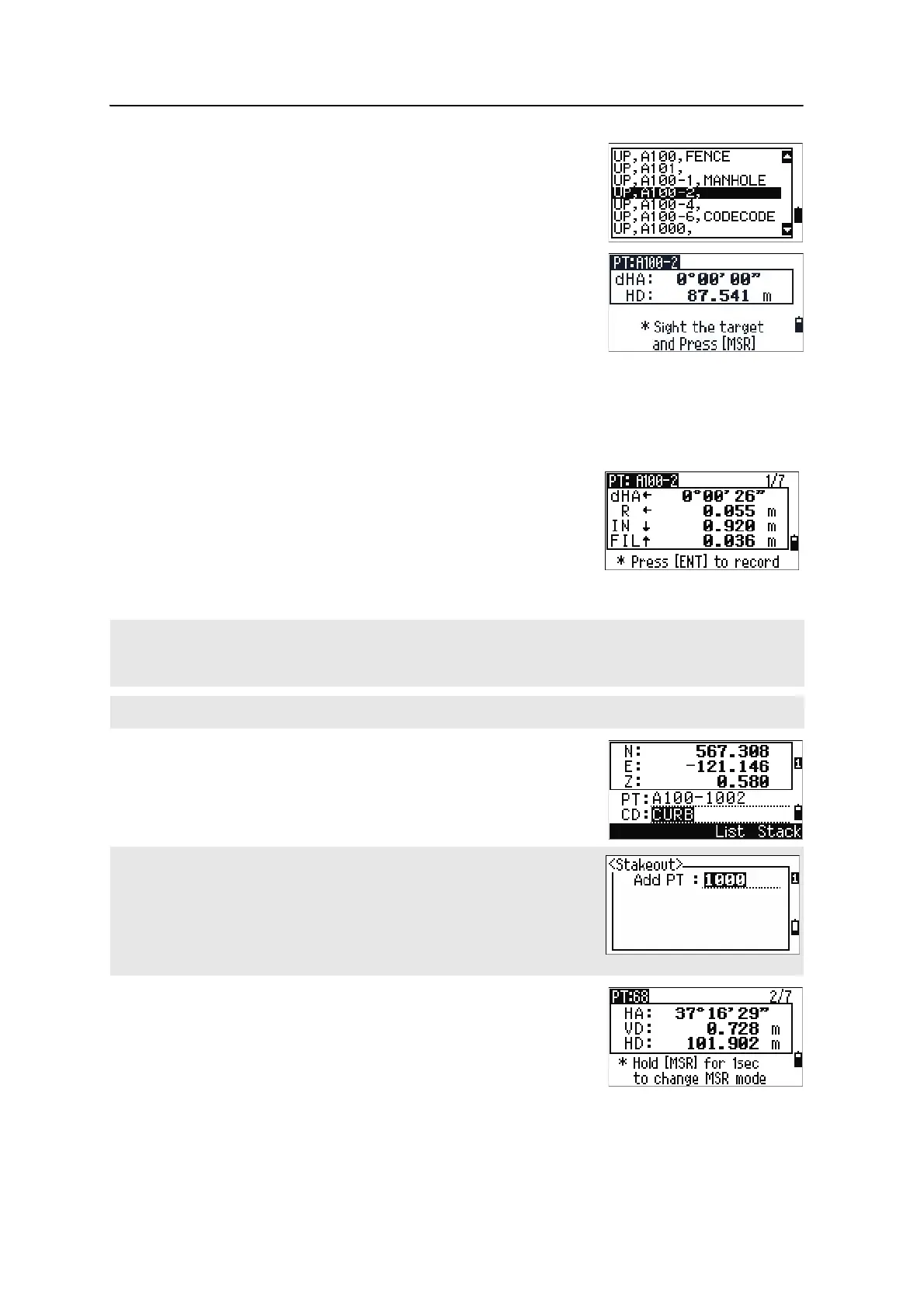

If several points are found, they are displayed in
a list. Use
[^] or [v] to move up and down the list.
Use
[<] or [>] to move up or down one page.
3. Highlight a point in the list and press
[ENT].
The delta angle and the distance to the target are
shown.
4. Rotate the instrument until the dHA is close to
0°00'00". Press
[MSR1] or [MSR2].
5. Ask the rodman to adjust the target position.
When the target is on the intended position, the
displayed errors become 0.000 m (or 0.000 ft).
6. To record the point, press
[ENT]. PT defaults to the
specified PT + 1000.
After recording the point, the display returns to the
observation screen. When you press
[ESC], the display
returns to the PT/CD/R input screen. If you entered the
stakeout point using a single point name, the PT
defaults to the last PT + 1.
dHA Difference in horizontal angle to the target point
HD Distance to the target point
dHA Difference in horizontal angle to the target point
R/L Right/Left (Lateral error)
IN/OUT In/Out (Longitudinal error)
CUT/FILL Cut/FilL
To switch between display screens, press [DSP]. This function works as in the angle-distance stakeout, except
that the screen counter (for example, S-O1/8) is not displayed. For more information, see Using [DSP] to switch
between display screens, page 70.
Once a measurement is taken, the Cut/Fill value and Z coordinate are updated as the VA is changed.
Use the Add Constant field in MENU > Settings > Stakeout to
specify an integer that is added to the point number being staked to generate
a new number for recording the staked point. The default value is 1000. For
example, when you stake out PT3 with an Add Constant of 1000, the default
number for SO record is 1003. For more information, see Stakeout, page 120.
