HMI Control panel
Moving the control panel
The control panel is from the factory mounted in the front of the unit. It is important that the control panel is located in a visible place
so that the user can follow the unit operation and become aware of any alarms. Therefore, it may be necessary to move the control
panel to another location.
A cover plate can be purchased for mounting in the hole in the front of the unit where the control panel is located from the factory.
The wires from the 8-pin plug, for connection of the HMI control panel, are placed loose in the unit and must be connected to the circuit
board (according to the wiring diagram), where the wires from the front-connection are removed.
Nilan offers a connection cable with RJ12 plugs of 10 m and 20 m, respectively. It is also possible to customize a cable up to 50 m in
length. A standard LAN cable is used for this.
Wall bracket
Mount the HMI panel on the wall using the integrated wall bracket.
The panel should be placed in a visible spot so it is possible to change settings and to monitor warnings or alarms regarding operation
of the unit.

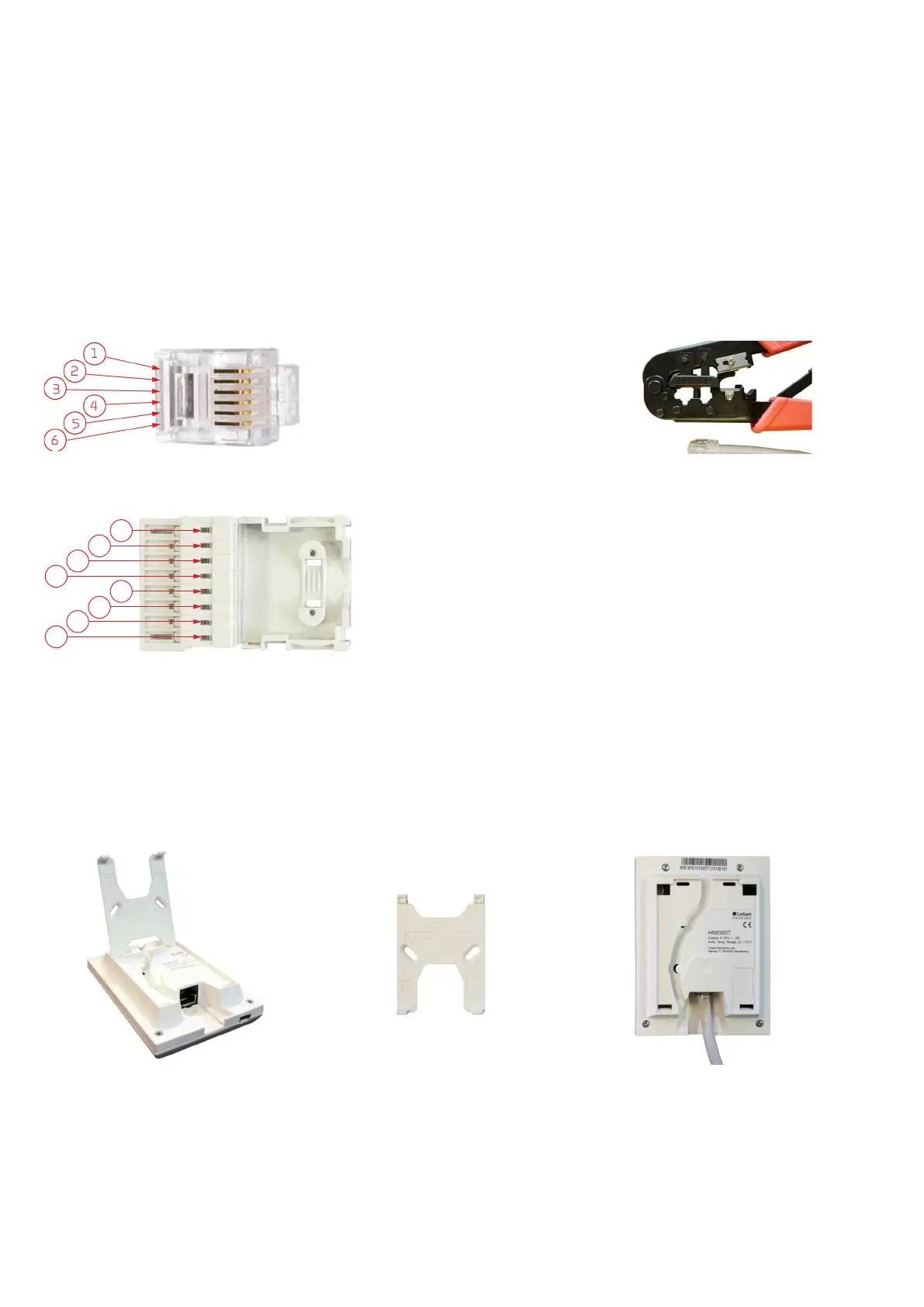

Mounting the RJ12 plug
1. Empty
2. Empty
3. Green (A2)
4. Green/white (B2)
5. Brown (12V)
6. Brown/white (GND)
Use a RJ12 crimping tool
Mounting in the 8-pin plug
1. Brown/white (GND)
2. Green/white (B2)
3. Green (A2)
4. Empty (User selection 1)
5. Empty (User selection 1)
6. Empty (Modbus A1)
7. Empty (Modbus B1)
8. Brown (12V)
The wall bracket is located at the back of
the panel. You can detach it by loosening
the bracket at the bottom of the panel.
You can then remove it.
Mount the wall bracket on the wall using
2 screws.
Click the RJ12 plug into place at the bot-
tom of the HMI panel. The wire can run
down along the wall, into the wall or
through the groove at the back of the
panel.
1
2
3
4
5
6
7
8
