Installation of expansion PCB on CTS602 circuit board
With an expansion PCB, it is possible to expand the functions within the control system. It makes it possible for you to add accessories
as shown on the following pages.

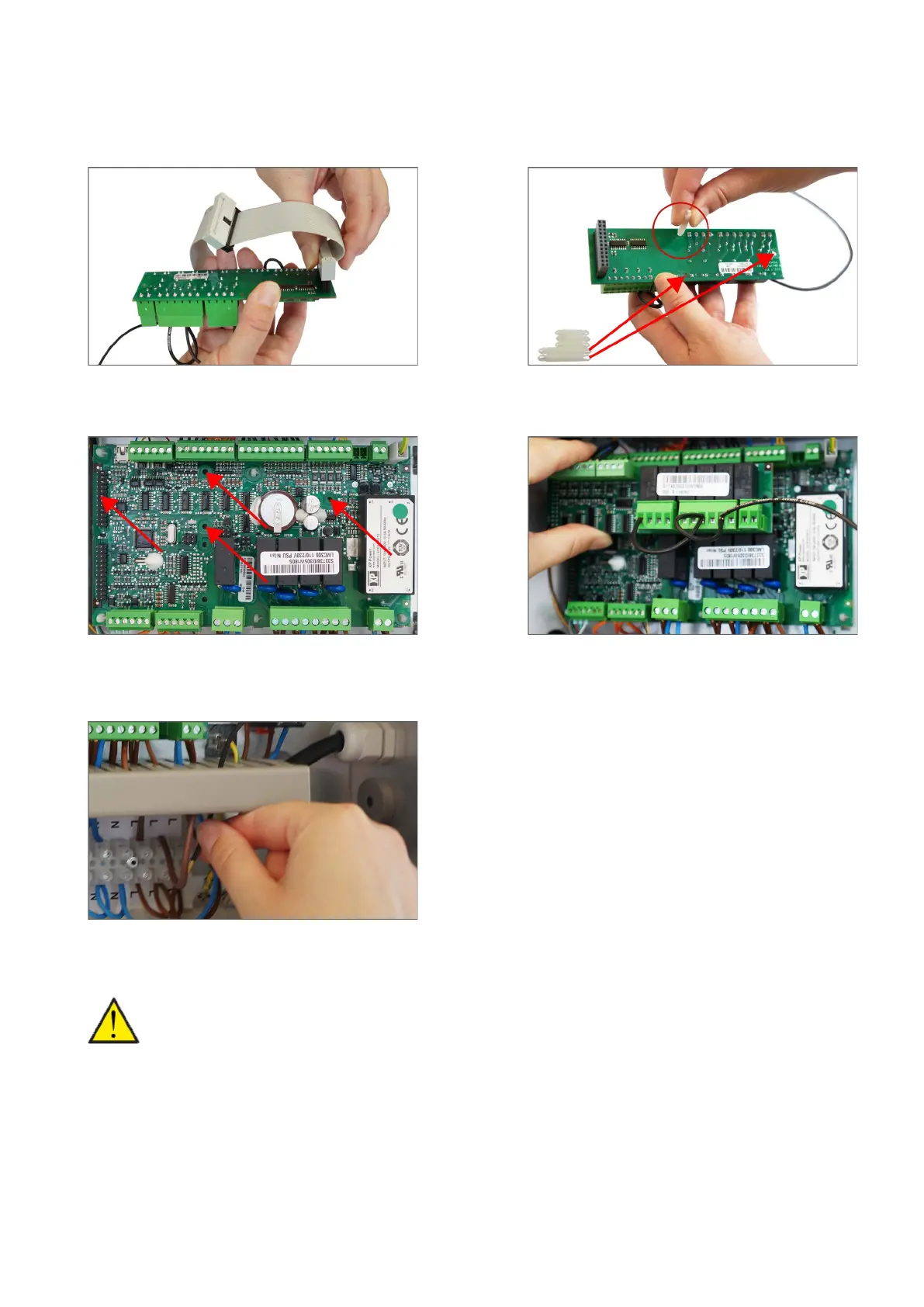

1. Demount the shown bus cable from the expansion
PCB.
2. Mount the large circuit board supports in the 3 holes
on the expansion PCB.
3.Connect the expansion PCB to CN9. Mount the circuit
board supports in the holes provided for this on the
CTS602 Light circuit board.
4. Mount the expansion PCB on the CTS602 Light circuit
board.
5. Connect the wires up in accordance with the wiring
diagram.
ATTENTION
The expansion PCB and the connections must be installed by a certified electrician.
The expansion PCB is an accessory for the CTS602 circuit board. Nilan does not supply external components.
