Hot water tank
Connections overview
The scalding fuse is delivered together with the unit and must be installed by a plumber.
Connection “RS”
The efficient foam insulation protects against unnecessary heat loss.
All connection nozzles for water are 3/4" threaded and are located in the bottom of the tank.
The hot water tank is equipped with a 1.5 kW supplemental electric heating which is deactivated by default and must be activated via
the control panel if required.

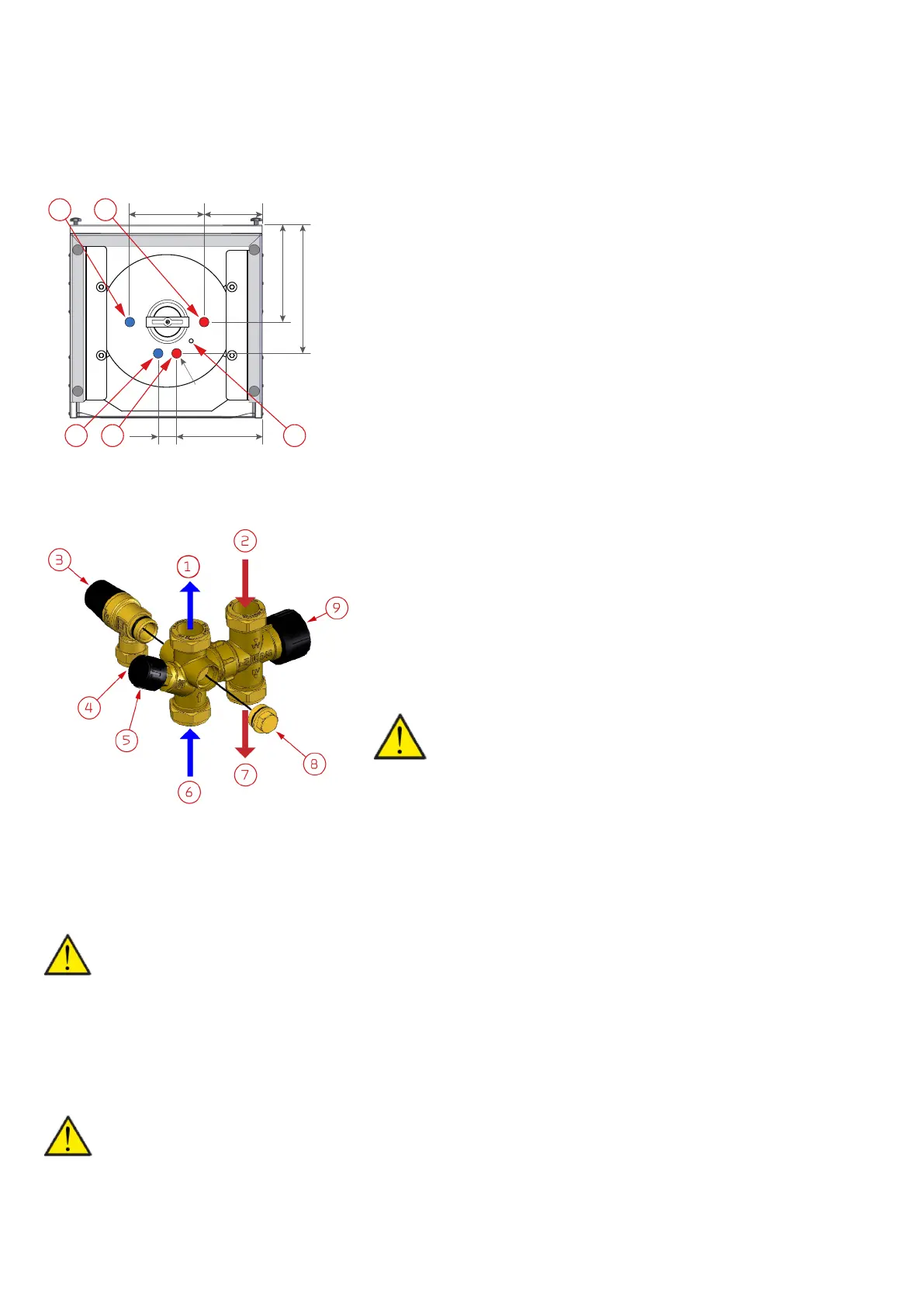

Unit bottom view
Connections:
1. Cold water
2. Hot water
3. Return supplementary coil
4. Supply supplementary coil
5. Thermowell T12
1. Cold water for water heater
2. Hot water from water heater
3. Safety valve 9 Bar
4. Overflow from safety valve
5. Shut-off valve
6. Cold water in
7. Mixed hot water out
8. Half inch flanged blanking plug
9. Thermostatic mixing valve 38°C to 65°C
If there is a desire to install an expansion vessel to prevent the
safety valve from draining water from the tank during heating, in-
stall it on the cold water side - remove the flanged blanking plug (8)
and connect.
This expansion vessel must have a pre-pressure of 5 bar and must
be suited for domestic water. It is also possible to mount the ex-
pansion vessel on the hot water side.
ATTENTION
All work must be carried out by qualified personnel and in compliance with existing legislation and regulations.
ATTENTION
The supplemental electric heating must not be activated before the water tank is filled with water.
272
Ø22
55
185230
315
415
21
43
5
Front
Backsite
