Electrical installation
Safety
ATTENTION
All work must be carried out by qualified persons and in compliance with existing legislation and
regulations.
ATTENTION
It is important that the power is off, if you do work to the electrical components of the unit.
It is important to check that wires are not damaged or squeezed during connection and use.
Connections overview

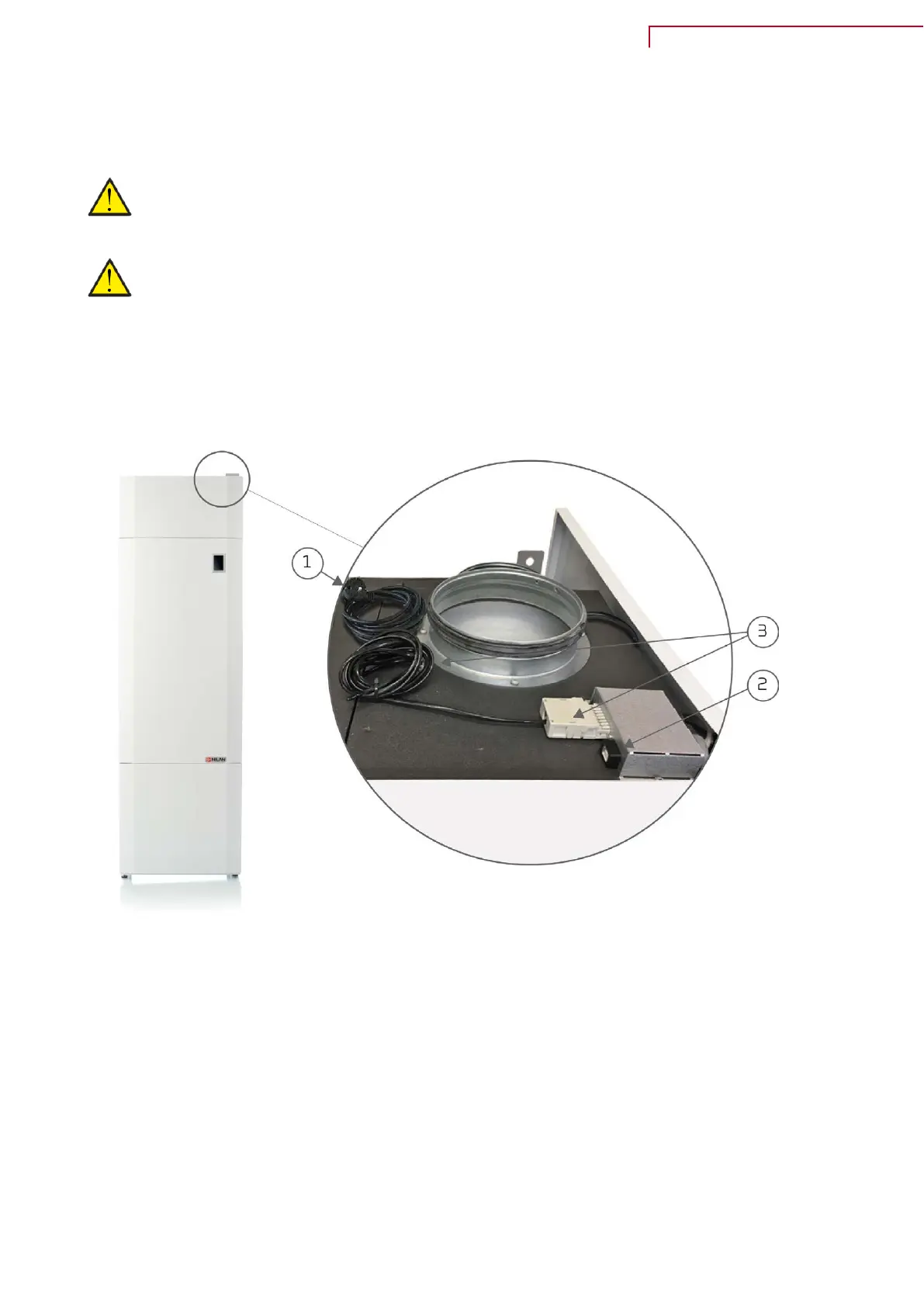

All electrical connections are located on top of the unit.
1. Connection of 230V power supply via plug (remember electrical grounding)
2. Connection of PC or router via USB cable
3. 8-pole plug with options for connecting user selection 1, Modbus and control panel / T1 sensor.
