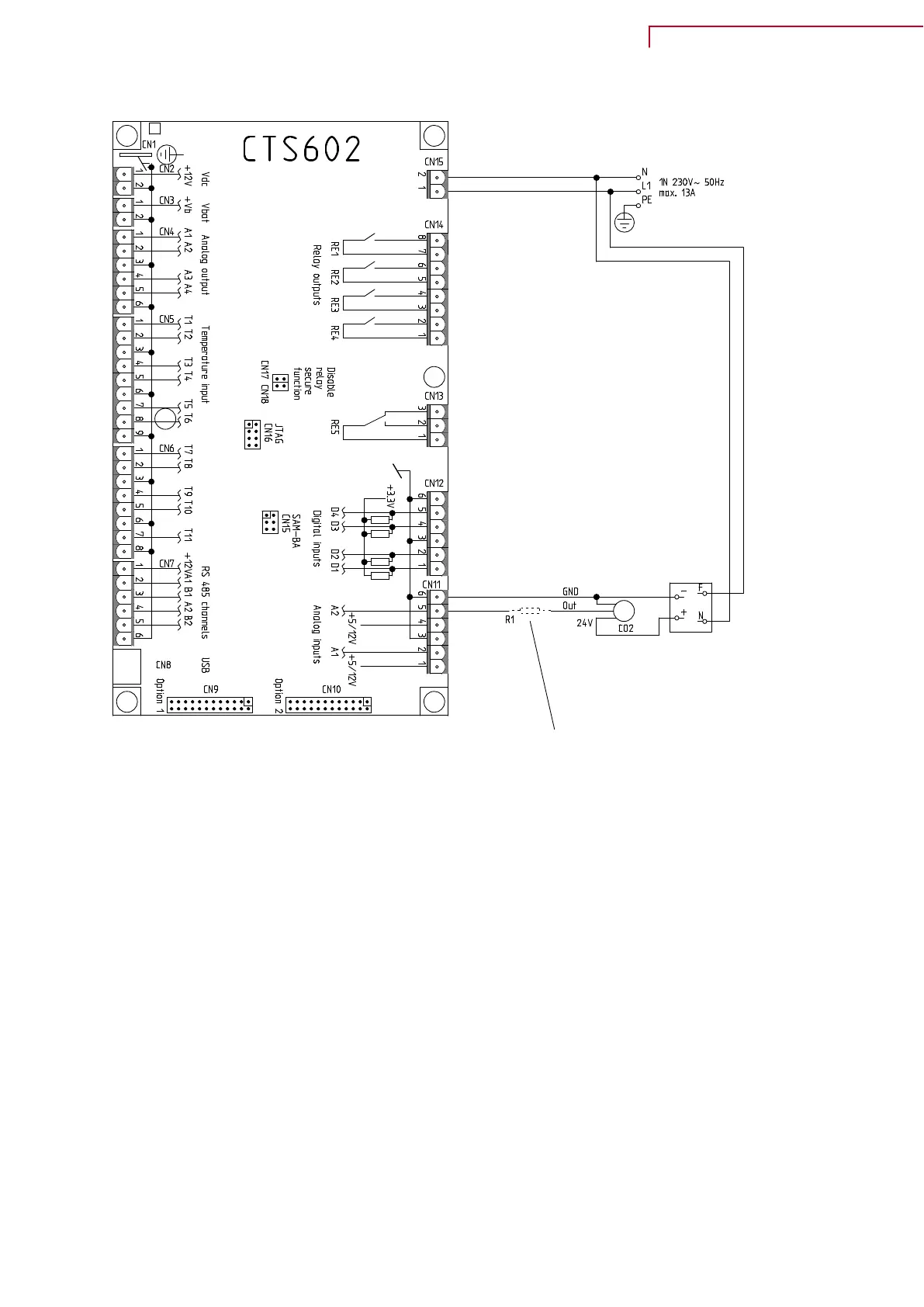

Run the wire from the CO
2
sensor to the circuit board and connect it as shown below:
Pre-fuse
Resistor
For software version 2.00x and below, the resistor must be connected in series with ab
lack signal wire.
For software version 2.01x and above, NO resistor should be installed.
VP18 M2 (English)
BY NILAN
19
