OVERVIEW
The ZR-6 MultiZone Receiver is equipped with preamplifi er outputs for zones 4, 5, and 6 to connect external amplifi ers.
PREAMPLIFIER OUTPUTS
Zones 4, 5, and 6 have preamplifi er outputs used to connect an external power amplifi er. If an area is particularly large or requires a high
volume level, it is advised to assign it to zone 4, 5, or 6 and then connect an external amplifi er such as a Niles Systems Integration Amplifi er
to provide additional power to the loudspeakers. The preamplifi er outputs can be switched between a fi xed or variable level during system
setup.
12V TRIGGER OUTPUT
Zones 4, 5 and 6 each have a dedicated 12V Control Output that sends out a constant 12V DC voltage when the respective zone is active.
The Global 12V Control Output will send out a constant 12V DC trigger signal when any zone is active. These triggers can be used to
automatically switch on an amplifi er equipped with a 12V trigger turn-on, such as a Niles Systems Integration Amplifi er.
ADDING AN EXTERNAL AMPLIFIER T0 ZONE 4, 5 AND 6
SYSTEM WIRING DIAGRAMS

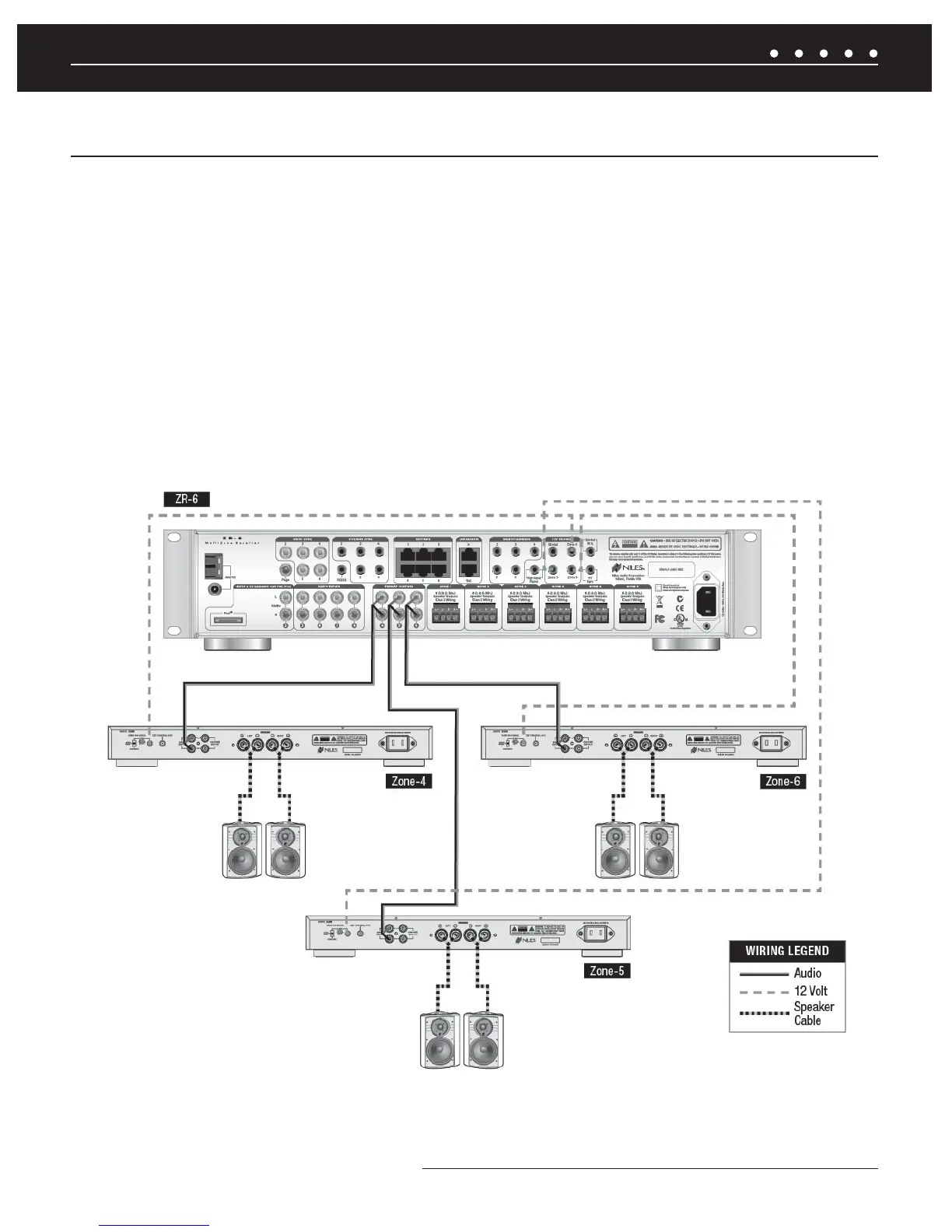

Figure 9. ZR-6 MultiZone Receiver with external amplifi ers in zones 4, 5, 6
