1) LCD DISPLAY — Provides source metadata, zone, and keypad information.
2) SOFT KEYS — The function of these keys appears in the LCD screen above and changes
based on the source or menu selected.
3) NILES KEY — Press to access the source selection menu. Press-and-hold for three
seconds to access the keypad setup menu. Press-and-hold for ten seconds to access the
keypad confi guration menu. With the Zone off and the keypad backlight off, it selects the last
played source.
4) RADIO KEY — Provides One Touch To Entertainment
™
simplicity for the AM/FM tuner.
5) OFF KEY — Press this key to turn the local zone off. Press-and-hold this key for three
seconds to turn off all zones.
6) iPod KEY — Provides One Touch To Entertainment
™
simplicity for the connected iPod.
7) CONTROL KEYS — Include Volume Up and Volume Down plus playback functions such as
Play, Pause, Previous, and Next.
8) MUTE KEY — Mutes the sound in the zone
9) LS-IOP CONTROL OUTPUT — A 12V control output that activates when the keypad
is on.
10) SYSTEM PORT — An RJ-45 jack is used to connect the keypad to the Keypad Port of
the ZR-6 MultiZone Receiver.

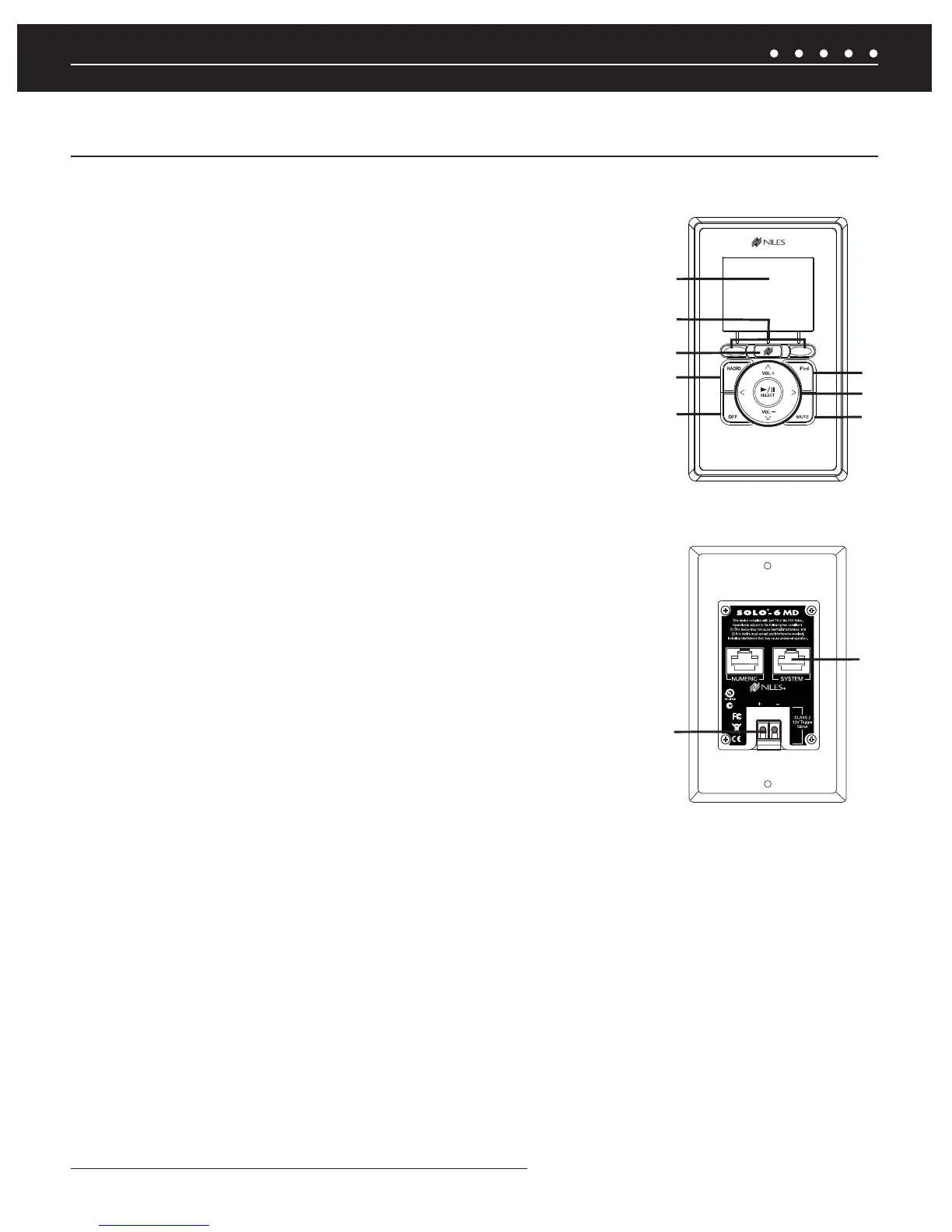

SOLO-6MD WEATHER-RESISTANT MASTER KEYPAD (SOLD SEPARATELY)
SYSTEM PARTS GUIDE
2
1
6
5
3
4
Front Panel of Solo-6MD
8
7
10
Rear Panel of Solo-6MD
9
