1) LED ZONE ON/OFF INDICATORS — Individually illuminate when the corresponding zone is active, turn off when the zone
is off, and provide diagnostic information about the zone.
2) MAIN POWER SWITCH — Push-button, latching switch turns the main power to the ZR-6 MultiZone Receiver ON and OFF.
3) BAND, SET, –, AND + PUSH BUTTONS — Used to operate the AM/FM tuner, set favorite preset stations into memory,
and perform system confi guration operations.
4) BACKLIT LCD DISPLAY — Two-line, 16-character, LCD display shows current tuner preset, band, programming, diagnostics
information, and menus during confi guration.
5) PROGRAMMING PANEL — Behind a removable cover are the installer programming buttons and connections.
6) RACK MOUNT EARS — Two metal rack-mount ears are included and can be attached for installing the ZR-6 MultiZone
Receiver into a professional rack.
SYSTEM PARTS GUIDE
1
2
4
3
5
6

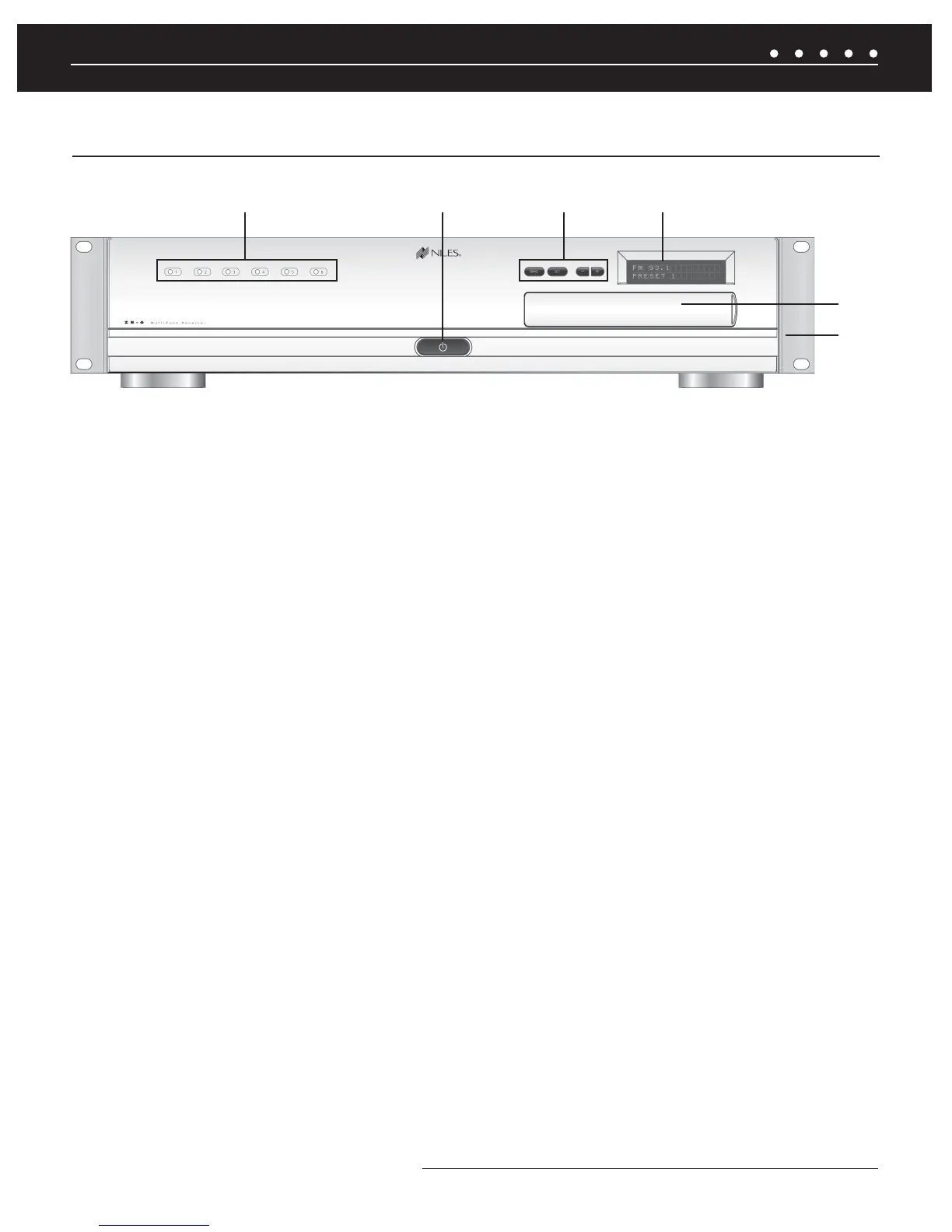

ZR-6 MULTIZONE RECEIVER FRONT PANEL
(CONTINUED ON NEXT PAGE)
