ENGLISH INSTRUCTIONS FOR USE
10 SC401 - 9100002290
09/2017

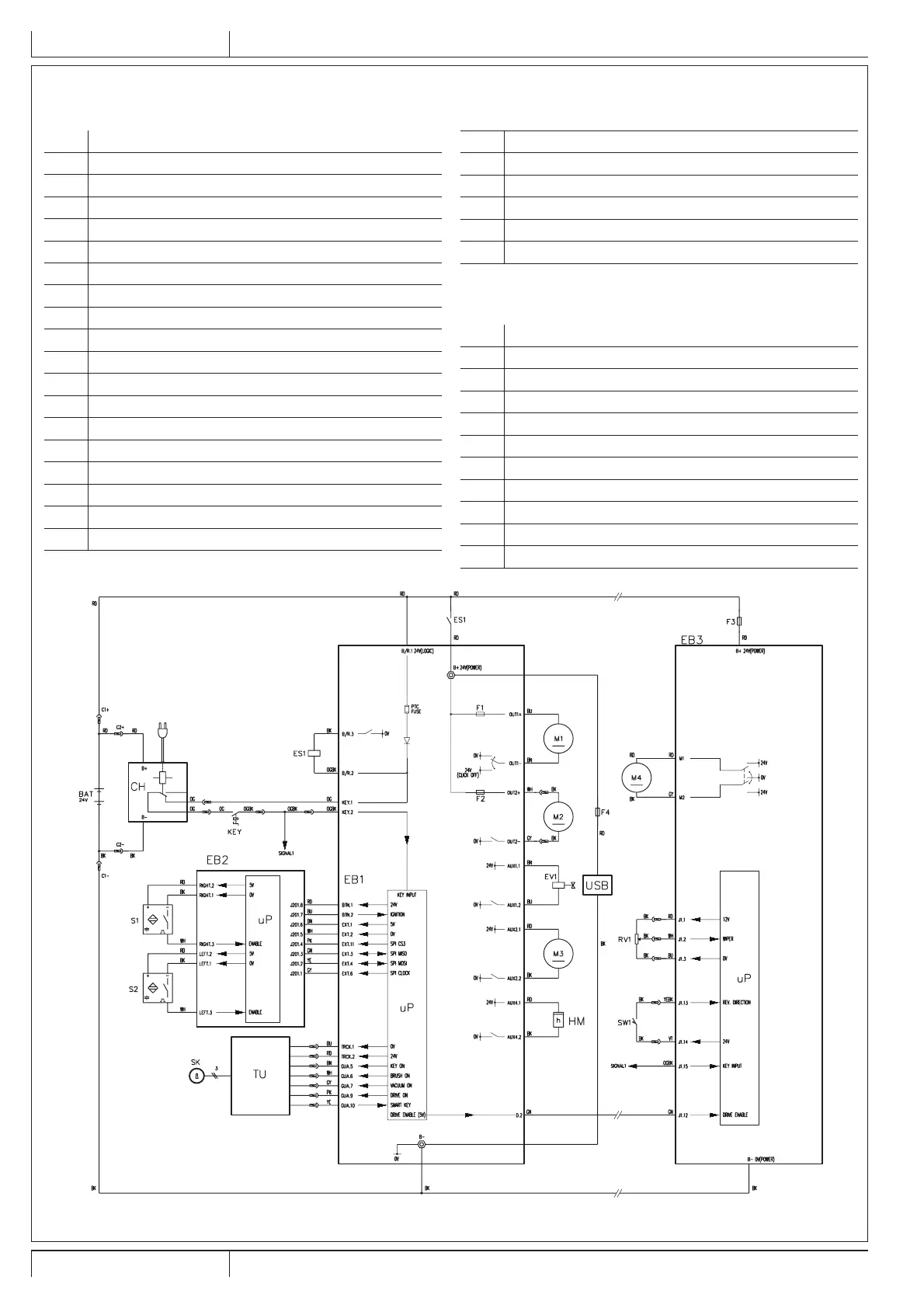

WIRING DIAGRAM
Key
BAT 24 V batteries (*)
C1 Battery connector
C2 Battery charger connector
CH Battery charger
EB1 Function electronic board
EB2 User interface electronic board
EB3 Drive system electronic board (drive)
ES1 Function electronic board relay
EV1 Solenoid valve
F1 Brush motor fuse
F2 Vacuum motor fuse
F3 Drive system motor fuse (drive)
F4 USB port fuse (optional)
HM Hour counter (optional)
KEY Ignition key (*)
M1 Brush motor
M2 Vacuum system motor
M3 Detergent pump (*)
M4 Drive system motor (drive)
RV1 Speed potentiometer (drive)
S1,S2 Operators presence sensor
SK Smart key (optional)
SW1 Reverse gear switch (drive)
TU Trackclean (optional)
USB USB port (optional)
(*) Optional for BASIC versions
Color codes
BK Black
BU Blue
BN Brown
GN Green
GY Grey
OG Orange
PK Pink
RD Red
VT Violet
WH White
YE Yellow
P100947
