ENGLISH INSTRUCTIONS FOR USE
6 SC401 - 9100002290
09/2017
MACHINE DESCRIPTION

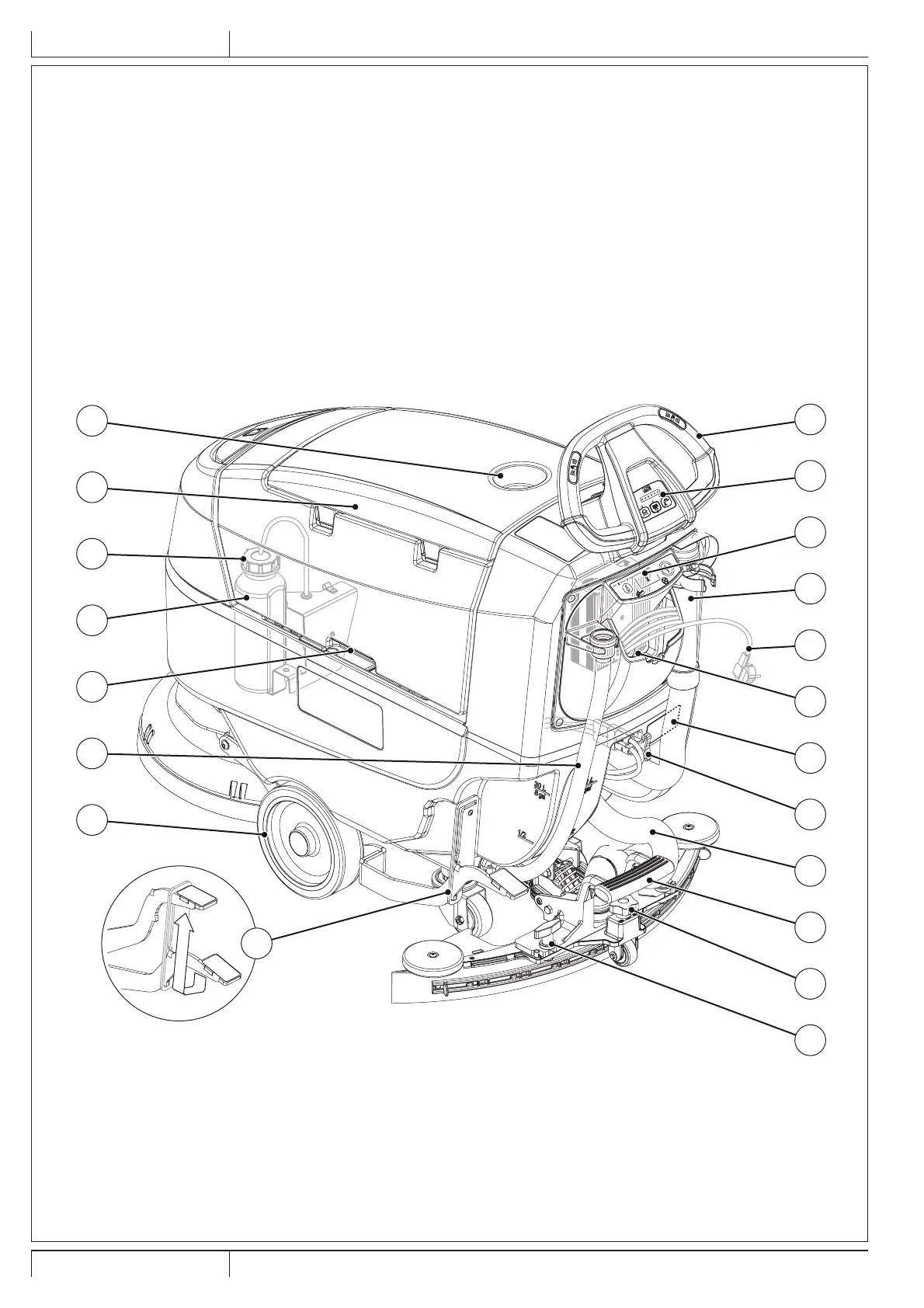

MACHINE STRUCTURE
1. Drive handlebar
2. Control panel (see the following paragraph)
3. Serial number plate/technical data/conformity certication
4. Battery charger
5. Battery charger cable
6. Battery charger cable housing and document holder
7. Squeegee lifting/lowering pedal
8. Battery connector (red).
This connector also works as EMERGENCY push-button,
to stop immediately all functions.
9. Front driving wheels (*)
10. Brush deck lifting/lowering pedal
A) Pedal position for lifted deck
B) Pedal position for lowered deck
11. Squeegee vacuum hose
12. Recovery water drain hose
13. Solution drain and level check hose
14. Squeegee mounting handwheels
15. Squeegee adjusting knob
16. Tank lifting handle
17. Detergent System detergent canister (optional)
18. Detergent canister plug (optional)
19. Recovery tank cover
20. Can holder
(*) Only for drive version
1
20
19
18
17
16
13
9
2
4
12
5
6
3
8
11
7
15
14
10
A
B
P100944
