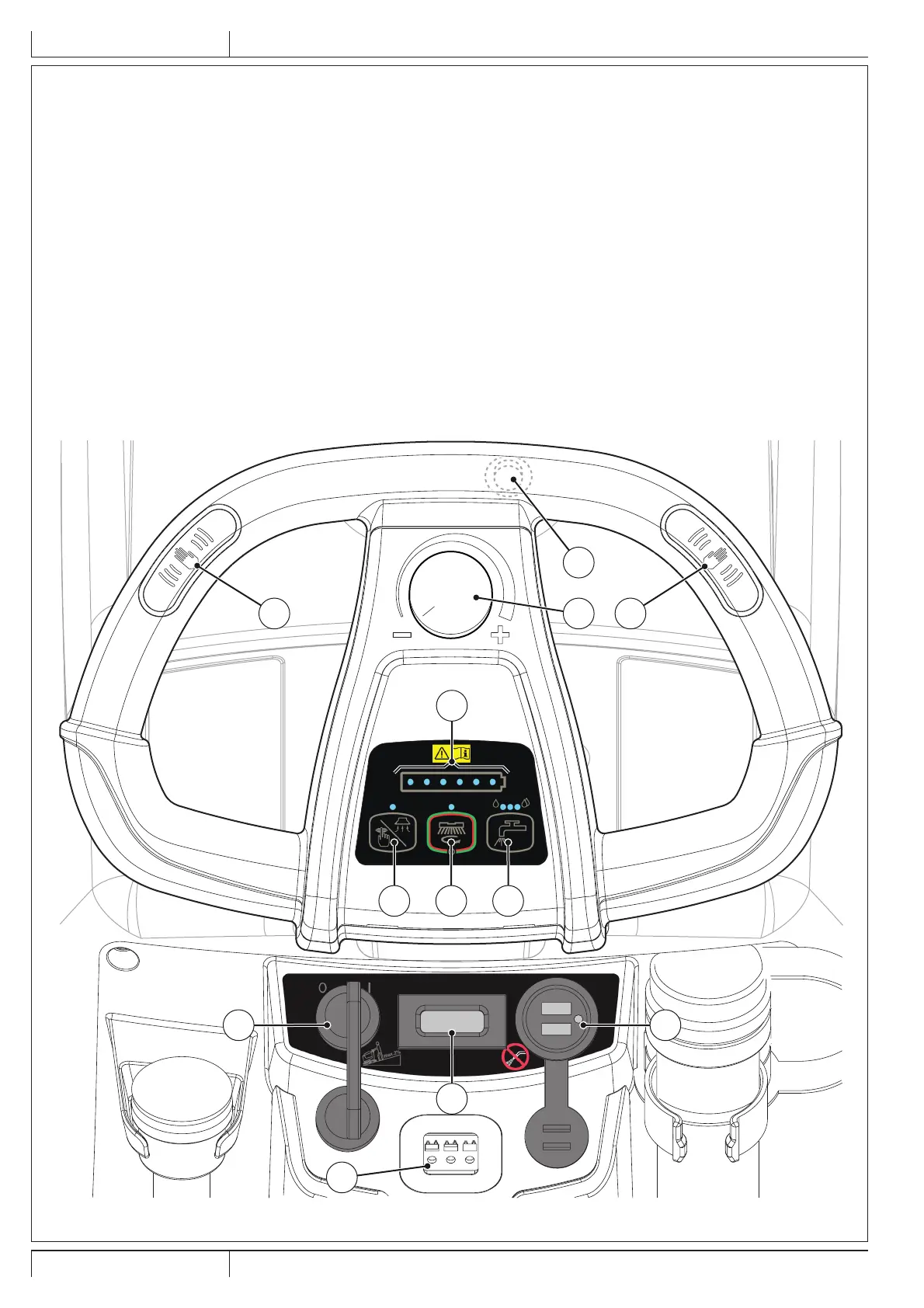

CONTROL PANEL
41. Ignition key (optional, standard on drive version)
42. Main machine start and stop push-button:
• LED on - machine scrubbing/drying
• LED ashing - brush engage/disengage function
43. Solution push-button:
• Left LED on - minimum solution ow
• Central LED on - medium solution ow
• Right LED on - maximum solution ow
• LEDs o - solution deactivated
44. Vacuum system push-button:
• LED on - vacuum system activated
• LED ashing - silenced vacuum system activated
45. Battery symbol:
• 1 ÷ 6 LEDs on - battery charge level
• 1 LED ashing - discharged batteries
46. Operator's presence sensors
47. Speed adjuster (*)
48. Reverse gear switch (*)
49. Hour counter (optional)
50. USB port (optional)
51. Battery charger inspection window:
• Green LED (the battery charger is on and batteries are
charged)
• Yellow LED (the battery charger is on and batteries are
semi-discharged)
• Red LED (the battery charger is on and it is charging
the batteries)
(*) Only for drive version
48
47 4646
45
42
49
5041
51
4344
P100946
