INSTRUCTIONS FOR USE ENGLISH
9100002290 - SC401 7
09/2017

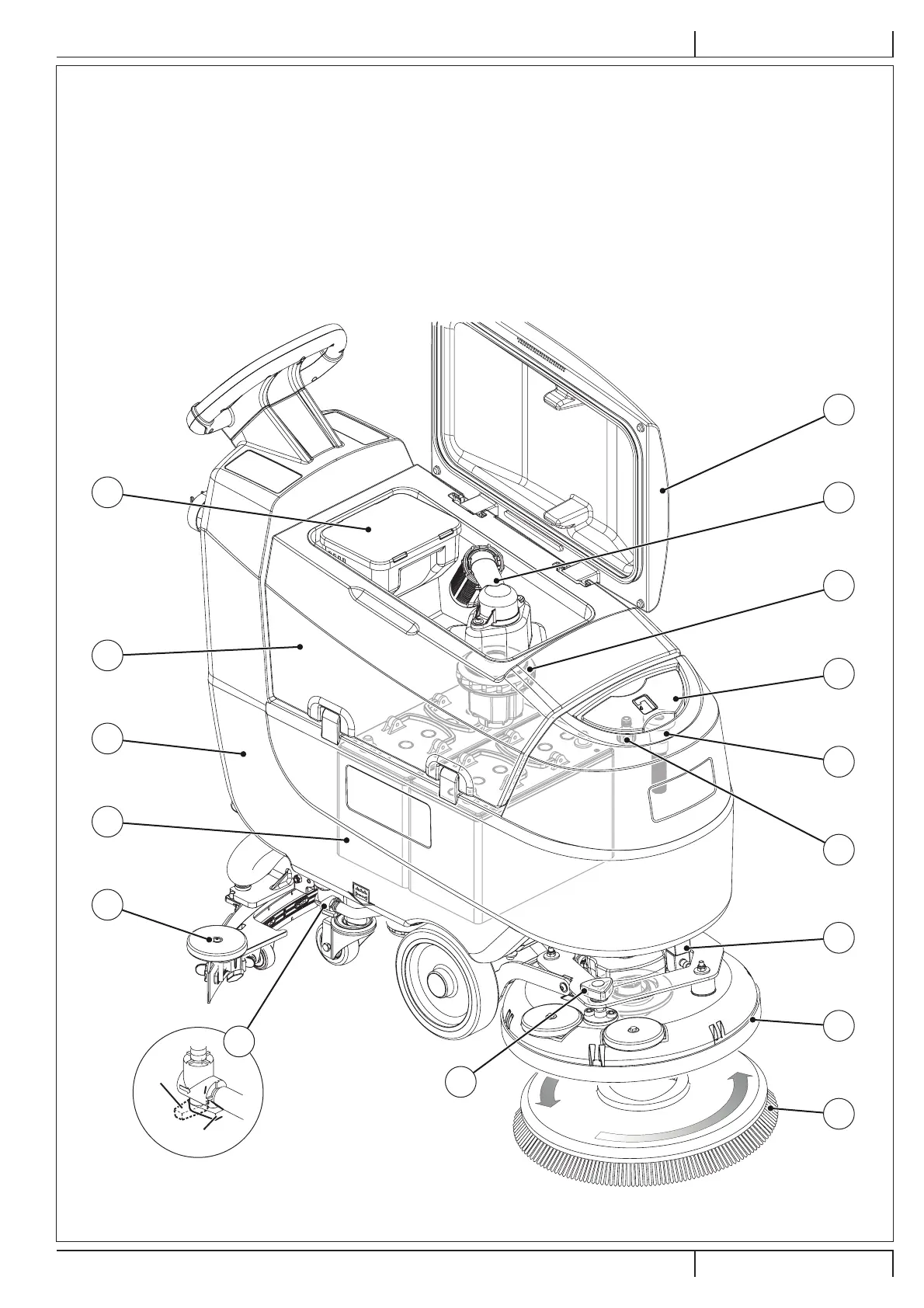

MACHINE STRUCTURE (Continues)
21. Solution tank
22. Solution tank ller plug
23. Removable solution feed hose
24. “Garden” intake for loading the solution
25. Solenoid valve
26. Disc brush deck
27. Brush
28. Solution valve:
A) Open valve
B) Closed valve
29. Squeegee
30. Debris collection tank
31. Vacuum grid with automatic shut-o oat
32. Vacuum system motor
33. Recovery tank
34. Recovery water tank cover (open)
35. Machine forward speed adjusting knob
36. Batteries (optional)
B
A
30
33
21
36
29
35
28
34
31
32
22
23
24
25
26
9
P100945
9100002290(A)09-2017.indb 7 24/10/2017 14:23:59
