82 - FORM NO. 56043121 - Advenger / 2800ST, 3400ST / BR 755, BR 855
ELECTRICAL SYSTEM

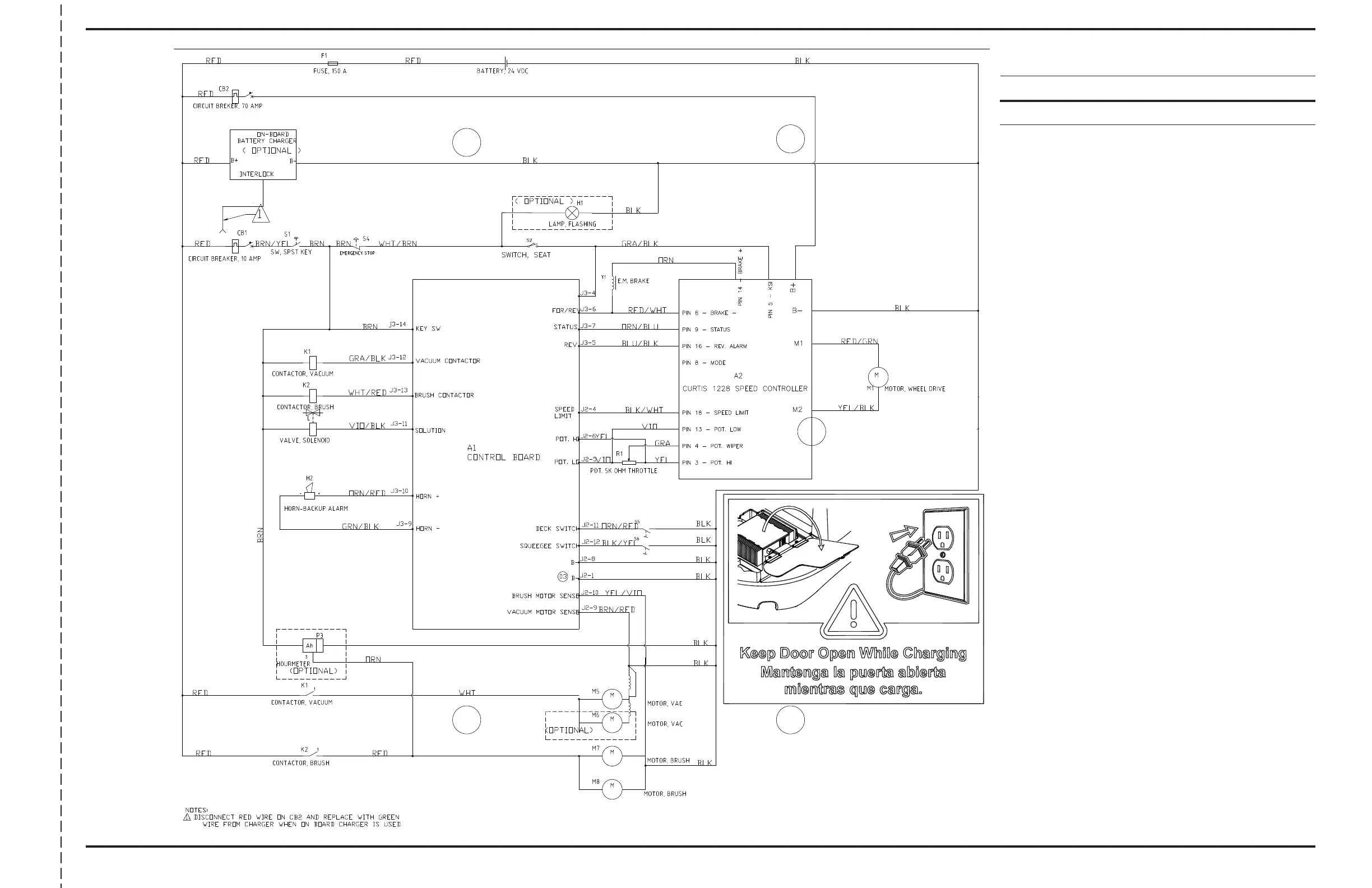

WIRING DIAGRAM / SCHEMATIC (2800ST, 3400ST)
Item Ref. No. Qty Description
A1 56601566 1 Control PCB Assy
A2 56601061 1 Speed Control
BAT N/A Battery
F1 56412089 1 Fuse, 150 Amp
CB1 56454429 1 Circuit Breaker, 70 Amp
CB2 56507644 1 Circuit Breaker, 10 Amp
H1 56307166 1 Beacon, Warning (optional)
H2 56412177 1 Horn/Backup Alarm
K1 56601183 1 Contactor 24v, 100 Amp
K2 56412179 1 Contactor 24v
L1 56601064 1 Solenoid Valve Assy
M1 56601050 1 Motor / Drive Wheel
M5 56601132 1 Motor, Vac 24vdc
M6 56601132 1 Motor, Vac 24vdc (optional)
M7 56601134 2 Motor Gearbox Assy
M8 56601134 2 Motor Gearbox Assy
R1 N/A 1 Part of 56601052
S1 56303553 1 Key Switch
* 56303526 A/R Replacement Key Set
S2 7-82-00050 1 Squeegee Switch
S4 56407130 1 Disconnect, Emergency
S5 56305053 1 Deck Switch
S6 56601160 1 Squeegee Switch
Y1 56601507 1 Brake, Electromagnetic
56315124 1 Charger, On-Board 24v TSBUS2008-984
BAT
WIRING DIAGRAM / SCHEMATIC (2800ST, 3400ST)
