Know Your Machine 14Service Manual – Advenger, 2800ST, 3800ST, BR 755, BR 855
KNOW YOUR MACHINE

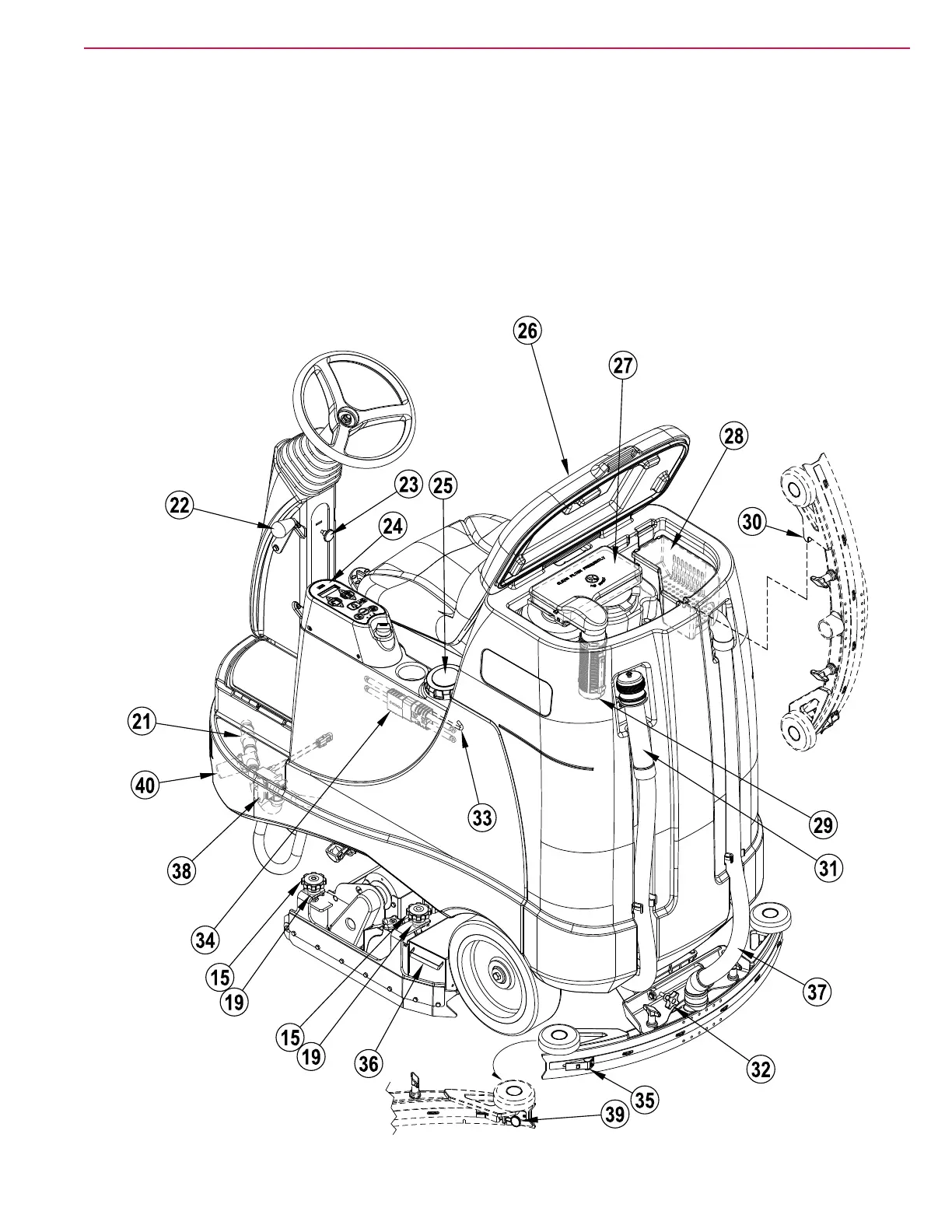

Machine Rear LH View
21 Solution Shutoff Valve
22 Squeegee Raise/Lower Lever (ST models only)
23 Steering Wheel Tilt Adjust Knob
24 Control Panel
25 Solution Tank Fill Cover
26 Recovery Tank Cover
27 Vacuum Motor Filter Housing
28 Strainer Basket (optional on ST models)
29 Recovery Tank Shutoff Float
30 Squeegee Storage Hook
31 Recovery Tank Drain Hose
32 Squeegee Tilt Adjustment Knob
33 Seat Prop-Rod
34 Machine Battery Connector
35 Rear Squeegee Blade Removal Latch
36 Hopper (Cylindrical models only)
37 Recovery Hose
38 Solution Solenoid Valve
39 Front Squeegee Blade Removal Thumb Nut
40 Solution Filter
