BURNISHING SYSTEM
DUST SHROUD EDGING REPLACEMENT
1 See Figure 3. Remove existing Edging (A) by pulling it away from the Shroud (B).
2 To install start at the rear of the Shroud (B) with one end of the new Edging (A) so that the seam is hidden. Push “U” channel onto Shroud
(B), work edging assembly around Shroud (B).
3 Check that Edging (A) “U” channel is fi rmly in place all around Shroud (B). NOTE: Pinch the “U” channel every 3 to 4 inches with a vise-
grips to ensure it is securely fastened to the shroud.

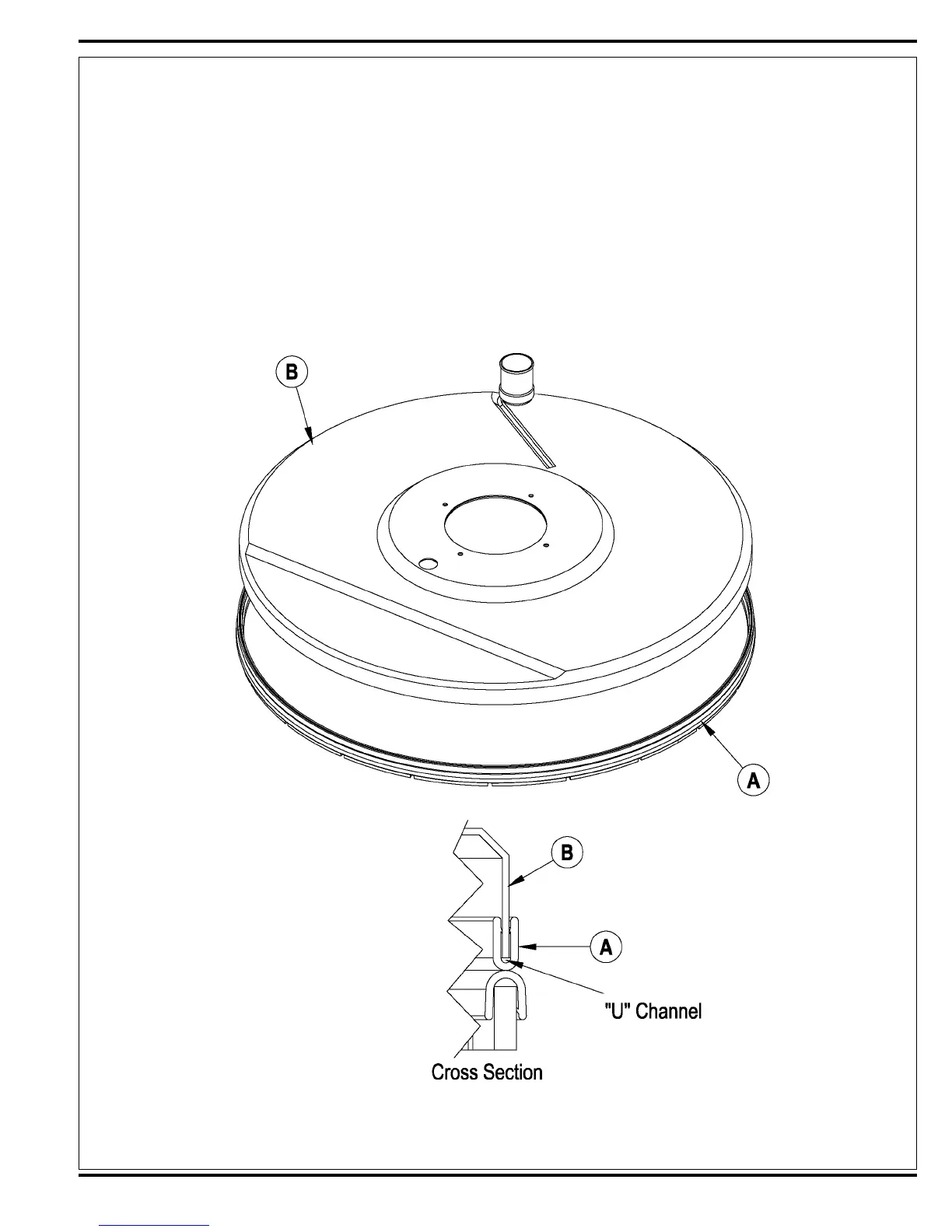

FIGURE 3
