FORM NO. 56043107 - Advolution
™
2710 / UHR 70-1700 - 19
BURNISHING SYSTEM
PAD DRIVE DECK LEVEL ADJUSTMENT
NOTE: Install a new pad before performing this adjustment.
1 Put the pad drive deck in the down position.
2 Briefl y run the pad drive motor to get a pattern on the fl oor.
CAUTION!
Do not run pad motor for an extended period without moving machine.

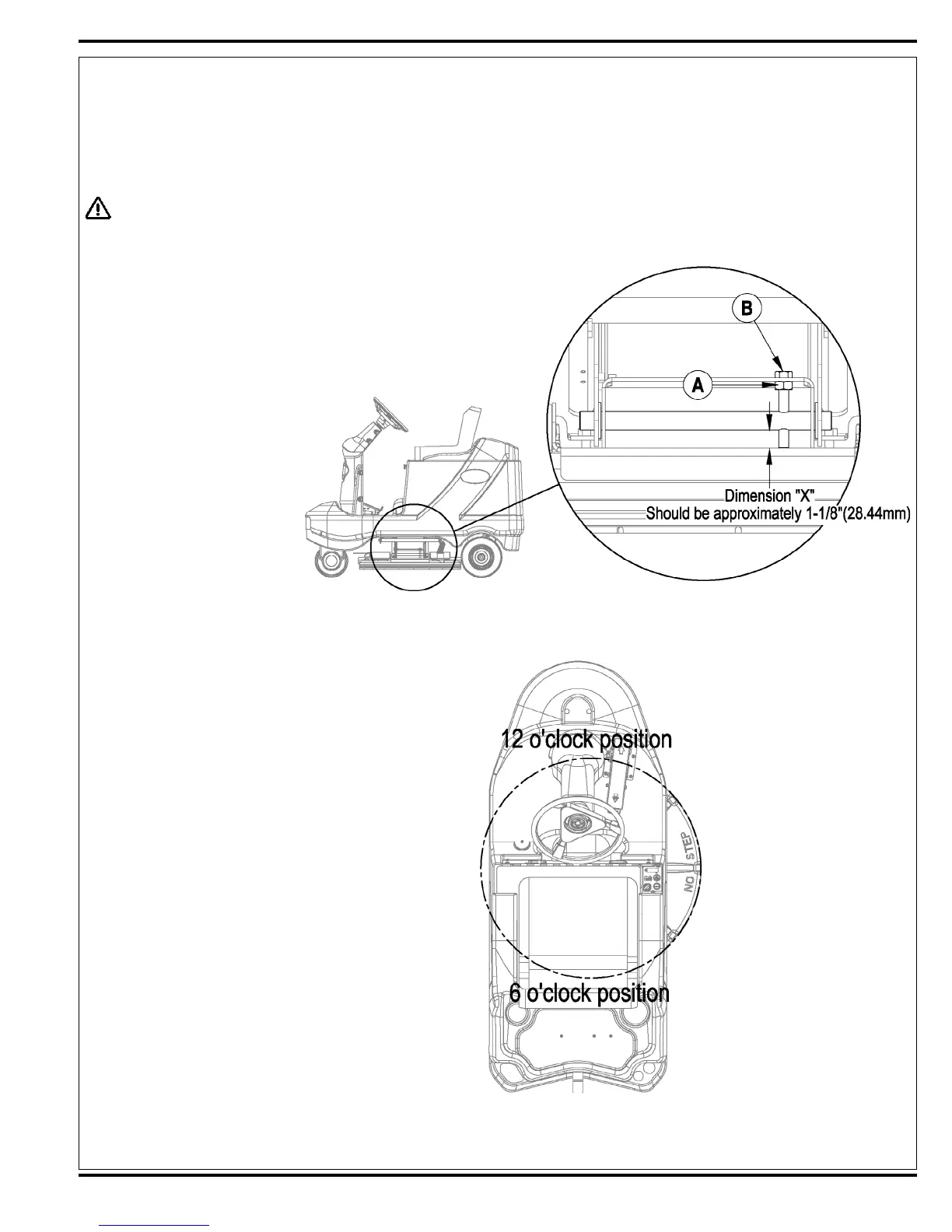

Front to Back Pad Contact Adjustment – See Figure 5.
1 Loosen Lock Nut (A) and turn the Adjustment Screw (B) clockwise to
increase or counter-clockwise to decrease Dimension “X”.
Increasing Dimension “X” will increase the pad pressure to the front of the
pad assembly at the 12 O’clock position.
Decreasing Dimension “X” will increase the pad pressure to the rear of the
pad assembly at the 6 O’clock position.
FIGURE 5
NOTE: As general rule the pad should
be approximately 3/8” higher at the 12
o’clock position than at the 6 o’clock
position.
