Nilfisk-Advance Advolution 2710 Service Manual

28 - FORM NO. 56043107 - Advolution
™
2710 / UHR 70-1700
WHEEL DRIVE SYSTEM
R1 Voltage Values
0 – 2.5V Reverse
2.5 – 5V Forward

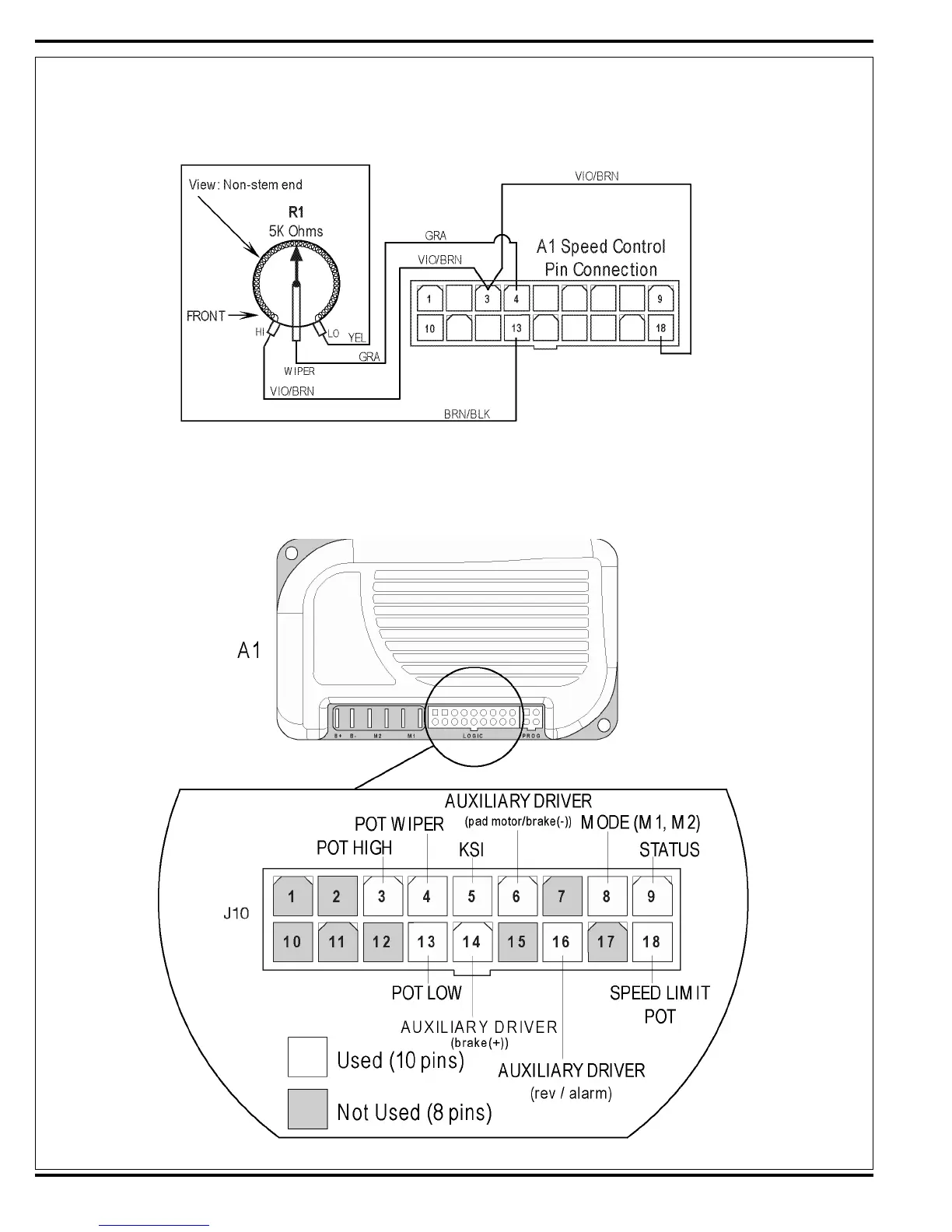

This drawing shows additional controller input circuit detail. The R1 pot is shown in the neutral position. Resistance is measured between pot low
and pot wiper.
FIGURE 3
FIGURE 4
