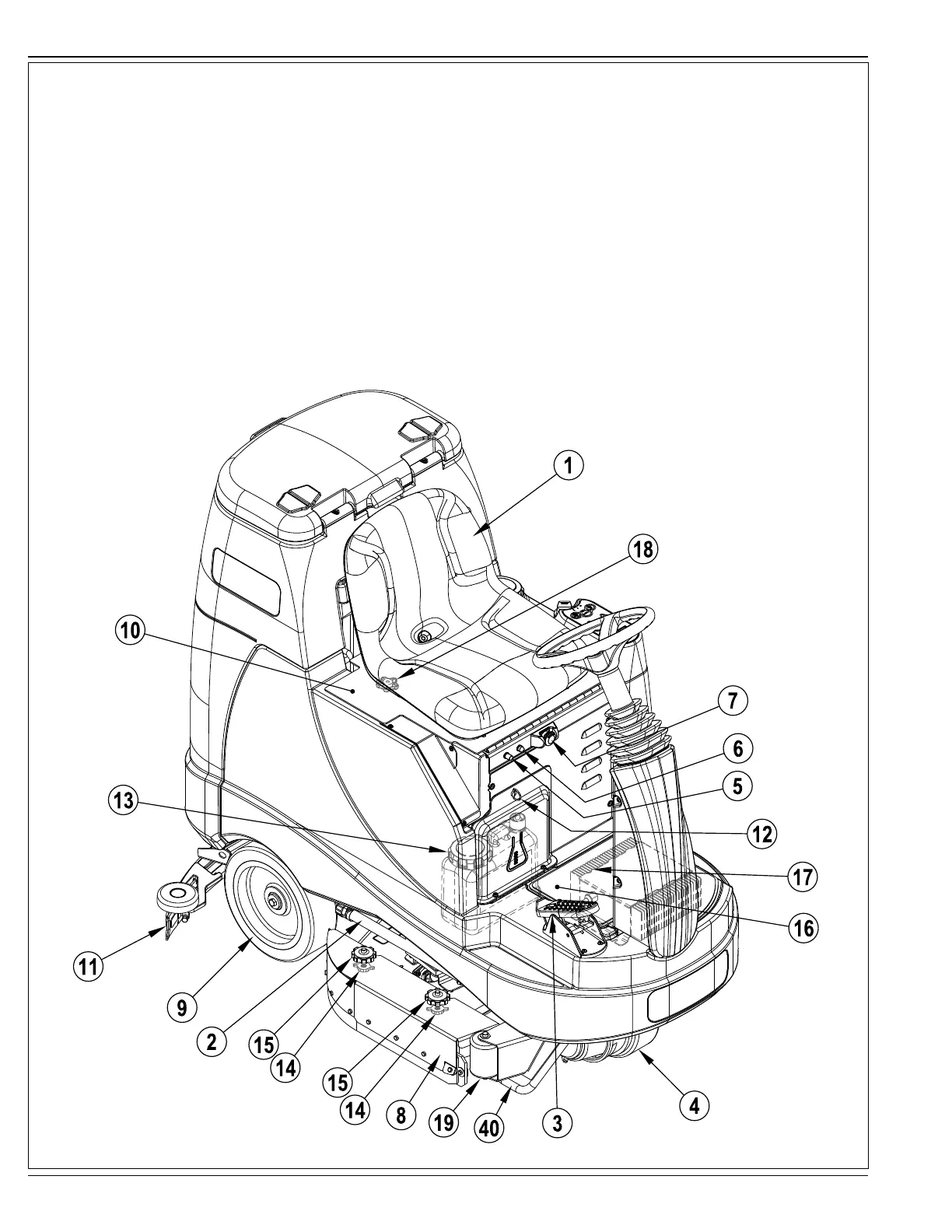

KNOW YOUR MACHINE

As you read this manual, you will occasionally run across a bold number or letter in parentheses - example: (2). These numbers refer to an item shown on these

pages unless otherwise noted. Refer back to these pages whenever necessary to pinpoint the location of an item mentioned in the text. NOTE: Refer to the

service manual for detailed explanations of each item illustrated on the next 3 pages.

1 Operator’s Seat

2 Solution Tank Drain Hose

3 Drive Pedal, Directional/Speed

4 Drive Wheel

5 Drive Wheel Circuit Breaker (70 Amp)

6 Control Circuit Circuit Breaker (10 Amp)

7 Emergency Stop

8 Scrub Deck

9 Rear Wheel

10 Battery Compartment (under seat)

11 Squeegee Assembly
