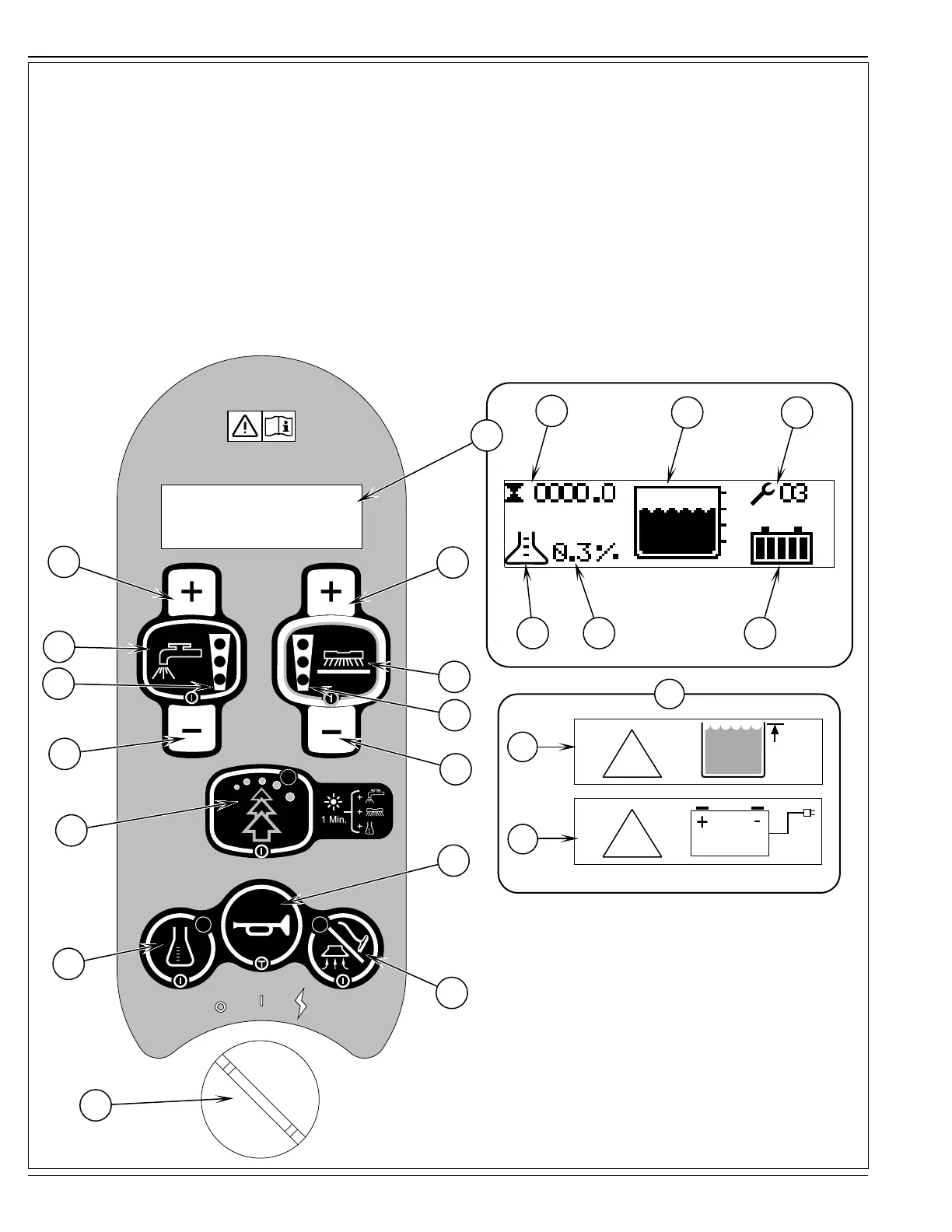

CONTROL PANEL
A Key Switch
B Solution Increase Switch
C Solution ON/OFF Switch
C1 Solution Flow Indicators (Normal, Heavy & Extreme)
D Solution Decrease Switch
E Detergent ON/OFF Switch
F Display
F1 Hour Meter
F2 Solution Tank Level Indicator
F3 Fault Codes
F4 Detergent Indicator (if so equipped)
F5 Detergent Percentage Indicator
F6 Battery Indicator
F7 Recovery Tank FULL Indicator
F8 Battery Low Indicator
G Scrub Pressure Increase Switch
H Scrub ON/OFF Switch
H1 Scrub Pressure Indicators (Normal, Heavy and Extreme)
I Scrub Pressure Decrease Switch
J EcoFlex Switch
K Horn Switch
L Vacuum/Wand Switch
!
!
F
F7
F8
A
C
B
C1
D
J
E
G
H
H1
I
K
L
F
F1
F2 F3
F4 F5 F6
