A-8 / ENGLISH
A-8 - FORM NO. 56041743 - BR755, BR855

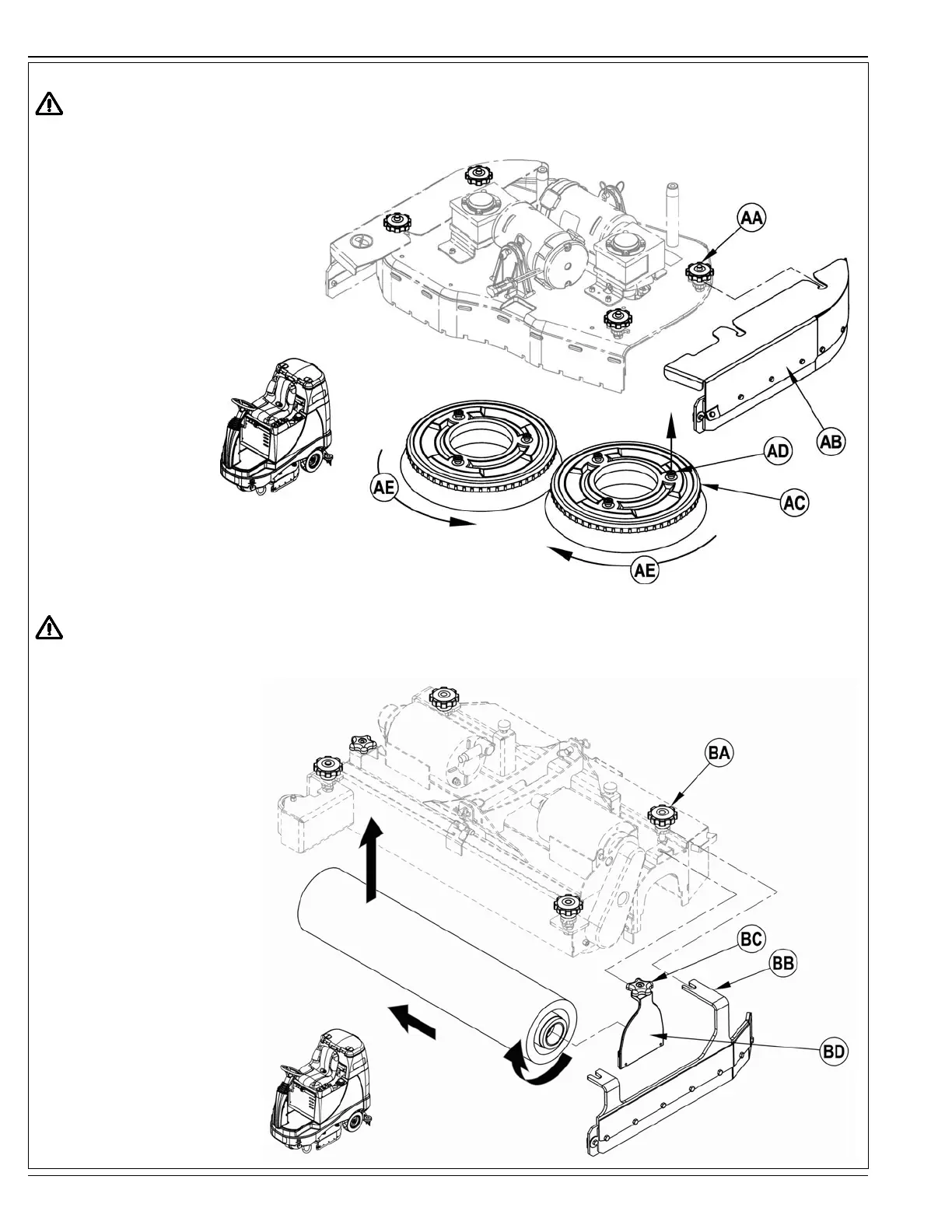

INSTALL THE BRUSHES (DISC SYSTEM)
CAUTION !
Turn the key switch off (O) and remove the key, before changing the brushes, and before opening any access panels.
INSTALL THE BRUSHES (CYLINDRICAL SYSTEM)
CAUTION !
Turn the key switch off (O) and remove the key, before changing the brushes, and before opening any access panels.
1 Make sure the Scrub Deck
is in the RAISED position.
Make sure the Key Switch
(A) is off (O).
2 See Figure 2. Remove
both side skirt assemblies.
NOTE: The skirts are
held in place by two large
Knobs (AA). Loosen these
knobs and slide the Skirt
Assemblies (AB) slightly
forward and then off of the
Scrub Deck.
3 To mount the Brushes (AC)
(or pad holders) align the
Lugs (AD) on the brush with
the holes on the mounting
plate and turn to lock in
place (turn the outside edge
of brush towards the front of
machine as shown (AE)).
FIGURE 2
1 Make sure the Scrub Deck is in the
RAISED position. Make sure the Key
Switch (A) is off (O).
2 See Figure 3. Remove both side
skirt assemblies. NOTE: The skirts
are held in place by two large Knobs
(BA). Loosen these knobs and then
slide the Skirt Assemblies (BB) off of
the Scrub Deck.
3 Loosen the Black Knobs (BC) on
top of the Idler Assemblies (BD) and
remove the assembly
4 Slide the brush into the housing, lift
slightly, push and turn until it seats.
Re-install the Idler Assemblies (BD)
and Skirt Assemblies (BB).
FIGURE 3
