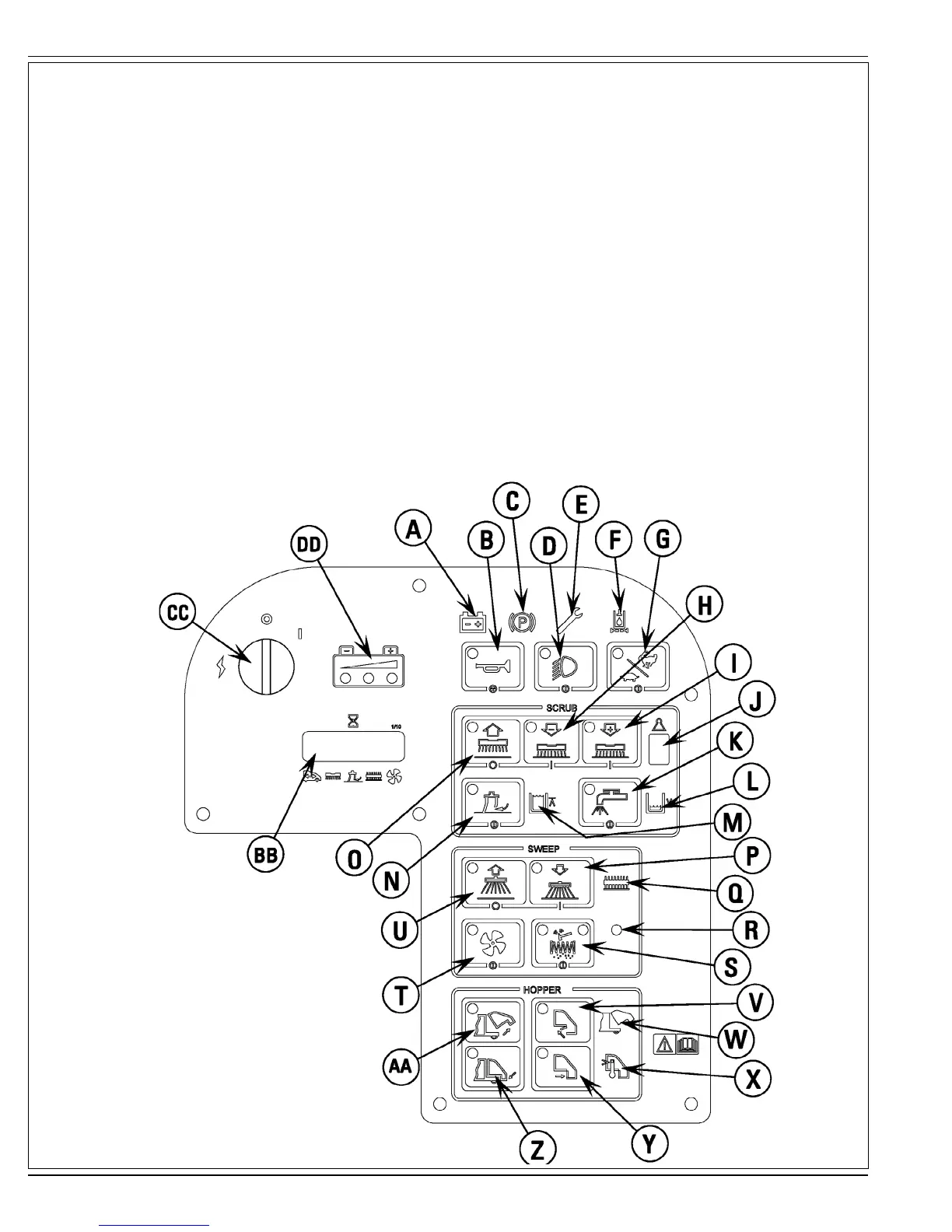

CONTROL PANEL
A Low Battery Indicator
B Horn
* Horn ON Indicator
C Parking Brake Indicator (not used)
D Headlights
* Headlight ON Indicator
E Machine Needs Service Indicator
F Hydraulic Filter Plugged Indicator
G Speed Switch
* Speed Switch Indicator
H Scrub Pressure Decrease Switch
* Scrub Pressure Decrease Indicator
I Scrub Pressure Increase Switch
* Scrub Pressure Increase Indicator
J Scrub Pressure Display
K Solution Switch
* Solution ON Indicator
L Solution Tank Empty Indicator
M Recovery Tank Full Indicator
N Vacuum System Switch
* Vacuum System ON Indicator
O Scrub System OFF Switch
* Scrub System Indicator
P Side Broom ON
* Side Broom ON Indicator
Q Main Broom ON Indicator
R Light Sensor
S Shaker Switch
* Shaker ON Indicator (left)
* Dust Filter Plugged Indicator (right / optional)
T Dust Control Switch
* Dust Control ON Indicator
U Side Broom UP/OFF Switch
* Side Broom OFF Indicator
V Open Dump Door Switch
* Open Dump Door Indicator
W Hopper Open Indicator
X Hopper Overtemp Indicator
Y Close Dump Door Switch
* Close Dump Door Indicator
Z Lower Hopper Switch
* Lower Hopper Indicator
AA Raise Hopper Switch
* Raise Hopper Indicator
BB Hour Meter Display
CC Main Power Switch
DD Battery Condition Indicator
