A-8 / ENGLISH
A-8 - FORM NO. 56041776 - CR 1100, CR 1200
BATTERY INSTALLATION
See Figure 1 & 2. The battery required for this machine is sold separately. The maximum battery weight for this machine is 1,875 lbs (850 kg);
the minimum battery weight is 1,400 lbs (635kg). For proper battery installation, please consult your Nilfi sk Industrial Dealer. DO NOT attempt
to install the battery with an overhead hoist or forklift; it can only be installed with a battery cart. Connect the connector plug (A) on the battery to
the machine plug behind the steering wheel. Make sure the battery is fi rmly seated against the End Brace (B) on the driver’s side of the battery
compartment. Reinstall the battery Stop Plate (C) on the left side of the compartment and snug up the Bumpers (D) so the battery cannot slide
from side-to-side. NOTE: The Battery Disconnect Tab (E) has to be assembled to the Battery Connector Plug (A) on the battery.
WARNING!
Battery weight in excess of 1,875 lbs (850 kg) or below 1,400 lbs (635kg) may cause the premature failure of parts including the
tires, and may result in decreased stability and control, which could cause personal injury or death and/or property damage. Use of a
battery in excess of the weight limit will void the warranty.
IMPORTANT!
Follow instructions packed with the battery and charger before charging the battery. Read the instructions for Charging the Battery in
the Maintenance section of this manual.

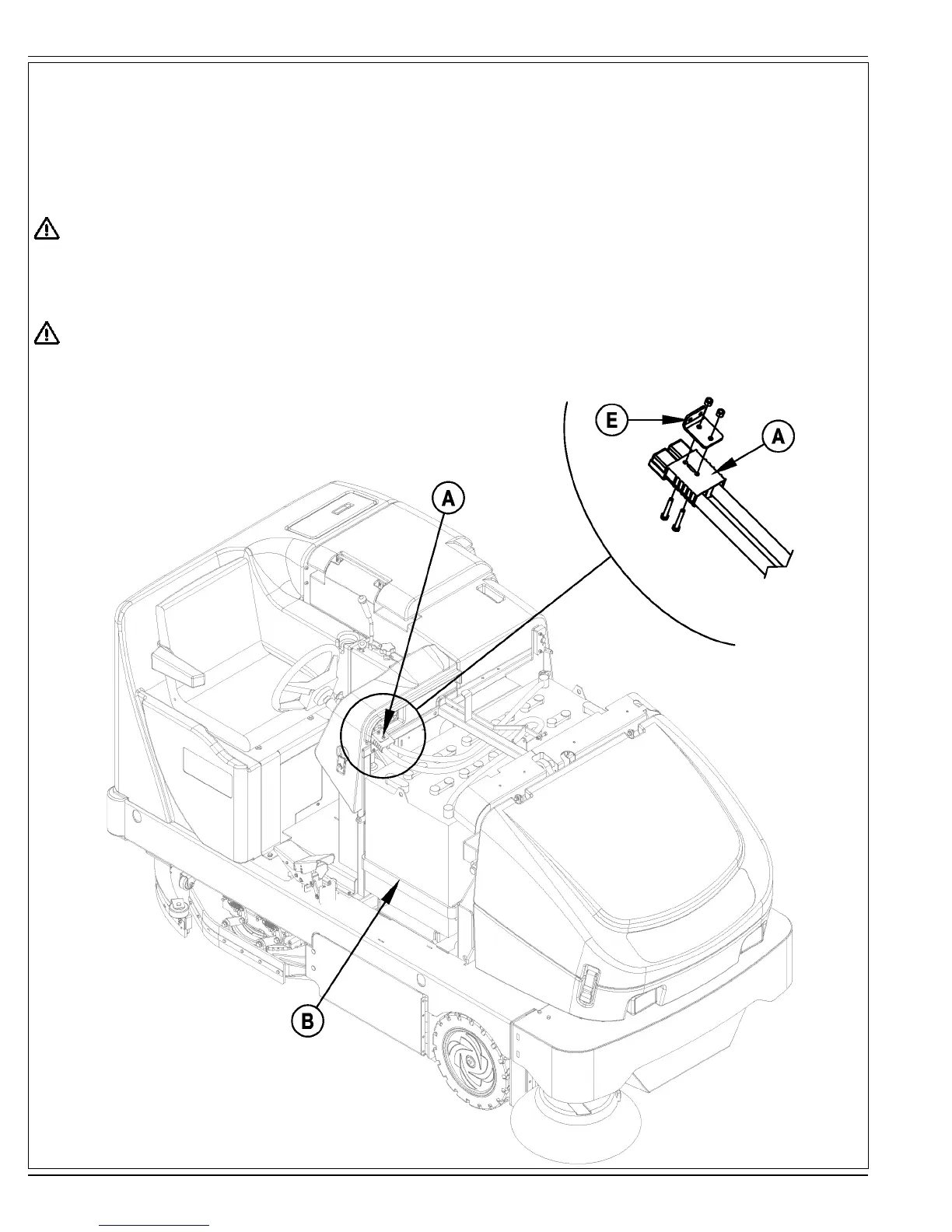

FIGURE 1
To Next Page
