A-10 / ENGLISH
A-10 - FORM NO. 56041980 - CS7000

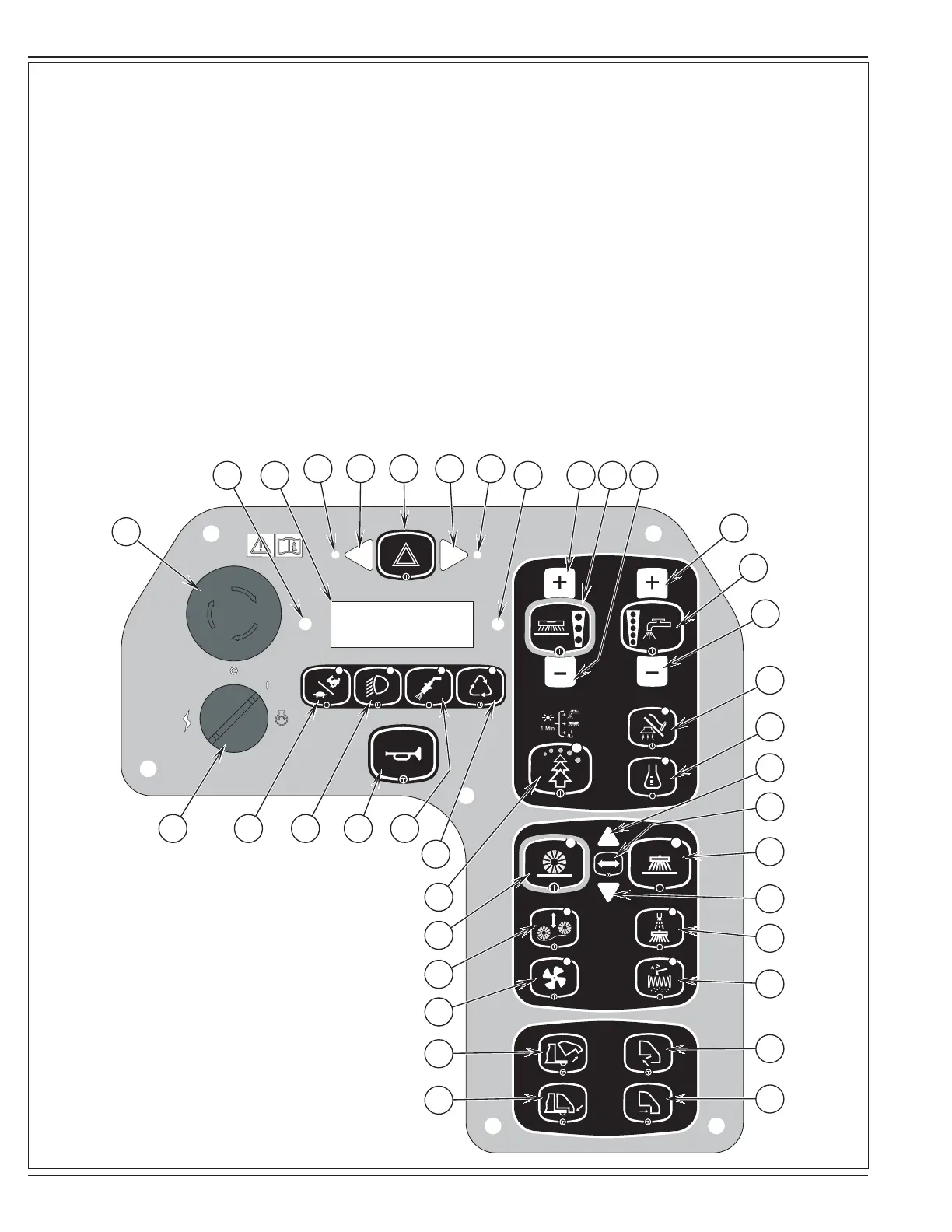

CONTROL PANEL
A Key Switch
B Emergency Stop
C LCD Display
D Left Turn Indicator
E Left Turn Signal
F Hazard Flasher
G Right Turn Signal
H Right Turn Indicator
I Attention Indicator
J Warning Indicator
K Speed Switch
L Headlight Switch
M Horn Switch
N High-Pressure Wash Switch (optional see IS56090038)
O Extended Scrub Switch (optional see IS56090061)
P Burst of Power Switch (EcoFlex™ only)
Q Scrub Pressure Increase
R One-Touch™ Scrub Switch
S Scrub Pressure Decrease Switch
T Solution Flow Increase Switch
U Solution Switch
V Solution Flow Decrease Switch
W Vacuum/Wand Switch (see IS56090054)
X Detergent Switch
Y One-Touch™ Sweep Switch
Z Broom Height Raise Switch
AA Broom Select Switch
BB Broom Height Lower Switch
CC Side Broom Switch
DD DustGuard™Spray Switch
EE Filter Shaker Switch
FF Dust Control Fan Switch
GG Main Broom Float Switch
HH Hopper Raise Switch
II Hopper Lower Switch
JJ Hopper Door Open Switch
KK Hopper Door Close Switch
A
B
I C
D E F G H
J
K L M
O
N
P
Q R S
T
U
V
W
X
Y
Z
AA
CC
BB
DD
EE
JJ
KK
GG
FF
HH
II
