ENGLISH / A-9
FORM NO. 56041980 - CS7000 - A-9

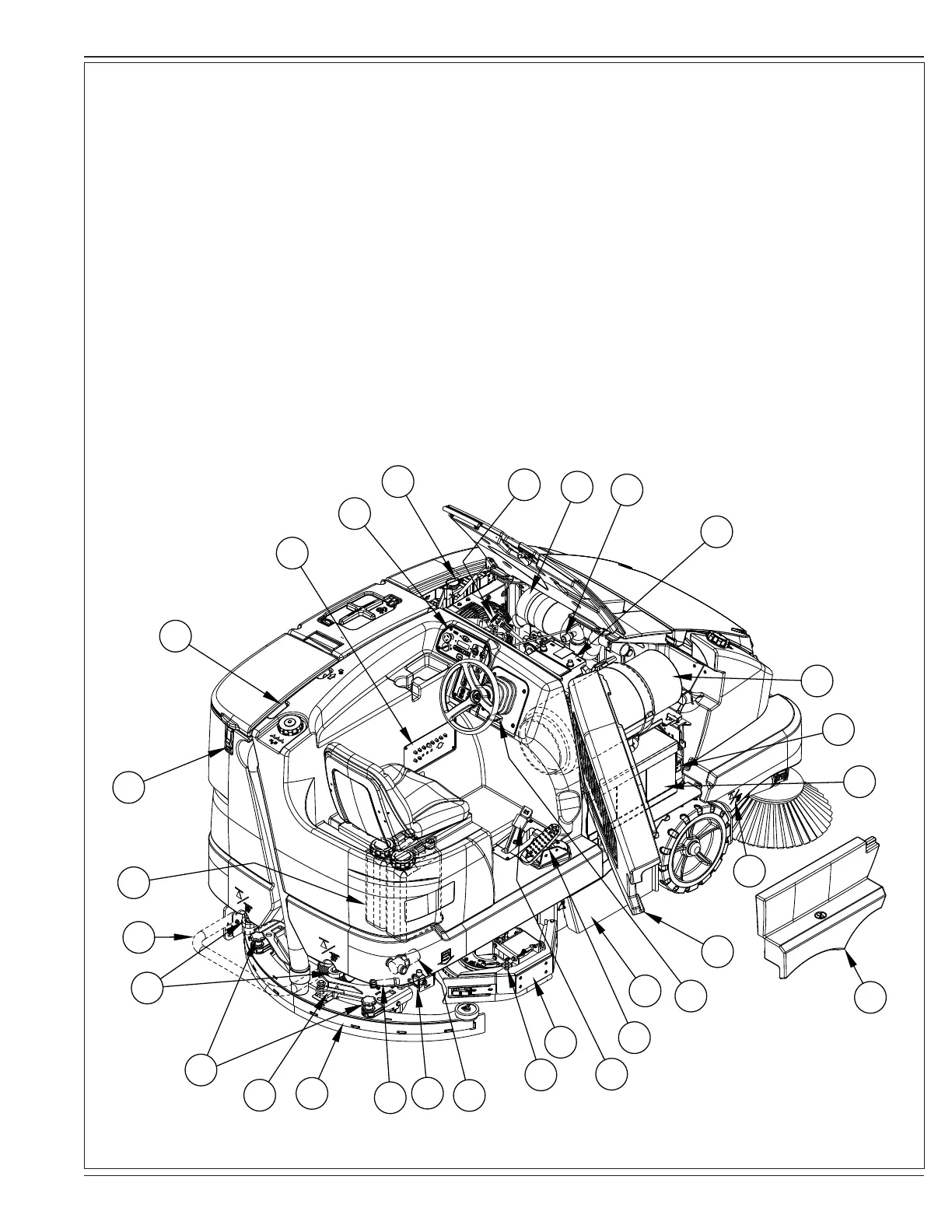

KNOW YOUR MACHINE (CONTINUED)
24 Recovery Tank Lid Latch
25 Recovery Tank Tip-Out Grip
26 Circuit Breaker Panel (see troubleshooting)
27 Control Panel
28 Radiator Cap
29 Air Filter Service Indicator
30 Engine Starting Battery (LPG & Diesel models)
31 LPG Fuel Tank (LPG models)
32 Battery Pack
33 Jack Point / Tie Down Point Location
34 Lower Cover
35 Right Side Door
36 Broom Access Door
37 Drive Pedal, Directional/Speed
38 Brake Pedal/Parking Brake
39 Right Scrub Skirt Assy
40 Edge Guard Retainer Knob
41 Solution Filter
42 Solution Shut-Off Valve
43 Solution Tank Drain Hose
44 Squeegee Removal Knobs
45 Squeegee Assembly
46 Squeegee Tilt Adjustment Handle
47 Detergent Cartridges (EcoFlex™ models only)
48 Engine Air Filter
49 Hydraulic Oil Reservoir
50 Engine Oil Dipstick (LPG & Diesel models)
53 Steering Wheel Tilt Adjust Lever
57 Rear Squeegee Guard (optional)
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
33
47
50
48
49
53
57
To Next Page
