ELECTRICAL SYSTEM
ENGLISH
SERVICE MANUAL
108
909 6756 000(5)2010-03
BA 451 / BA 451D / BA 531 / BA 531D / BA 551 / BA 551D / BA 551CD / BA 611D
CA 451 / CA 531 / CA 551
CS
M1
M2
BAT
EV1
C1
HM
CH
F4
ES2
F1
C2
EB1
ES1
F2
S301577

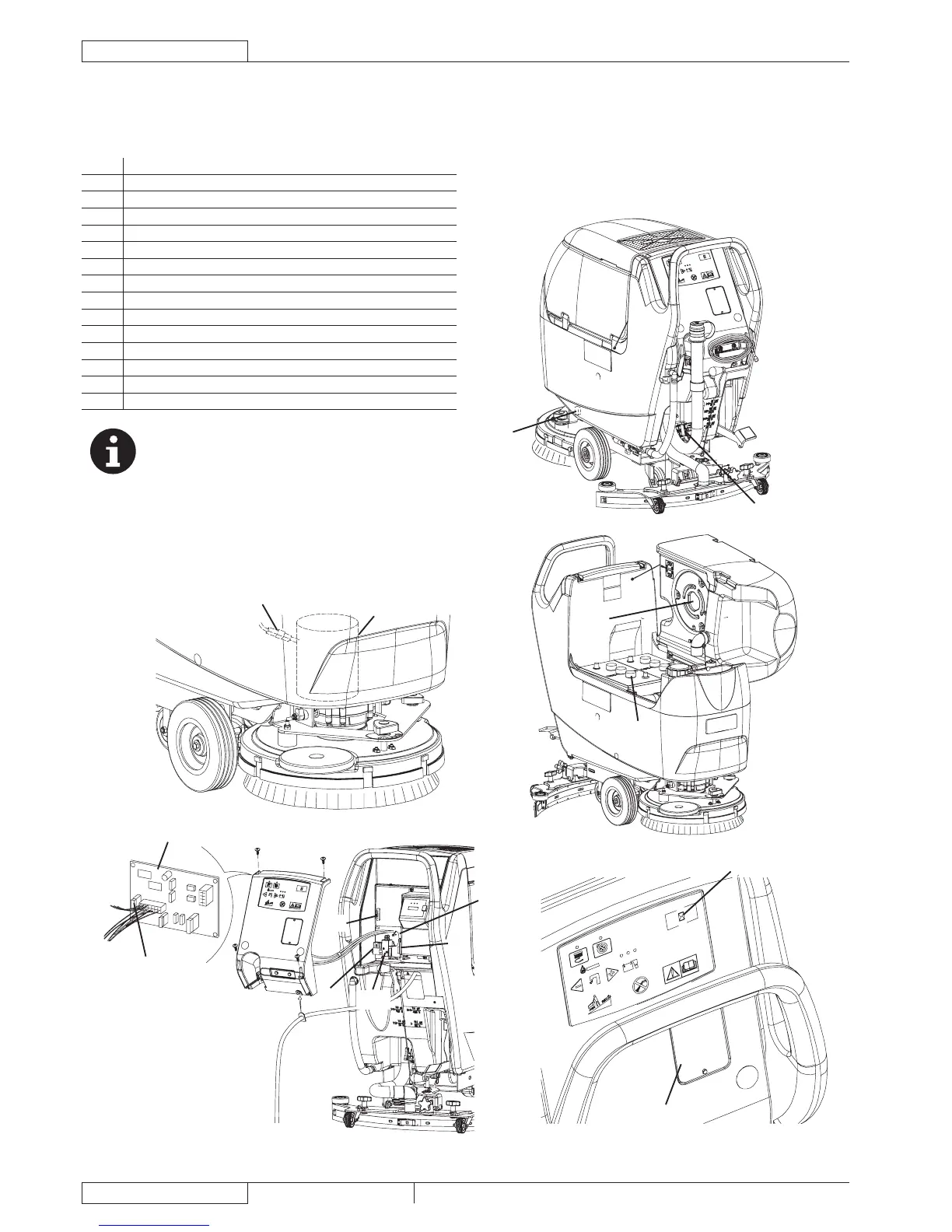

COMPONENT LAYOUT (For BA 451, BA 531, BA 551)
Key:
BAT 24 V battery
C1 Battery connector
C2 Battery charger connector
CH Battery charger (optional)
CS Deck connector
EB1 Function electronic board
ES1 Brush electromagnetic switches
ES2 Vacuum system relay
EV1 Water solenoid valve
F1 Deck fuse
F2 Vacuum system fuse
F4 Signal circuit fuse
HM Hour counter (optional)
M1 Brush/pad-holder motor
M2 Vacuum system motor
NOTE
Figure showing BA 551
