BRUSHING SYSTEM
ENGLISH
SERVICE MANUAL
66
909 6756 000(5)2010-03
BA 451 / BA 451D / BA 531 / BA 531D / BA 551 / BA 551D / BA 551CD / BA 611D
CA 451 / CA 531 / CA 551
BRUSH MOTOR DISASSEMBLY/ASSEMBLY (For CA 451, CA 531, CA 551)
Disassembly
Remove the deck (see the procedure in the relevant paragraph).1.
At the workbench, remove the screw (A).2.
Remove the hub assembly (B) with a puller.3.
Remove the screws (C).4.
Remove the reduction unit (D) with the relevant wiring harness.5.
Recover the key (E).6.
If necessary, remove the solution hose (E).7.
If necessary, remove the motor wiring harness (G).8.
Assembly
Assemble the components in the reverse order of disassembly.1.
NOTE:

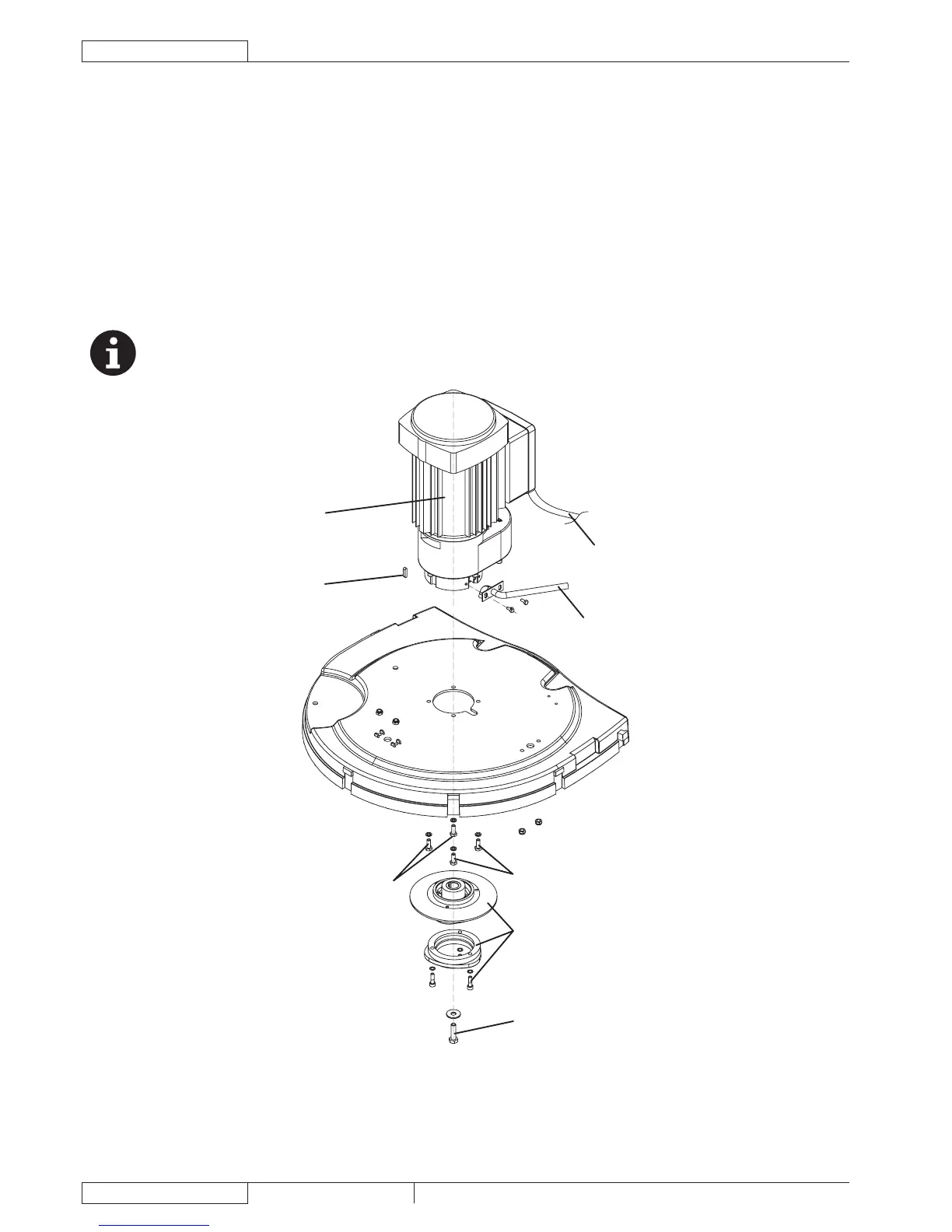

Figure showing CA 551
D
E
F
C
C
B
A
G
S301547
