DEUTSCH BETRIEBSANLEITUNG
10 SC450 - 9099596000

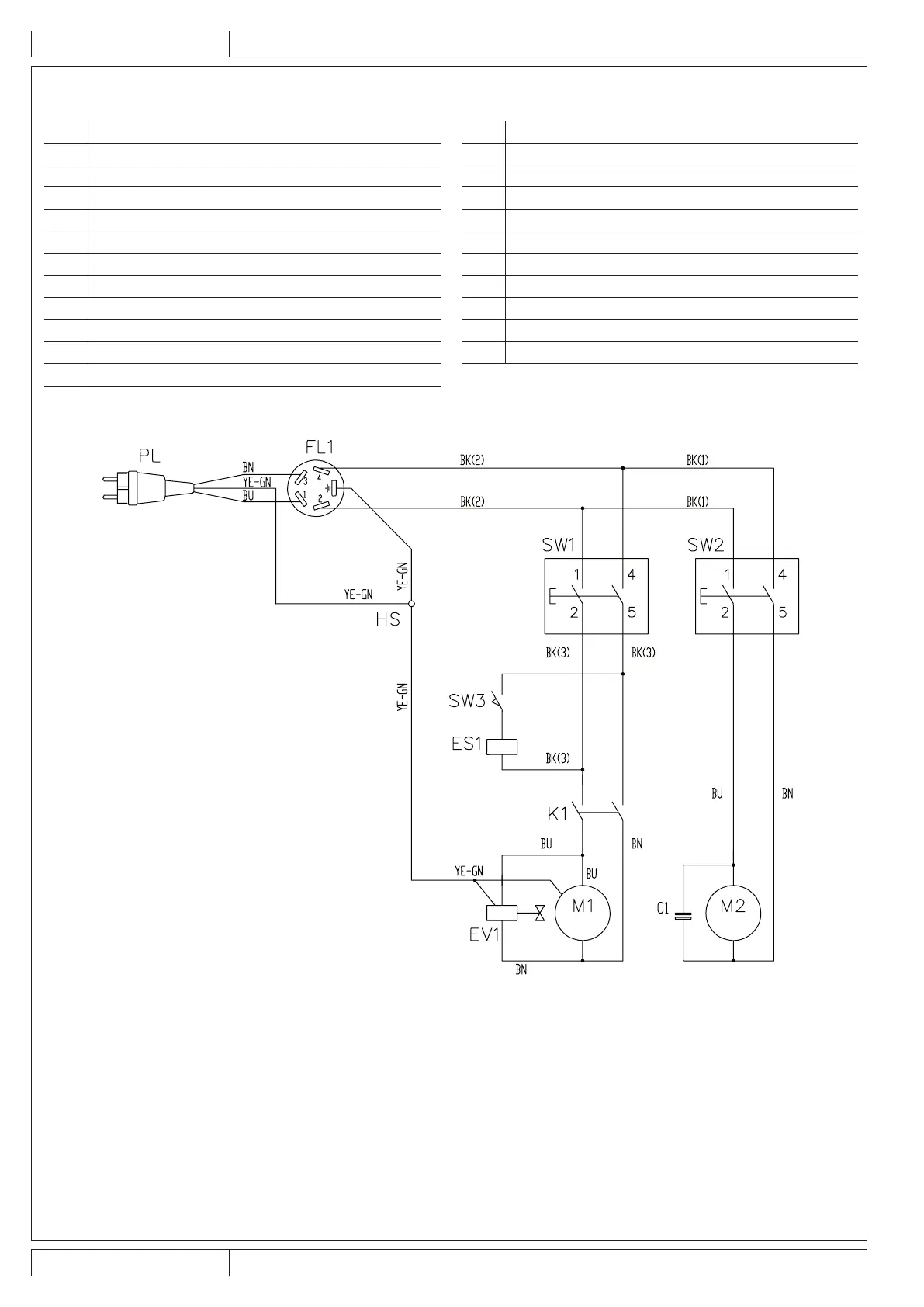

SCHALTPLAN
Legende
C1 Filtrierungskondensator
ES1 Relais Bürsten-/Padhaltermotor
EV1 Elektroventil Reinigungslösung
FL1 Netzlter
FR Maschinenrahmen
HS Erdung
M1 Motor Bürste/Padhalter
M2 Motor Ansauganlage
PL Netzstecker
SW1 Schalter Bürste/Padhalter
SW2 Schalter Ansauganlage
SW3 Taste zum Einschalten der Bürste
Farbcodes
BK Schwarz
BU Hellblau
BN Braun
GN Grün
GY Grau
OG Orange
PK Rosa
RD Rot
VT Violett
WH Weiß
YE Gelb
